Gauge pressure transmitter

The gauge pressure sensor is an instrument that measures the pressure of a gas or liquid relative to atmospheric pressure. This type of sensor is commonly used to monitor and control pressure in industrial processes in the oil & gas, chemical, power generation and water treatment industries.

Picto download Brochure

pressure transmitters FCX-AIV Fuji Electric

Download the brochure and find out how to improve your measurement accuracy with Fuji Electric's relative pressure transmitters .

Download

Benefits of the FCX gauge pressure sensor

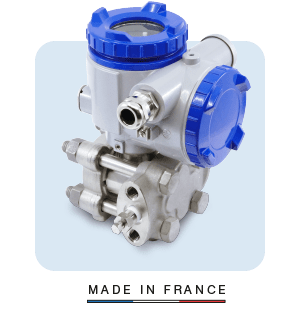

benefits of the fcx gauge pressure sensor

The FKG and FKP high-precision relative pressure transmitters are capable of accurately determining gauge pressure, then sending a corresponding 4-20 mA electrical output signal.

The gauge pressure transmitter uses the most advanced digital signal processing and a silicon micro-capacitive sensor for unrivalled precision, stability and reliability.

  • Precise gauge pressure measurement.
  • Independent of environmental conditions thanks to GyrationTM 4D characterization.
  • Reliable, robust and highly available.

technical advantages gauge pressure sensor

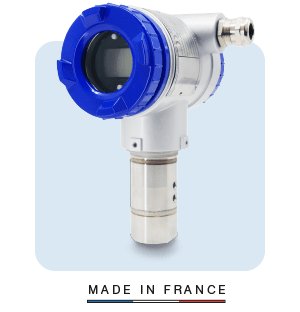

Technical advantages

  1. High precision and reliability
  2. Flexible design for minimum inventory
  3. Minimal environmental influence
  4. HART communication protocols

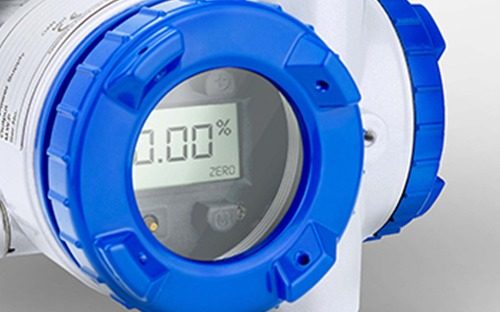

  5. Easy configuration with digital display and push-button control

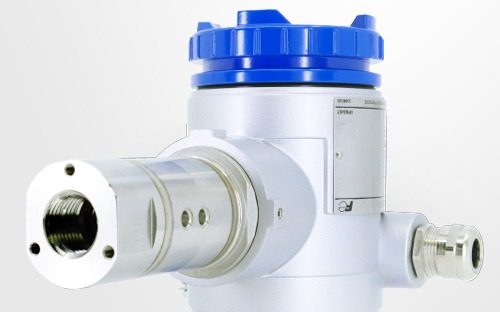

  6. Wide range of process connections
  7. Programmable 4-20 mA output with linearization function
  8. Long-term stability
  9. Version available with diaphragm seals for extreme temperatures from -90 °C to +400 °C
  10. Wide choice of diaphragm materials available (316L stainless steel, Hast C, etc.)
  11. Explosion-proof protection for hazardous areas.

How does the gauge pressure sensor work?

The gauge pressure transmitter measures the process pressure of a gas, steam or liquid in relation to atmospheric pressure. The pressure transmitter is installed on a pipe to measure pressure, or on a tank to measure level by hydrostatic pressure.


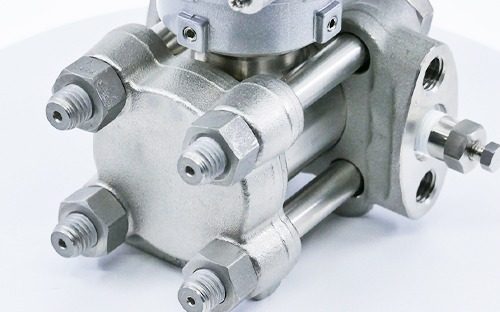

how the gauge pressure sensor works

How does the gauge pressure sensor work?

The gauge pressure sensor comprises a single pressure port to be connected to the process on which pressure is to be measured. This HP high-pressure port is connected to a metal diaphragm.

The low-pressure BP side of the sensor is subject to atmospheric pressure.

The metal diaphragm deforms proportionally and transmits the measured applied pressure via an internal fluid to the micro-capacitive measuring element.

The pressure exerted on this capacitive electronic component will deform it. This deformation changes the system's capacitance value. This value is then converted into an analog 4-20 mA and digital HART signal in accordance with the measured gauge pressure .


What are the advantages of the gauge pressure sensor?

The gauge pressure sensor is less expensive than an absolutepressure transmitter .

The digital gauge pressure sensor has a wider measuring range than its absolute pressure transmitter counterpart. These pressure measurement devices can measure higher pressures.

Not only is the gauge pressure sensor exceptionally precise and accurate, it is also highly reliable and offers great long-term stability.

What are the disadvantages of the gauge pressure sensor?

what are the disadvantages of the gauge pressure sensor?

Relative pressure transmitters have limitations in terms of accuracy compared with absolute pressure transmitters .

This limitation is due to their dependence on atmospheric pressure.

However, a gauge pressure sensor may be sufficient and an affordable solution for most industrial processes.


What is the unit of gauge pressure ?

The standard unit of measurement for gauge pressure is the pascal (Pa).

In most industrial applications, other units such as bar (100,000 pascals (Pa)), pound-force per square inch (psi) (6,894 pascals (Pa)) are used.


What are the pressure ranges of a gauge pressure transmitter?

what are the pressure ranges of gauge pressure transmitters?

The gauge pressure sensor can measure pressures ranging from a few mbar to several bars.

Maximum operating pressure and permissible overpressure vary according to cell range and transmitter model.

This measuring instrument can measure pressure relative to atmospheric pressure as high as 500 bar with excellent accuracy and stability.


What are the applications of the gauge pressure sensor?

The gauge pressure sensor is used in industry to measure the pressure of any liquid, gas or pressurized fluid.

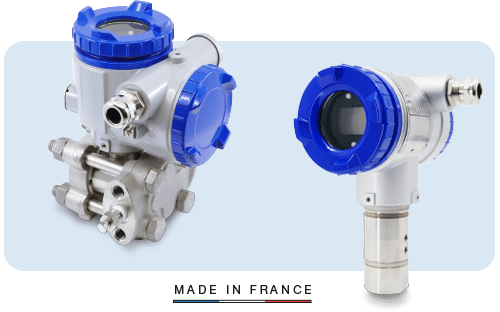

what are the applications for relative pressure transmitters ?

Chemical industry :

Pressure measurement in chemical reactors, tanks and storage containers, pressure control in chemical transfer systems.

Food industry:

Pressure monitoring in food processing and packaging systems, pressure control in pasteurization systems.

Metal industry :

Pressure measurement in high-temperature furnaces, pressure monitoring in melt transfer systems, for example.

Oil and gas industry :

Pressure monitoring in oil and gas transport and storage systems, pressure control in oil and gas drilling and production equipment.

Cement industry :

Pressure verification in manufacturing and materials processing.

Thermal energy:

Pressure monitoring in fluid transport systems. Pressure measurement in air and gas distribution systems.

Nuclear industry:

Measurement of pressure in the primary cooling loop, pressure in the steam generator, in storage tanks to monitor gas pressure. These nuclear sensors have special features to ensure safe operation.


Are you looking for a gauge pressure sensor for your industrial process?

Our high-precision gauge pressure transmitters: the obvious choice for process control!

In today's dynamic and demanding industrial environment, accurate and reliable pressure measurement is not just an option; it's a necessity.

Discover the FKP and FKG Relative Pressure Sensor from Fuji Electric France, where cutting-edge technology meets unrivalled precision. These latest-generation pressure transmitters are designed to deliver precise measurements, offering a range of features including high sensitivity, exceptional longevity, and unrivalled accuracy.

Imagine never having to doubt your pressure measurements. Relative pressure transmitters ensure you maintain optimum operating efficiency, reduce the risk of downtime and significantly improve process safety.

Get in touch with Fuji Electric France today and benefit from expert advice on your industrial instrumentation questions.
