PXF series self-adaptive PID controller

The PXF series self-adaptive PID controller simplifies temperature control. With its self-adjusting PID function, it automates temperature management in industrial processes. This saves energy and reduces production rejects by eliminating temperature fluctuations.

Discover PXF series PID controllers

Picto download Brochure

Fuji Electric temperature controllers

Download the brochure and optimize your thermal control with precise, fast and versatile control adapted to your industrial processes.

Download

PXF series self-adaptive PID controller

Benefits of the new generation of PXF series PID controllers


PID PXF temperature controller features

superior versability and flexibility for a wide range of applications

Superior versatility and flexibility for a wide range of applications

  • The largest color LCD display on the market
  • Sampling speed: 50 ms
  • Processing speed: 100 ms
  • Universal input
  • Minimum footprint: 58 mm deep
  • Multidrop master function (optional)
  • Modbus communication

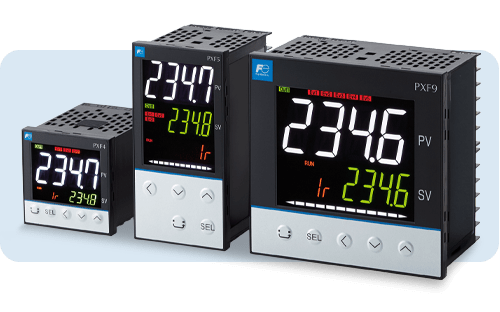

The new range of industrial temperature controllers comes in 3 standard formats:

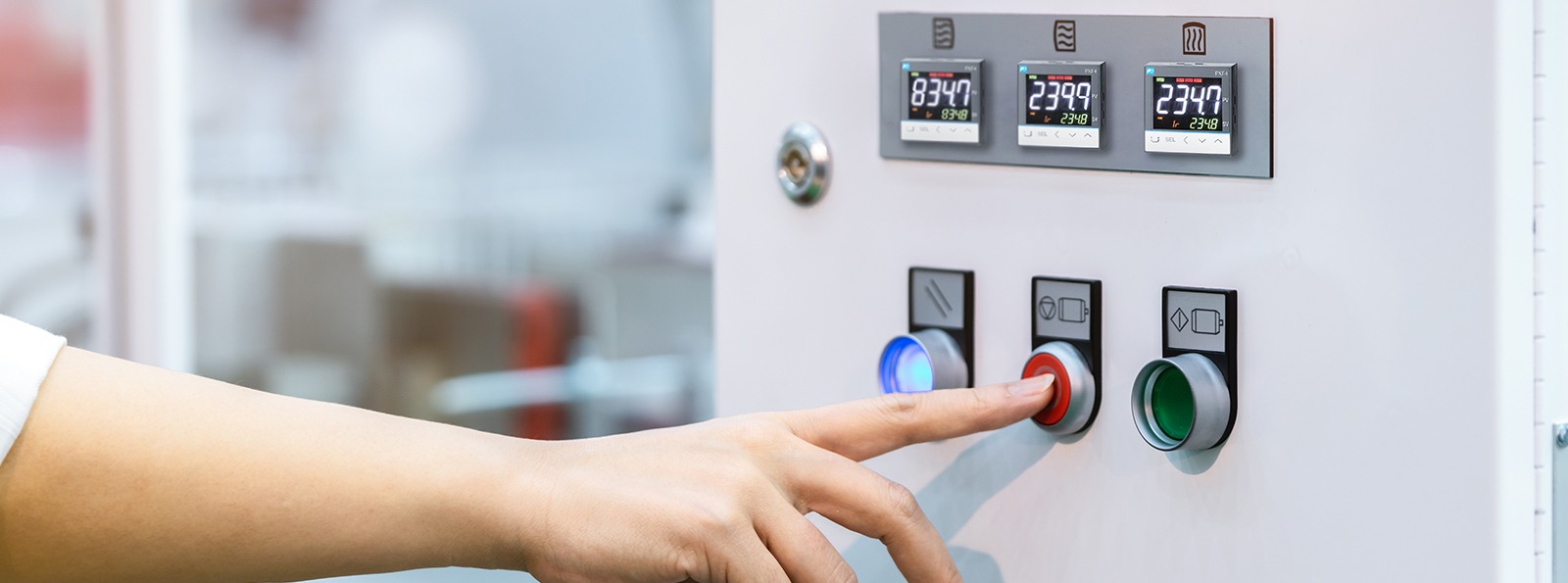

Numerous input/output signal choices :

a wide choice of input/output signals

Numerous choices of PID or TOR control methods:

The PID PXF temperature controller , with its choice of dimensions, inputs/outputs and temperature control types, is the universaltemperature controller to replace your old temperature controllers.


Advanced temperature control functions

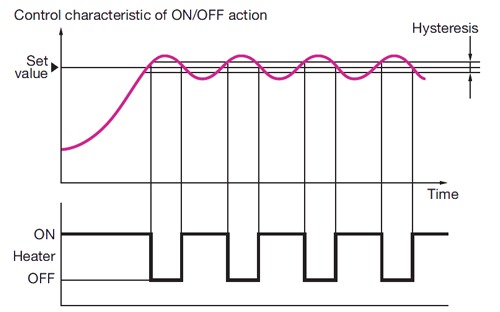

on/off regulation schematic

ON/OFF control

When the measured temperature value (PV) falls below the set value (SV), the temperature controller output is activated and the heating element switches on.

When the measured value exceeds the temperature setpoint, the controller output is deactivated and the heating element switches off.

In this way, the output of the digital controller is activated intermittently according to the setpoint, to maintain a constant temperature.

This temperature control method is known as "On/Off control".

PID control with Autotune function

The temperature controller 's PID parameters are automatically set by the automatic calculation functions.

This temperature controller offers 2 versions of auto-tuning:

The standard version (auto-tuning where the reference is the setpoint)
The "no overshoot" version (auto-tuning where the reference is 10% below the setpoint).

auto adjust pid schematic

Fuzzy logic control with auto-tuning

Thanks to fuzzy logic control, PXF temperature controllers improve response to external disturbances. By continuously monitoring the measured value,
PXF
temperature controllers suppress overshoots without altering the start-up time. In other words, external disturbances can be quickly resolved.

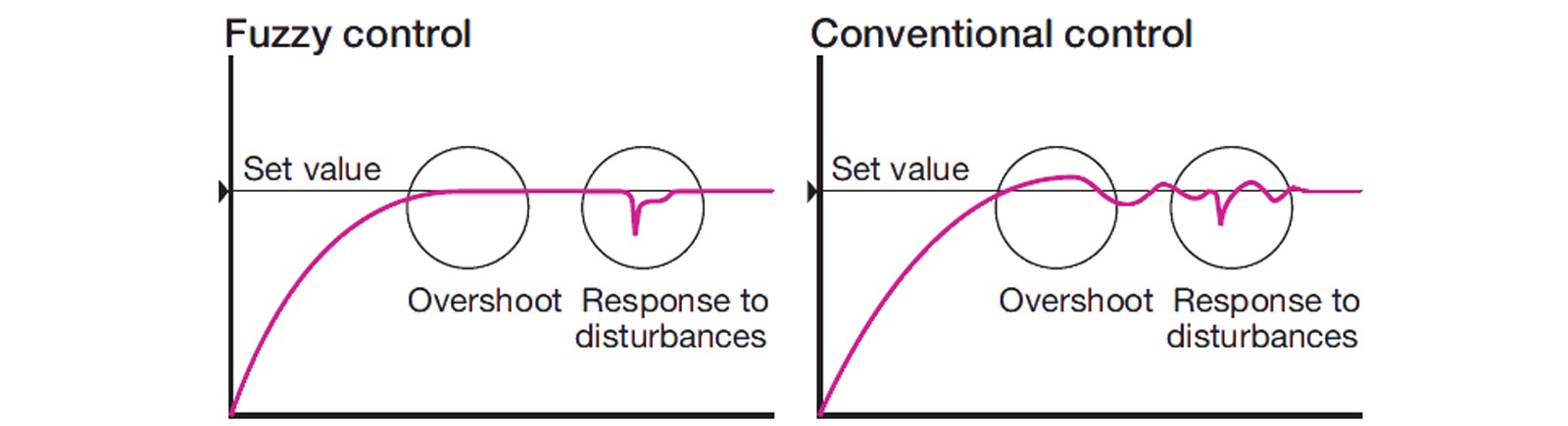

Comparison between fuzzy logic control and conventional control:

fuzzy logic control with auto-tuning

PXF PID controller application examples

The PIDtemperature controller is commonly used in various industrial thermal control systems, where increased precision is essential to guarantee the quality and safety of production processes. The PXF type PID controller offers numerous advantages for precise temperature control in industrial processes, guaranteeing optimum management of production systems. This thermal controller can be installed in temperature control cabinets to facilitate maintenance and centralize control of industrial equipment.

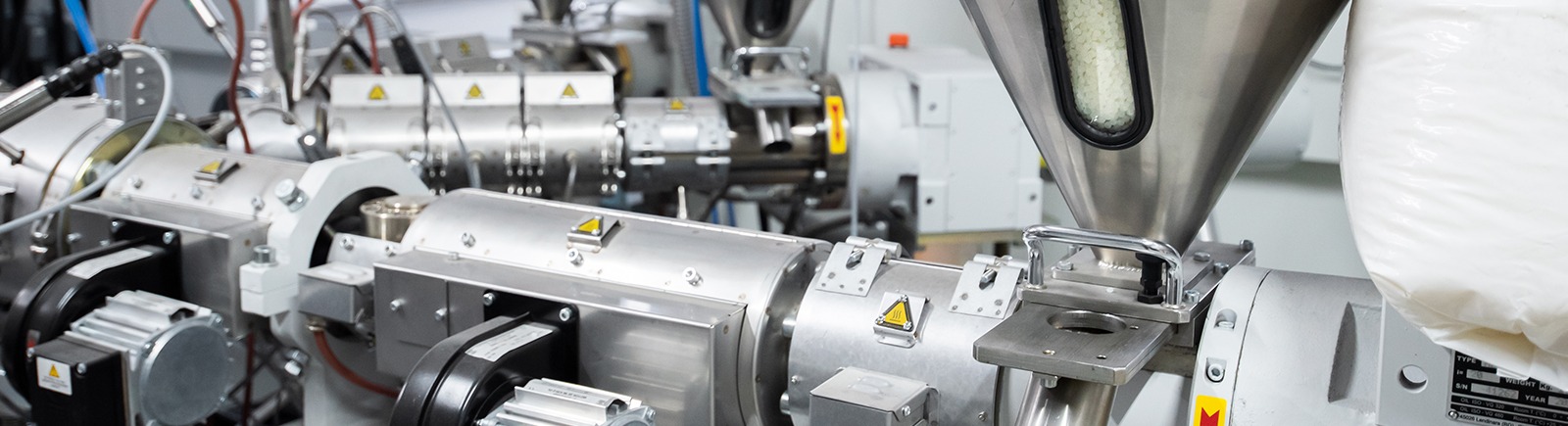

regulation of a plastic injection molding machine

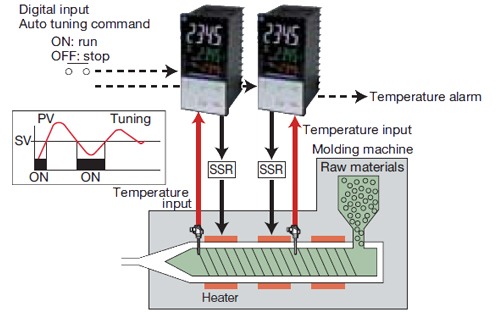

PID temperature control of a plastic injection molding machine

Switching on/off the auto-adaptive function of the temperature controller auto-adaptive function can be switched on/off via an external command, to adapt the PID settings to the specific materials used for plastic injection molding.

For temperature control applications in the plastics industry, the PXF PID temperature controller combines production efficiency and energy savings.

application example
energy savings on a livestock farm

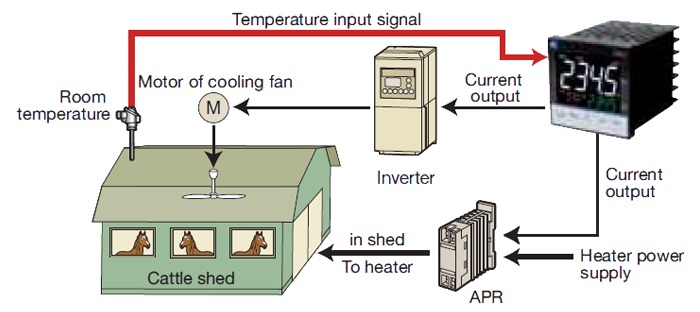

Energy savings on a livestock farm with Fuji Electric PXF controller

  • Process heating and cooling are controlled by a single PID temperature controller with two control outputs.
  • Power consumption during machine operation can be limited by using a variable speed drive to control the fan motor.

Opt for intelligent automation and energy savings with the PXF series PID controller!
