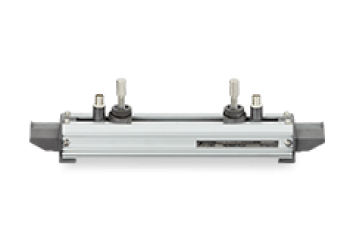

1115,00 € DiscoverSensor - FSSD - diameter 13 to 300 mm for Time Delta-C ultrasonic flowmeter
ref : FSSDFrom

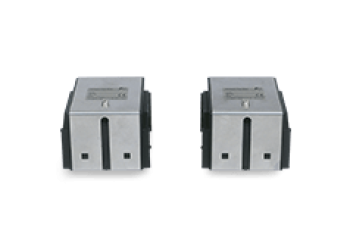

1512,00 € DiscoverSensor - FSSE - diameter 200 to 6000 mm for Time Delta-C ultrasonic flowmeter
ref : FSSEFrom

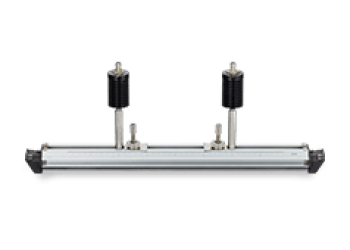

2397,00 € DiscoverHigh temperature sensor - FSSH - diameter 50 to 400 mm for Time Delta-C ultrasonic flowmeter
ref : FSSHFrom

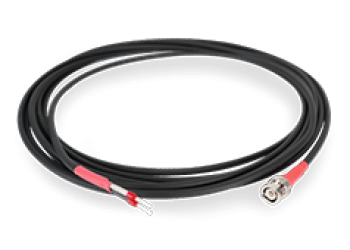

9598,00 € DiscoverCable - FLYA for detector - FSSA - FSSC
ref : FLYAFrom

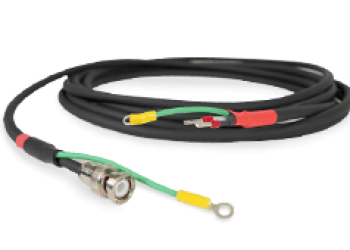

191,00 € DiscoverCable - FLYD for detector - FSSA - FSSC - FSSD - FSSE - FSSH
ref : FLYDFrom
301,00 € DiscoverClamp-on ultrasonic flow meter for steam - Converter - FSJ
ref : FSJFrom
6802,00 € DiscoverDetector - FSX - diameter 50 to 100 mm for clamp-on ultrasonic flow meter for steam - FSJ
ref : FSXFrom
14995,00 € DiscoverFrom
594,00 € DiscoverPortable ultrasonic flow meter - FSC
ref : FSCFrom
6883,00 € DiscoverSensor - FSD - for FSC portable ultrasonic flowmeter with flow velocity profile option
ref : FSDFrom
2126,00 € DiscoverPremium quality in every product
Local service near you
Customer support every step of the way
Seamless technical communication
The ultrasonic flowmeter measures fluid flow velocity using sound waves. It operates using the differential transit time method, where ultrasonic waves are sent through the fluid in a pipe, and the differential transit time is measured....
July 27, 2023
Increasing demand for oil has put additional pressure on existing infrastructures. As a result, companies have been looking for non-intrusive oil meters. Clamp on ultrasonic flowmeters are non-intrusive and can be...
November 12, 2022
Do you want to measure the flow of a liquid precisely, simply and cost-effectively? To monitor an industrial process or calculate your consumption of energy, water or raw materials. But you're having trouble choosing the right soluti...
January 13, 2023
Understand the importance of energy efficiency in buildings, identify the levers of energy efficiency in buildings, learn how to measure and optimize the energy performance of buildings, and discover the role of flowmeters ...
February 24, 2023
Our experts explain the definition, operation and principle and introduce you to the different types of flow meters, their installation and maintenance.
Flow meters measure the flow rate of fluids through pipes and are used in most industrial processes. These field devices offer several different types of technologies. In order to choose the most suitable flow meter type for your particular application, it is important to consider the process conditions, the desired range and accuracy, the fluid cleanliness requirements and whether it will be used for measuring liquids or gases.
A distinction is made between volume flowmeters and mass flowmeters. A volumetric flow meter is a versatile field instrument that measures the quantity of fluid (volume) passing through a given point in a given time. This device measures the volume and flow rate of the fluid flowing through a pipe, typically a liquid flow rate like water flow rate a gas flow rate and a steam flow rate.
Some measuring instruments measure mass flow, i.e. the mass of fluid flowing through a pipe over a given period of time. Conversion between volume flow and mass flow is possible when the density of the fluid is known, and other characteristics such as pressure and temperature are also known.
Note: Flow meters and flow indicators should not be confused, as flow indicators do not measure the value of flow, but simply indicate whether or not fluid is moving in a circuit.
Volumetric flow for measuring the flow of liquids and gases, generally represented by the symbol Q, is normally expressed in m3/h or l/s.
Mass flow is expressed in grams per second (g/s) or kilograms per hour (kg/h). A common mistake made when installing flow meters is to confuse total counters with flow units.
Total flow sensors measure the flow that has passed through the meter since it was first switched on.
Modern flowmeters are manufactured using a wide range of technologies, exploiting a variety of physical phenomena. Their research and selection require the verification of a number of parameters.
Liquid flow meter and water flow sensor, gas flow meter (e.g. air) or steam flow meter are not the same, so you need to consider what will be flowing through the pipe. The choice depends of the flow meter application and types of fluid.
Flow transmitter is capable of measuring volumetric flows, but in some cases, you may wish to measure mass flows as well.
What is the maximum pressure of the fluid flow to be measured?
What is the minimum and maximum temperature of the medium to be measured?
The ability of a flow rate meter to measure temperature depends on the type of flow sensor.
Some flow measurement devices are only suitable for measuring a single temperature, while others can measure a wide range of temperatures.
What are the minimum and maximum flow rates you will be measuring ?
For a low flow rate, the pressure drop involved in installing a flow transmitter is a major cost factor.
Minimising pressure loss means minimising frictional losses in the pipework.
How to choose a flow meter accuracyOne of the main objectives in designing a flow sensor is to minimise frictional pressure drop as much as possible.
The pressure drop across a flow transmitter should be minimal and constant under different operating conditions.
In general, the installation conditions of future flow rate sensors should also be considered.
When a pipe network has bends, valves, diameter changes and other irregularities, disturbances in the fluid flow of the medium occur and some measurement technologies are sensitive to these disturbances.
In order to avoid measurement errors due to these disturbances, it is necessary to place enough straight pipe in front of the flow transmitter so that the fluid flow is not disturbed.
This straight length of pipe in front of flow measuring instruments is expressed in terms of the pipe diameter (DN).
Other factors to consider are the accuracy and repeatability of the flow rate meter, but also the analogue or pulse output signal and the communication protocol.
Other factors to consider are the accuracy and repeatability of the flow rate meter, but also the analogue or pulse output signal and the communication protocol.
Have you ever wondered how a flow sensor works? Let's discuss the different popular flow rate measurement technologies for measuring the flow of liquids, gas and steam.
Mag flow meter consists of a transmitter and a sensor that measure flow rate.
When a fluid passes through a pipe, the electromagnetic flowmeter's external sensor measures an induced voltage generated by the liquid. The transmitter measures the voltage produced by the sensor, transforming it into a flow rate value. An electromagnetic flowmeter measures flow using a pair of electrodes and a collection of coils. The electromagnetic flowmeter coils are driven by the transmitter as a result of applied currents. Once energized, a magnetic field forms between the two coils. When the pipe is filled and the fluid begins to flow, the force of the magnetic field separates the negatively and positively charged particles from the fluid.
Faraday's Law, described mathematically as E = k*B*D*V, is a flow principle of electromagnetic flow rate sensors.
The induced voltage (E) is directly proportional to the velocity (V) of the fluid flowing in the magnetic field (B).
The electrode circuit transmits the induced voltage to the transmitter, which transforms the velocity into a quantitative measurement.
The volume of the fluid is estimated from this known velocity and the surface area of the pipe.
Transit time difference method. This method is based on the fact that the transmission rate of an ultrasonic signal depends on the flow velocity. An ultrasonic wave moving with the flow moves faster than a wave moving against the flow. Two transducers are installed opposite each other on the outer wall of the pipe. The sensors each emit an ultrasonic pulse and detect the difference in transit time of the pulse to calculate the flow rate.
Non-intrusive ultrasonic clamp-on flowmeters offer many advantages:
Technology using pressure transmitter differential (DP) for DP flow measurement with primary element uses a variation of Bernoulli's principle to measure the volumetric flow of fluid in a pipe.
In our application of Bernoulli's principle, it is stipulated that the flow velocity increases and the pressure decreases as the flow passes through a restriction in the pipe. This allows us to determine the differential pressure across the restriction. The square root of this differential pressure is proportional to the flow rate. A differential pressure (DP) flowmeter consists of two elements, a primary element which causes a pressure drop, and a secondary element (a pressure transmitter) to measure the differential pressure.
When installing flowmeters, remember to install the meter in a straight section of pipe to eliminate disturbances caused by elbows, valves and other obstructions.
If you want to set up a flow rate meter, you have to do the commissioning.
Installing the instruments and connecting the pipes is called commissioning.
It's a complex job that requires a team of skilled people with a wealth of experience.
This operation can be carried out by technicians trained in process instrumentation, or by the manufacturer's technical services.
The user training stage is very important in order to configure the flow meter according to expectations.
This training ensures that you know how to read the flow meter display and use the configuration menu and parameters.
You'll be able to ask any questions you may have.
The importance of efficient, regular maintenance of flow rate sensors is that in normal operation, flow meters are exposed to a wide variety of contaminants.
These can be in the form of suspended solids carried by the medium being measured (such as dirt in water) or liquid/solid deposits formed on the outer surface of the flow transmitter (such as scale or corrosive materials). To minimise the risk of fouling and to ensure accurate measurement over long periods of time, it is necessary to clean it regularly.
Ideally, a flow meter should be cleaned once a year, or more frequently if it is exposed to particularly harsh conditions.
Cleaning in-line flow rate meter not only extends their life, but also ensures optimum performance at all times. Regular cleaning prevents dirt and other blockages from building up in your meters, eliminating false readings and ensuring that you get an accurate reading every time you use them.
Non-intrusive flow meters have the advantage of not being in direct contact with the fluid and do not require maintenance.
Calibration is important because it ensures accurate readings. If a flow rate meter is not properly calibrated, it will not provide reliable data that can be used for maintenance and plant improvement. It is also important to calibrate meters before they are put into service, as poor calibration can lead to a decrease in accuracy over time. Calibration ensures that fluid flow measurement is taken at a consistent point that provides accurate results every time.
The best way to ensure the continued accuracy of your equipment is to use ongoing verification, maintenance and calibration services.
A well-maintained flow meter will operate more efficiently than one that is not, resulting in lower operating costs for your business.
A flow sensor needs to be regularly calibrated to ensure that it continues to provide accurate readings.
Calibration is the process of checking that the flow rate meter is working properly and providing accurate readings. Calibration should be carried out in accordance with the manufacturer's specifications, usually on an annual basis. Calibrating the flow transmitter involves comparing its output with a known input.
This can be done using an external reference by comparing the output with another device, such as a secondary flow meter. Calibration is usually carried out by the manufacturer or supplier of the flow measurement equipment. However, if the warranty period has expired or the manufacturer or supplier does not provide a calibration service, you can send your flow meter to a specialist company for calibration.
The different classes of flow meters are used for flow measurement and control in a variety of applications, the paper industry, mining and metalworking, water and wastewater, food processes, chemicals and petrochemicals, oil and gas.
They are suitable for a wide range of applications, from clean or dirty liquids, through highly corrosive or abrasive gases, to saturated and superheated steam. The appropriate flow meter technology should be chosen according to the application and the constraints of the industrial environment.
Fuji Electric France is at your disposal to help you find the right flowmeter for your application.
