High-performance frequency inverter - FRENIC-ACE - E3

High-performance frequency inverter

Fields of application

Industrial automation, HVAC systems, food processing, machine tools (food processing machines, commercial washing machines, press machines), conveyors, pumps and fans, lifting cranes, stacker cranes and many other applications requiring precise motor control.

Benefits

  • Versatile: suitable for a wide range of industrial applications
  • Customizable software programming via PLC language
  • User-friendly interface with backlit LCD display and detachable keypad
  • Compact design for easy integration into control cabinets
  • Compatible with several communication protocols
  • Complies with international standards
  • High reliability with integrated overload, overvoltage and short-circuit protection
Reference : FRENIC-ACE-E3
Public price 300 €
Discounts available on request

Features

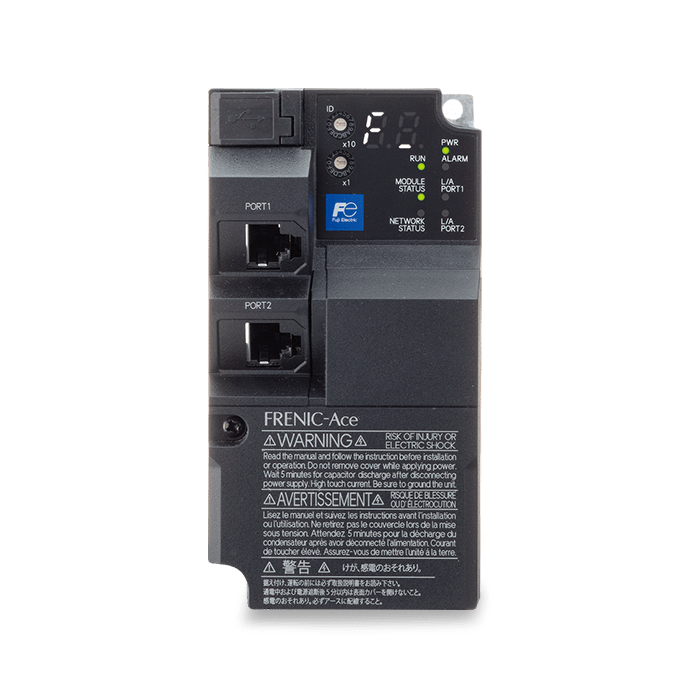

The FRENIC-Ace E3 frequency inverter, an evolution of the FRENIC-Ace E2 frequency inverter model, retains the flexibility, compactness and advanced performance of its predecessor, while introducing significant improvements. Fuji Electric's universal frequency inverter is now available in four versions - standard, with integrated EMC filter, finless and with Ethernet communication interface - to cover an even wider range of industrial applications. Its network support is enhanced by an integrated Ethernet model or an optional card, while its compatibility extends to different types of motor. Designed for precise, efficient and adaptable motor control, the FRENIC-Ace E3 frequency inverter continues to incorporate intelligent functions, extensive communications and customized programming logic, as well as improved operability and preventive maintenance thanks to the TP-A2SW multifunction keypad, Bluetooth connectivity for mobile access and an integrated tracing function.



ModelFRENIC-ACE FRN-E3
InputPhases, Voltage, FrequencyThree-phase 400 VAC380 to 480 VAC, 50/60 Hz
Three-phase 200 VAC200 to 240 VAC, 50/60 Hz
Single-phase 200 VAC200 to 240 VAC, 50/60 Hz
VariationsVoltage: +10 to -15%, voltage unbalance: 2% or less
less
Frequency: +5 to -5
Overload capacity120% - 150% of rated current for 1 min
200% of rated current for 0.5 s
Output frequencyMaximum frequency5 to 599 Hz
(If the output frequency exceeds 599 Hz, the inverter stops with overspeed protection).
Base frequencyVariable from 5 to 599 Hz
Rated frequencyVariable from 0.1 to 60.0 Hz
(0.0 Hz under vector control with speed sensor)
Switching frequencyThree-phase 200 VAC series :
variable from 0.75 to 16 kHz (depending on model)
Three-phase 400 VAC series :
variable from 0.75 to 16 kHz (depending on model)
Series single-phase 200 VAC :
variable from 0.75 to 16 kHz (depending on model)
PowerThree-phase 400 VAC0.4 kW
0.75 kW
1.1 kW
1.5 kW
2.2 kW
3 kW
3.7 kW
5.5 kW
7.5 kW
11 kW
15 kW
18.5 kW
22 kW
30 kW
37 kW
Three-phase 200 VAC0.1 kW
0.2 kW
0.4 kW
0.75 kW
1.1 kW
1.5 kW
2.2 kW
3 kW
3.7 kW
5.5 kW
7.5 kW
11 kW
15 kW
18.5 kW
22 kW
30 kW
Single-phase 200 VAC0.1 kW
0.2 kW
0.4 kW
0.55 kW
0.75 kW
1.1 kW
1.5 kW
2.2 kW
3.0 kW
Control methodV/f control
Dynamic torque vector control
V/f control with slip compensation
V/f control with speed sensor (PG option card required)
Dynamic torque vector control with speed sensor (PG option card required)
Vector control with speed sensor (PG option card required)
Vector control without speed sensor
Vector control with magnetic pole position sensor (PG option card required)
Vector control without magnetic pole position sensor
Acceleration time / Deceleration time0 to 6,000 s
Multi-speed frequency16 speeds
Frequency control (analog input)Analog input :
-10 to +10 VDC (-5 to +5 VDC) / -100 to +100% (terminal [12])
0 to +10 VDC (0 to +5 VDC)/0 to +100% (terminal [12], [C1] (function V2))
0 to +10 VDC (0 to +5 VDC)/-100 to +100% (terminal [12], [C1] (function V2))
4 to 20 mA DC/0 to 100% (terminal [C1] (function C1))
4 to 20 mA DC/-100 to 0 to 100% (terminal [C1] (function C1))
0 to 20 mA DC/0 to 100% (terminal [C1] (function C1))
0 to 20 mA DC/-100 at 0 to 100% (terminal [C1] (function C1))
C1 function] and [V2 function] of terminal [C1] cannot be used at the same time. (exclusive)
Degree of protectionIP20 closed type, UL open type
ComplianceCE directive (CE marking), UL standard (cUL certification), KC certification

Documentation

Certificate: TUV FRENIC-ACE E3 frequency inverter

Certificates Download

Certificate: REACH FRENIC-ACE E3 frequency inverter

Certificates Download

Brochure: FRENIC-ACE E3 high-performance variable speed drives

Brochures Download

Brochure: FRENIC-ACE E3 compact high-performance variable speed drive

Brochures Download

datasheet : Frequency inverter FRENIC-ACE E3

Specifications Download

Manual: FRENIC-ACE E3 frequency inverter link communication card

Manuals Download

Manual: FRENIC-ACE E3 frequency inverter external communication card

Manuals Download

Manual: Operating the FRENIC-ACE E3 frequency inverter

Manuals Download

Manual: FRENIC-ACE E3 frequency inverter analog input/output interface card

Manuals Download

Manual: FRENIC-ACE E3 frequency inverter digital input/output interface card

Manuals Download

Manual: DeviceNet® communication card FRENIC-ACE E3 frequency inverter

Manuals Download

Manual: FRENIC-ACE E3 frequency inverter

Manuals Download

Brochure: Selection guide for variable speed drives and HMIs

Brochures Download
