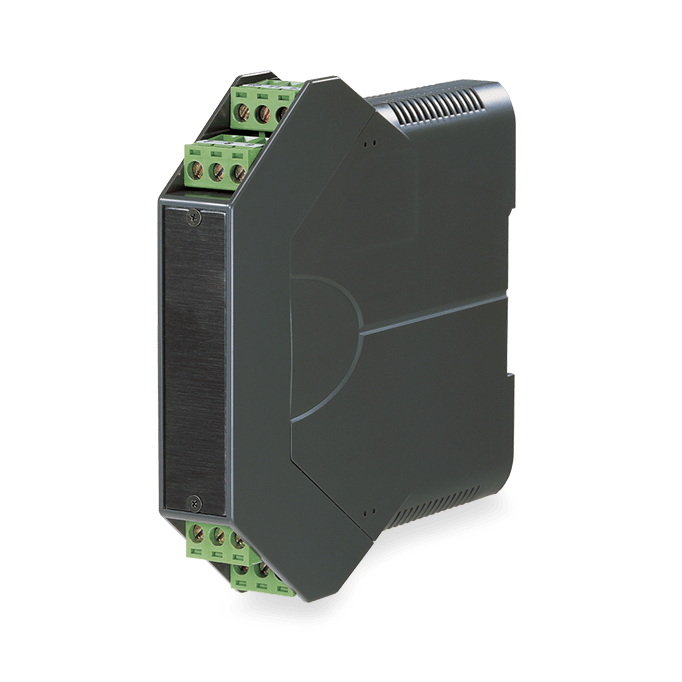

HART® din rail analog signal converter - type B3HU

Analog signal conversion

Fields of application

Signal conditioners convert a field signal from various sensors into a standard signal that can be processed by PLC, DCS or PC systems.
They are also used to: amplify a signal to increase load drive capacity, and isolate a signal to avoid ground loops.

Benefits

  • Universal inputs and isolated output: mV, resistance thermometer, thermocouple, potentiometer
  • Wide 12-45 Vdc power supply range
  • 2-wire analog converter, DIN rail mounting
Reference : B3-1
Public price 386 €
Discounts available on request Configure my product

Configure product

Features

Signal converters and signal conditioners are industrial instrumentation devices for analog signal processing. These devices convert industrial process signals into analog or digital signals for interfacing with industrial process automation equipment. These conditioners provide isolation, conversion, amplification, alarm management, display and control functions.



ConnectionEuropean-type terminal block
Housing materialNon-flammable resin (grey color)
InsulationFrom input to output to feed
Output signal4-20mA DC
Supply voltage12 - 45 V DC
Operating temperature-40 to +85 °C
Max. 55 °C for UL approval
Operating humidity0 to 95% RH (non-condensing)
AssemblyDIN rail mounting
Weight80 g (2.8 oz)

Documentation

Manual: HART® transmitter Type B3HU

Manuals Download

Manual: PC configuration for HART® transmitter Type B3HU

Manuals Download

Manual: HART® installation for HART® transmitter Type B3HU

Manuals Download

Manual: Installation approval fm HART® analog signal converter Type B3HU

Manuals Download

Manual: Installation CENELEC approval HART® analog signal converter Type B3HU

Manuals Download

datasheet : HART® analog signal converter Type B3HU2

Specifications Download

datasheet : HART® analog signal converter Type B3HU

Specifications Download

Technologies

  • Signal conditioners

    Signal conditioners

    Isolate, convert, amplify a field signal from your sensors or manage your alarms and regulation with Fuji Electric signal converters.
