PID temperature controller - PXF4 DIN series

Temperature control

Fields of application

Pharmaceutical industry, electronic component manufacturing sector, production and services in the manufacturing industry, chemical, petrochemical and plastics industries, food and beverage industries, paper and cardboard industry, textile mills, shipbuilding and aeronautics, ore production and processing, power plants, wastewater treatment plants and cold stores and warehouses.

Benefits

  • Improving quality and optimizing your machines
  • Maximum flexibility and a wide range of applications
  • Cost-effective system integration
  • Ergonomic and easy to use
  • Quick and easy installation
  • Designed to last in harsh environments
Reference : PXF4-DIN
Public price 221 €
Discounts available on request Configure my product

Configure product

Accessories

Features

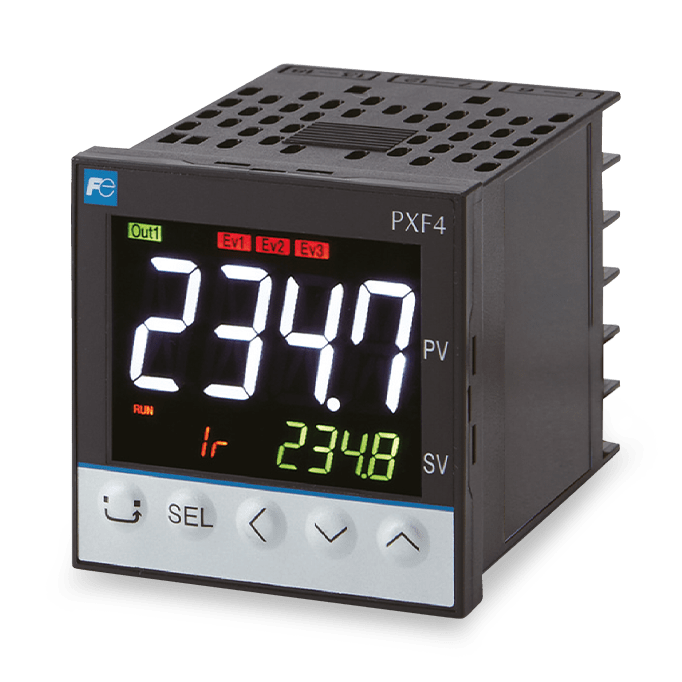

The PXF4DIN is an extremely compact PID temperature controller with a depth of just 58 mm. Its 48 × 48 mm front panel features a large white LCD display. Designed along the same lines as the standard PXR model, the PXF4DIN features a fast sampling cycle (50 ms) equal to the PXH, highly accurate input indications, universal input and various PXG functions, all at a competitive price. Equipped with multiple inputs/outputs and sophisticated control functions, the PXF4DIN temperature controller can be adapted to a wide range of applications.



Screen size in mm48 × 48
Power supply100-240 V AC
24 V DC
Display4 figures
Electrical connectionM3.5 screw terminal block
Measurement accuracy± 0,5 %
Sampling cycle50 ms
Number of PV entries1
Number of outings1
Control typeAll or nothing
Pid
Fuzzy logic
Self-adaptive control
Pid 2
Setpoint generator8 ramps / landings

Documentation

White paper: PID control for dummies, everything you need to know

White paper Download

Manual: PXF4 socket series temperature controller

Manuals Download

Certificate: UKCA temperature controller PXF

Certificates Download

Certificate: EU declaration of conformity temperature controller PXF

Certificates Download

Manual: PXF series temperature controllers with Modbus communication

Manuals Download

Manual: PXF series temperature controller settings

Manuals Download

Manual: PXF4 series temperature controller

Manuals Download

Manual: USB charging cable for PXF series temperature controllers

Manuals Download

Software: Parameters for PXF series temperature controllers

Software Download

datasheet : Temperature controller PXF4 DIN series

Specifications Download

Brochure: PXF series temperature controllers

Brochures Download

Brochure: Temperature controllers, from simple to advanced control

Brochures Download
