X-ray, gamma and neutron radiation measurement
Fields of application
They are perfectly suited to the requirements and applications of: Nuclear power plants and fuel cycle, Decommissioning activities, Military defense and civil security: Protection of first responders, Research laboratories and education, Particle gas pedals, Industrial activities and non-destructive testing, Medical environment (radiological platform).
Benefits
Versatile and all-in-one, NRF5 Series dosimeters can be used stand-alone or integrated into a dosimetry or remote dosimetry system. They can be used to reinforce the protection of workers in controlled areas or areas likely to be exposed to ionizing radiation.
| Standard | IEC61526 Ed.3.0 and ANSI N42.20 | ||
| Magnitude and radiation measured | Hp(10) - X, Gamma (γ) Hp(10) - Neutron | ||
| Detector | Silicon semiconductor | ||
| Measurement ranges | X, Gamma (γ) | Dose | 1 µSv to 10 Sv |
| Dose rate | 0.1 µSv/h to 10 Sv/h | ||
| Neutron | Dose | 10 µSv to 10 Sv | |
| Dose rate | 1 µSv/h to 10 Sv/h | ||
| Display ranges | X, Gamma (γ) | Dose | 1 µSv to 10 Sv |
| Dose rate | 0 µSv/h to 10 Sv/h | ||
| Neutron | Dose | 1 µSv to 10 Sv | |
| Dose rate | 0 µSv/h to 10 Sv/h | ||
| Energy ranges | X, Gamma (γ) | 30 keV to 7 MeV | |
| Neutron | 0.025 eV to 15 MeV | ||
| Energy response | X, Gamma (γ) | ±20% (50 keV to 6 MeV) | |
| Neutron | ±50% (250 keV to 4.5 MeV) | ||
| Angular response | X, Gamma (γ) | ±20% (137Cs, 0° to 75°); ±50% (241 Am, 0° to 75°) | |
| Neutron | ±30% (241Am, 0° to 75°) | ||
| Accuracy | X, Gamma (γ) | ±10% (137Cs) | |
| Neutron | ±15% (252Cf or 241 Am-Be) | ||
| Dose rate linearity | X, Gamma (γ) | ±10% (137Cs) | |
| Neutron | ±20% (252Cf or 241 Am-Be) | ||

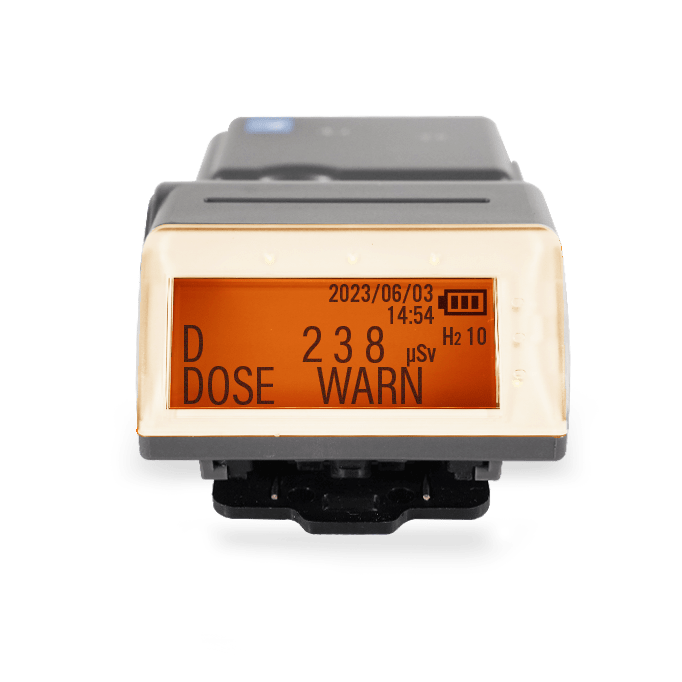

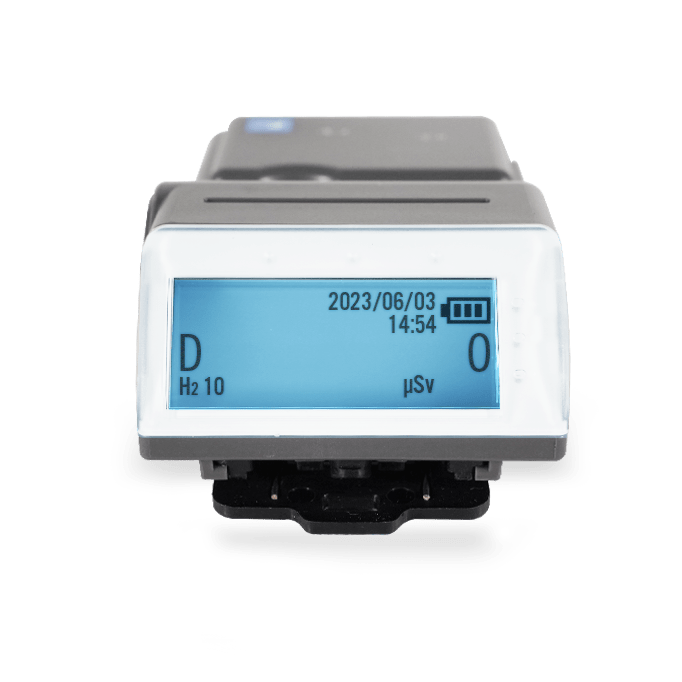

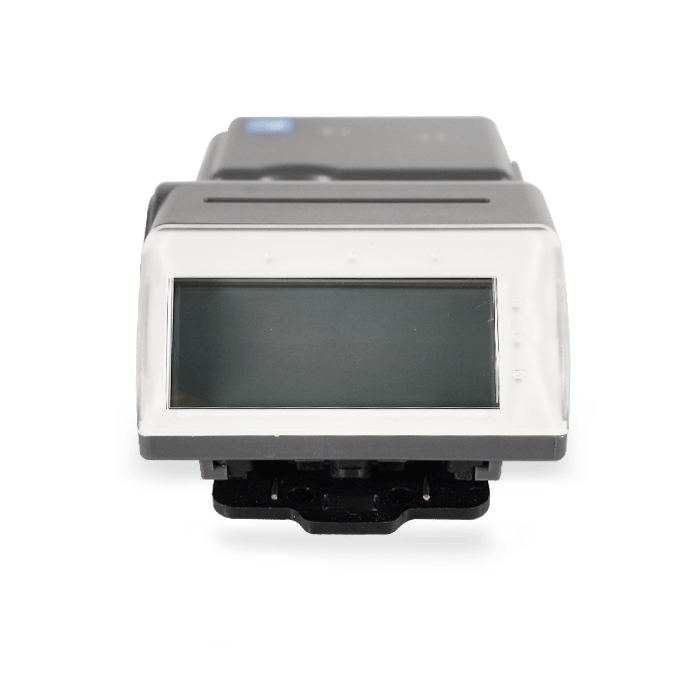

| Display | Large LCD display (45.1 × 16.9 mm); Display area: 43.5 mm x 16.3 mm | ||

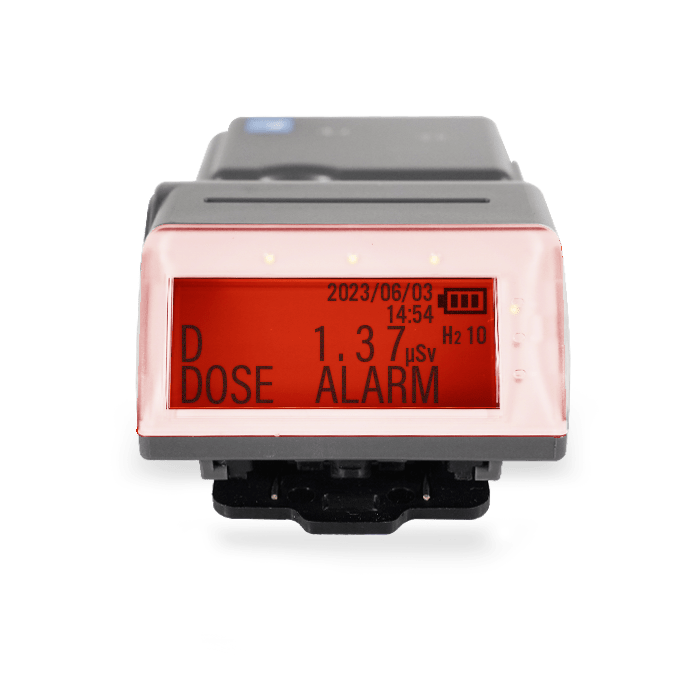

| LED | 3 red Flash LEDs - 3 auxiliary LEDs (Green, Orange, Red) | ||
| Buzzer | Piezoelectric (90 to 100 dB @ 30 cm) | ||
| Communications | USB; Infrared; Electromagnetic induction; Bluetooth®; Wi-Fi | ||
| USB interface | USB 2.0 micro-B (can be used for power and communication) | ||
| Data logging | Internal storage for up to 4,000 points (date/time, dose, dose rate, status) Input/output data: up to 1000 | ||
| Power supply | Standard AA (LR6) battery x2 or rechargeable battery | ||
| Operating time | 2500 hours continuous operation (without alarm or communication) | ||
| Temperature | -10 °C to +50 °C | ||
| Humidity | ≤ 95 % | ||
| Waterproofing | IP65/67 | ||
| CEM | MIL STD 461 F compliant | ||
| Dimensions | 60 × 105 × 29 mm | ||
| Weight | ≤ 100 g (without battery); approx. 170 g (with 2 batteries) | ||

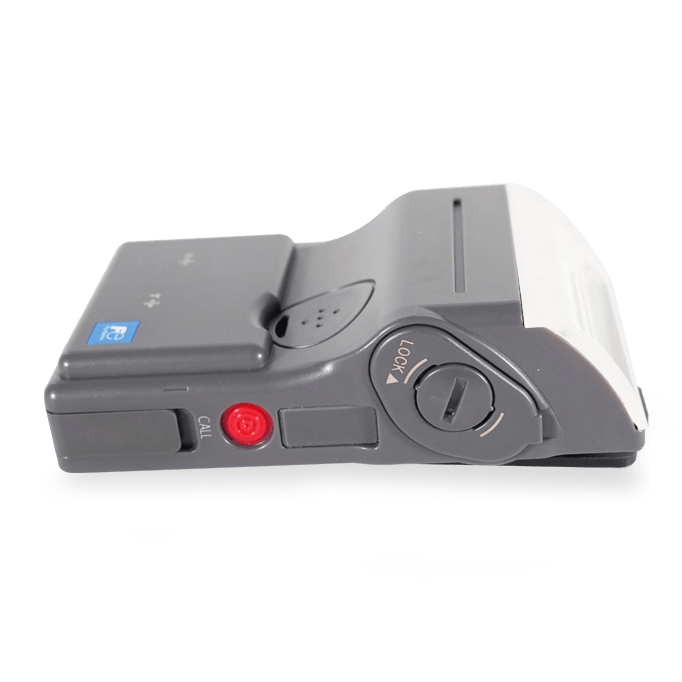

| Other features | Vibrator; Emergency call button ; Thermistor (for temperature compensation) ; External charger (USB-AC adapter); Accelerometer | ||
| Additional functions | Stopwatch; Notepad (32 characters) | ||
Brochure: NRF51 personal electronic dosimeter for X-rays, Gamma rays and Neutrons
Brochures DownloadTechnologies
Ensure the safety of workers exposed to radiation with electronic personal dosimeters for X-rays, gamma rays, beta rays and neutrons.

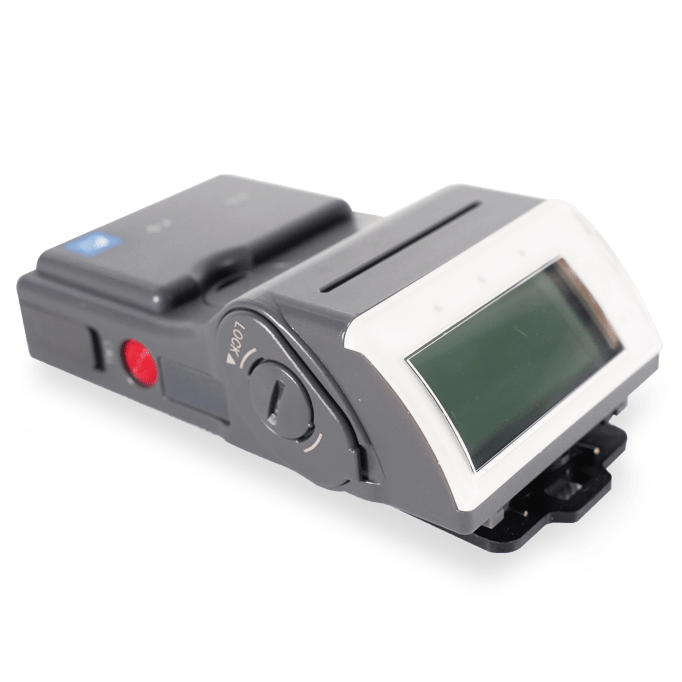

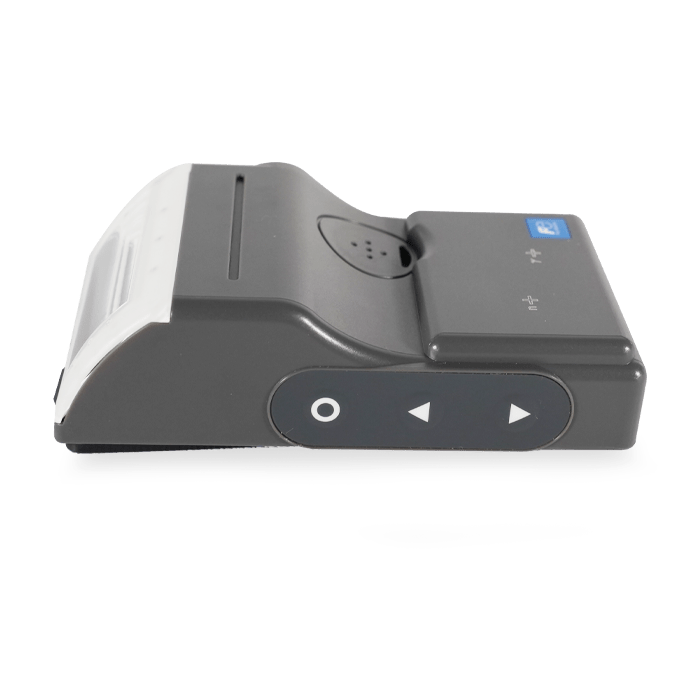

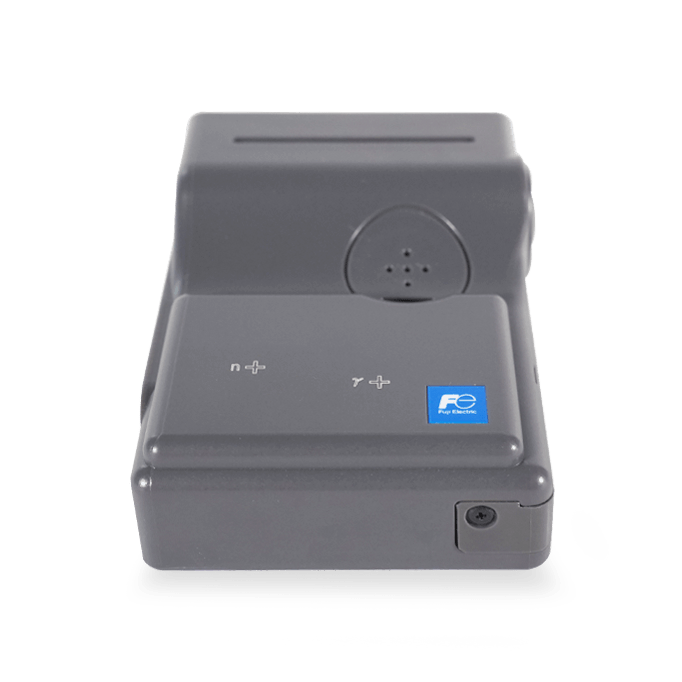

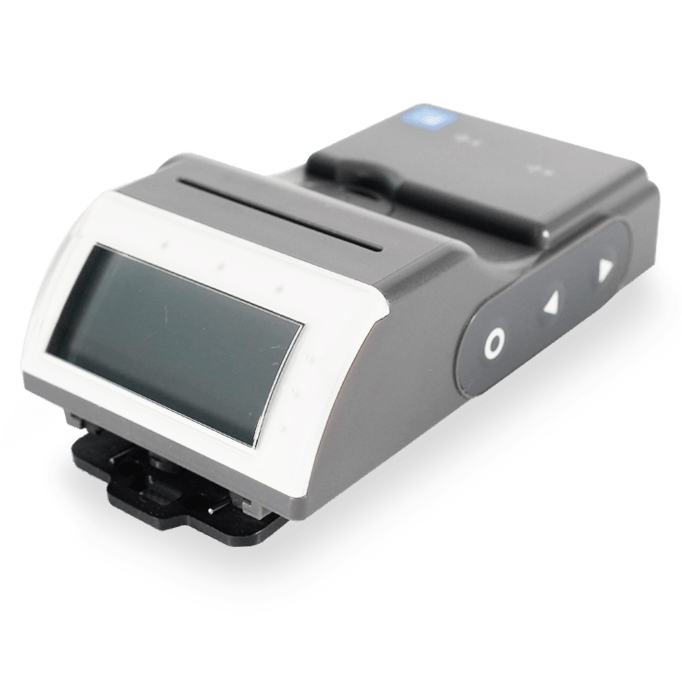

NRF51 Personal Electronic Dosimeter - X-rays, Gamma rays and neutrons
Reference : NRF51
