In stock

Standard cable glands

pressure transmitter accessory

Benefits

  • Perfect sealing
  • Mechanical support and cable strain relief
  • Extend the life of your equipment
Public price 11 €
Discounts available on request

Features

MaterialNickel-plated brass
Fixing insertPolyamide V0 to UL94
TrimNBR
O-ring sealNBR
ProtectionIP 68 - 10 bar within the specified tightening ranges
Temperature resistance -40°C to +100°C

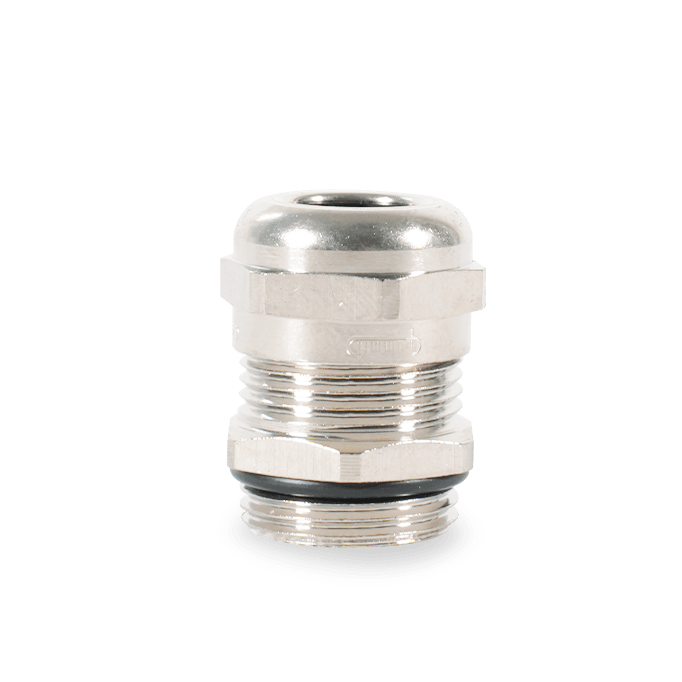

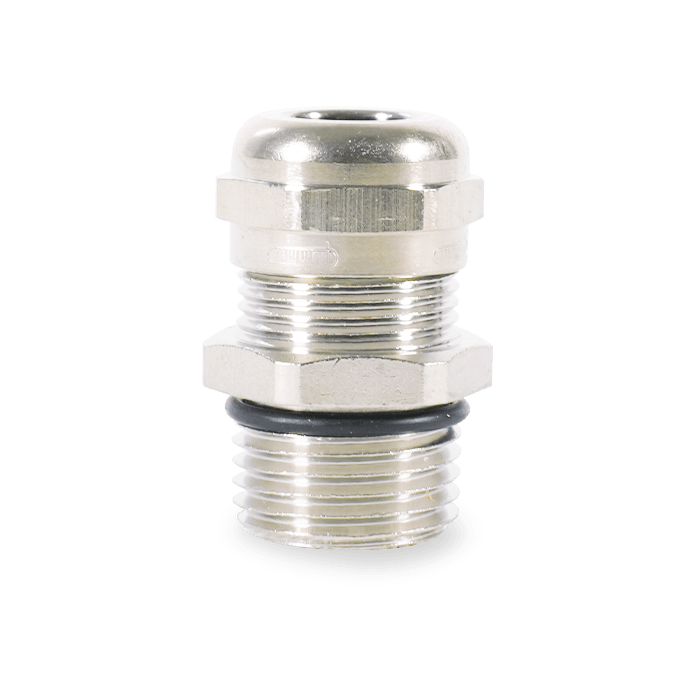

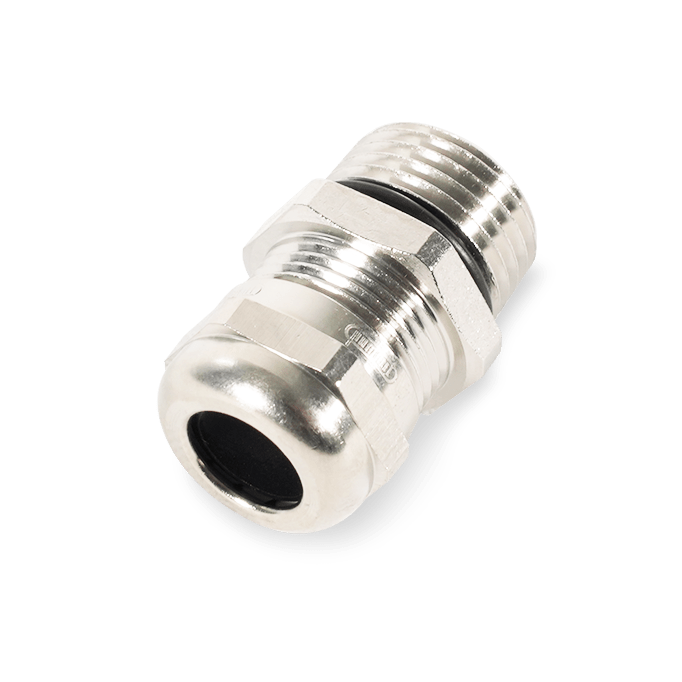

Order no.: 150A202-01

AG1/2" NPT
Cable diameter6 - 12 mm
GL13 mm
Height (H)24 mm
Key size (SW1/SW2)22/24 mm

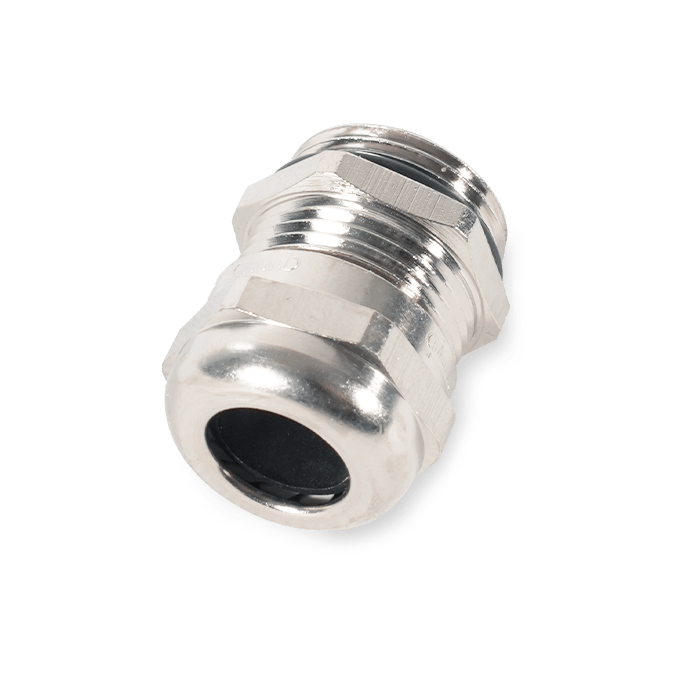

Order no.: 150A202-02

AGM20 x 1.5
Cable diameter6 - 12 mm
GL6 mm
Height (H)23 mm
Key size (SW1/SW2)22/23 mm

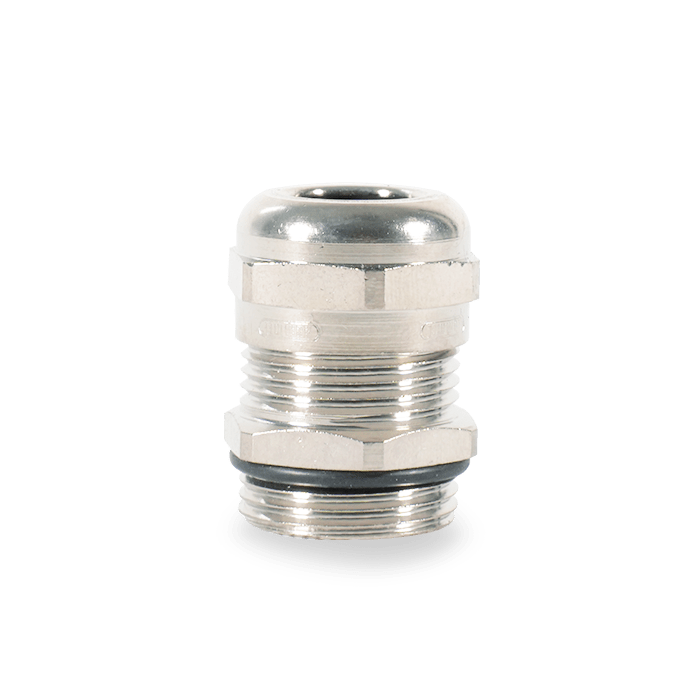

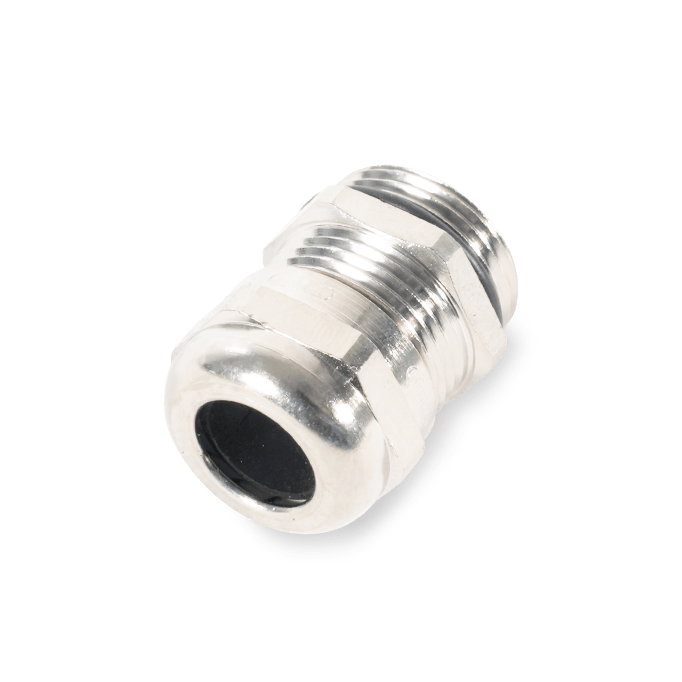

Order no.: 150A202-03

AGPG 13.5
Cable diameter6 - 12 mm
GL6.5 mm
Height (H)24 mm
Key size (SW1/SW2)22/22 mm
