Level measurement
Fields of application
The pressure transmitter FKE - NC - K3 can be used for all types of level measurement, on corrosive or non-corrosive liquids and on closed or open tanks to the atmosphere, for nuclear applications.
Benefits
The FCX-AII series electronic transmitter level sensor is a device that accurately measures liquid level and converts it into a directly proportional 4-20 mAcc output signal. The heart of the measuring element is a silicon micro-capacitive sensor, mounted in the neck of the cell. In addition, the electronic unit benefits from the latest microprocessor technology.
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 6 32 130 500 3000 |
| Weight per kg (without indicator) | 13 |
| Accuracy | ± 0,17 % ± 0.1% available as an option |
| Materials in contact with the process | Stainless steel 316, Stainless steel 316 L, Stainless steel 316 L + Gilding, Hastelloy C |
| Case materials | Standard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers). Option: 316 stainless steel |
| Membrane materials | 316 L stainless steel + gilding |
| Stability | ± 0.2% of max. scale for 3 years. |
| Elevation / Deletion | Equal to the upper limit of static pressure. |
| Communication protocol | HART 7 communication protocol |
| Process temperature | -40 to +85°C (silicone oil) -20 to +80 °C (fluorinated oil) |
| Ambient temperature | from -25 to +55°C -20 to +55 °C (digital indicator option) -20 to +55 °C (fluorinated oil option) |
| Supply voltage | 10.5 to 53 Vdc |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable from 0.12 to 32 seconds |
| Zero and span adjustment | Zero and span can be set from the FXW handheld the FXW handheld communicator and with the external screw located on the electronic box. |
| Electrical connections | M20 x 1.5 or ATEX explosion-proof cable gland, or Souriau subbase 8N35, or Sub-base Souriau 8N45S, or Souriau subbase 8N45, or SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5 (compatible with 8N45 on the Park), or Jaeger base with M20 x 1.5 thread ref.536 006 006 |
| Options | Analog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate |
Carrousel: How do you choose a pressure transmitter that meets nuclear safety requirements?
Carousel DownloadCarousel: 6 essential criteria for a safety function with a nuclear pressure transmitter
Carousel DownloadCarrousel: 5 factors to limit pressure transmitters failures on your installations
Carousel DownloadTechnologies
Hydrostatic level transmitters accurately measure liquid levels. The economical solution for the chemical and petrochemical industries.
Our innovative pressure transmitters qualified for the nuclear industry offer high accuracy, reliability and long-term stability. Fast delivery

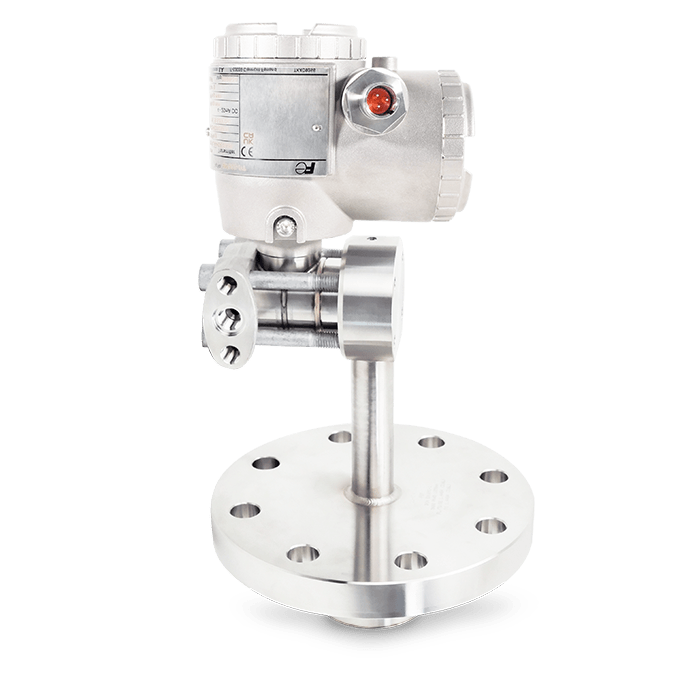

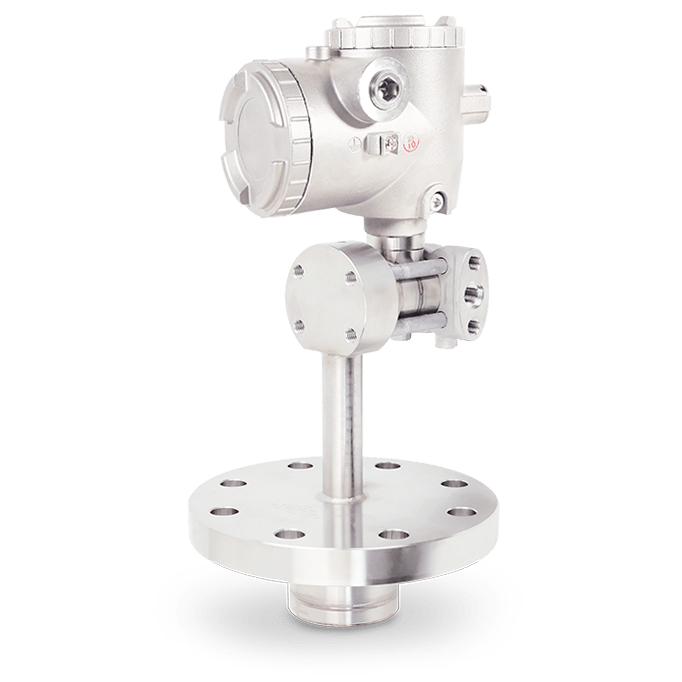

Nuclear pressure transmitter - FKE - NC - K3
