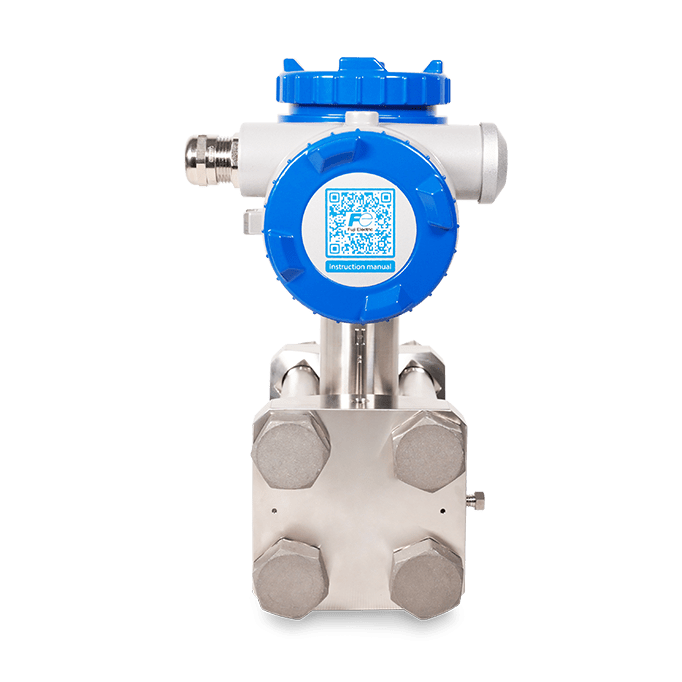

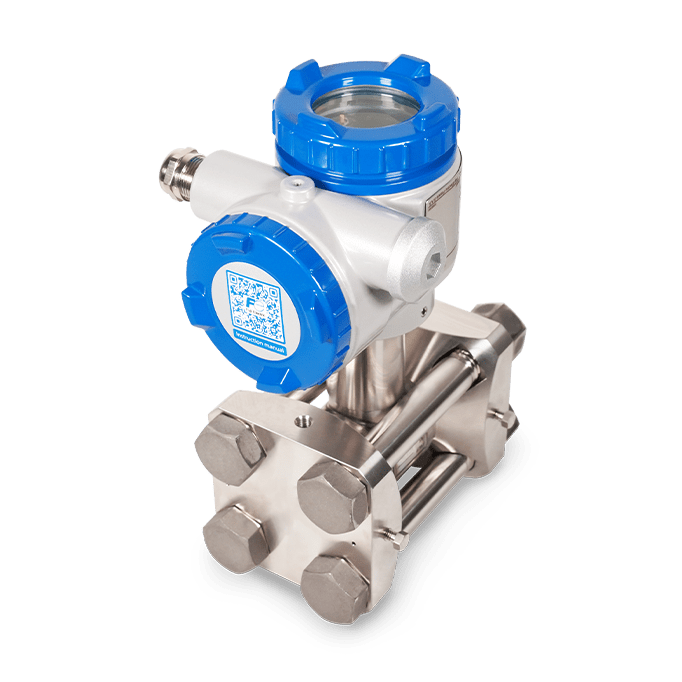

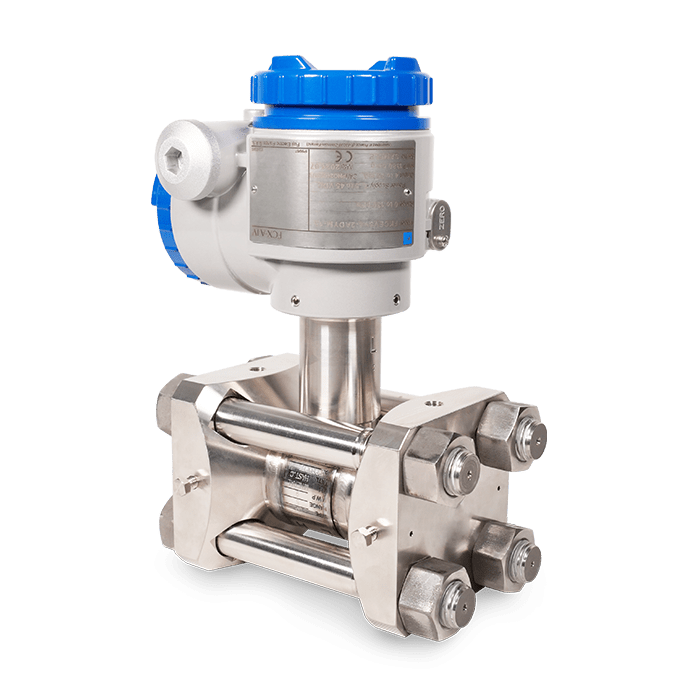

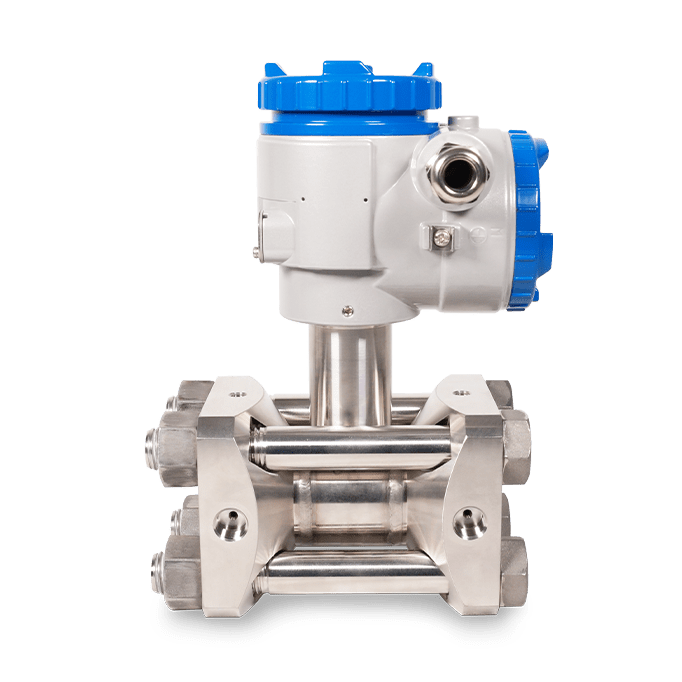

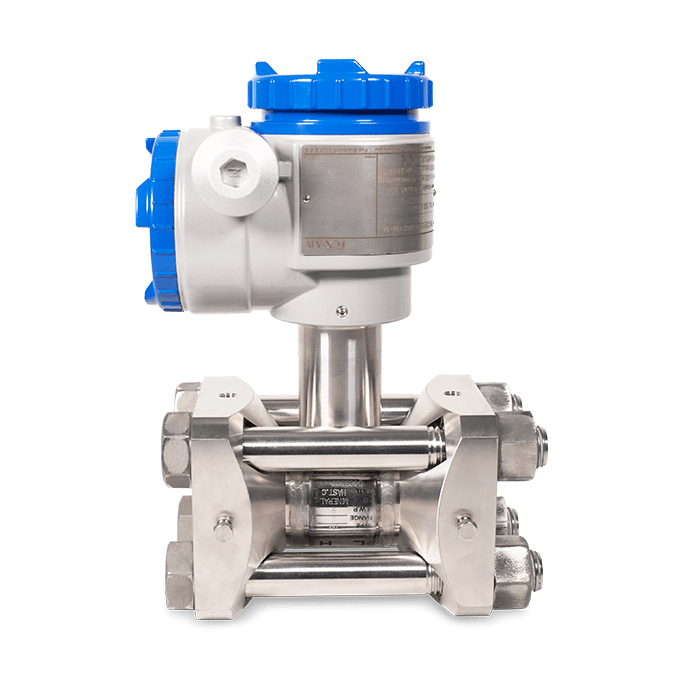

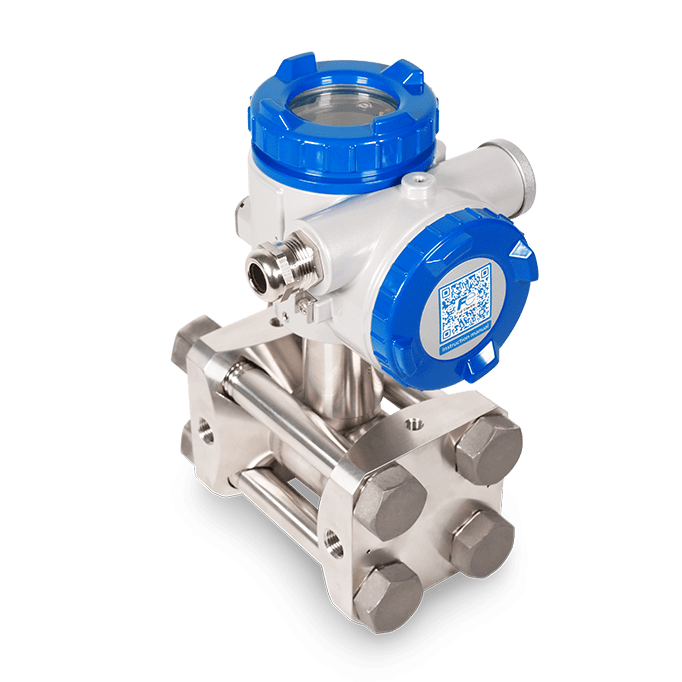

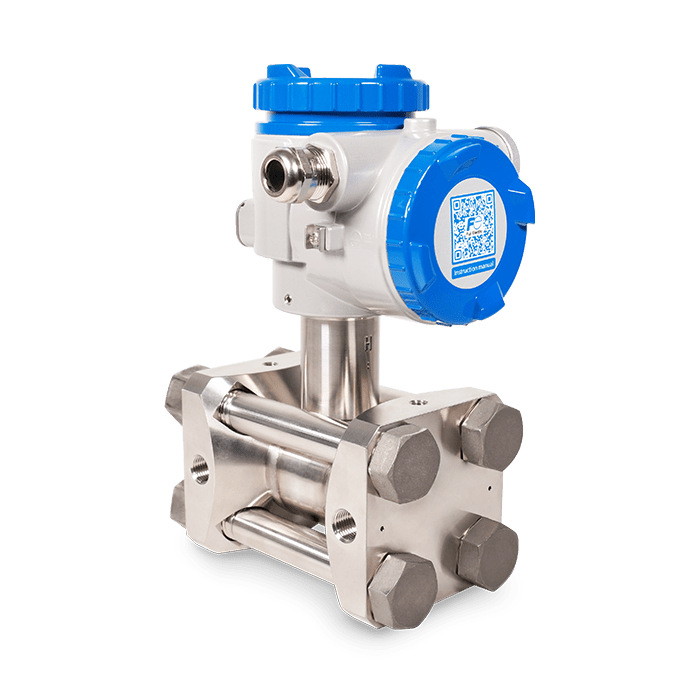

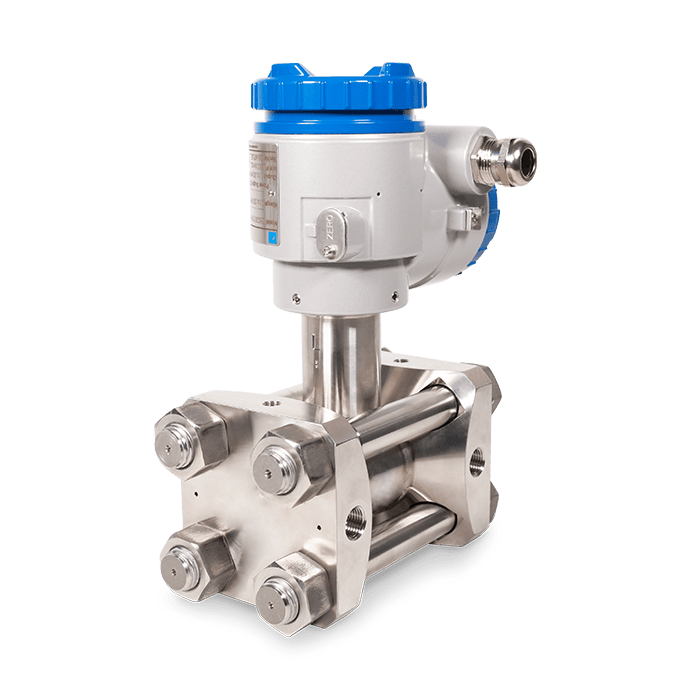

Differential pressure transmitter - FKC high static pressure

Differential pressure measurement

Fields of application

The differential pressure transmitter - FKC high static pressure resists extreme conditions in the marine environment and accurately measures water, oil and gas flows in topside drilling and offshore subsea production systems.

Features

Extreme conditions-resistant design
Outstanding sensor cell performance
Resistance up to 1,379 bar (20,000 Psi)
Fuji Electric expertise and know-how

Reference : FKC-HAUTE PRESSION STATIQUE Discounts available, consult us Please consult us

Accessories
Specifications
Documentations
Technologies

Accessories

In stock

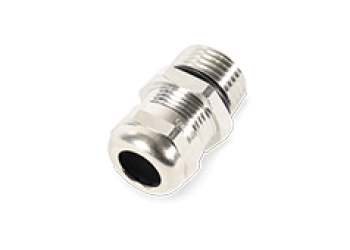

ATEX cable glands
Public price
11,00 €
Discounts available, please consult us
Request a quote
Please contact us
Flushing ring

Request a quote
In stock
Standard cable glands
Public price
11,00 €
Discounts available, please consult us
Request a quote

Specifications

Housing	L- or T-shaped housing
Measuring ranges (kPa) [e.max.]	1 6 32 130 500 3000 20000
Weight per kg (without indicator)	3,1
Accuracy	± 0.065% of the measurement range set as standard. An accuracy of ±0.04% is also available as an option.
Materials in contact with the process	Stainless steel 316L, Hastelloy-C, Monel, Tantalue, Stainless steel 316L + Gilding, Monel coating, Tantalue coating
Case materials	Low-copper aluminum alloy with polyester coating, or 316L stainless steel
Membrane materials	Stainless steel 316L Hastelloy-C Monel Tantalum Stainless steel 316L and Gilding Gilding and Ceramics
Stability	±0.1% of maximum scale for 10 years for digit 6 = 3, 5, 6, 8 and 9.
Elevation / Deletion	From -100 to +100% of maximum scale
Scale setting range	1 to 1/100 of maximum scale
Measurement cycle	40 ms
Communication protocol	HARTTM 7 communication protocol
Process temperature	From +40° to +120°C (versions for higher temperatures are available)
Ambient temperature	From -40° to +85°C
Power supply	10.5 to 45V DC
Output signal / Load resistance	4-20 mA / 250 Ω typical
Damping	Configurable between 0.04 and 32 secs
Zero and span adjustment	Via external sensor screw, local three-button display or HARTTM protocol
Electrical connections	M20x1.5" / 1/2 - 14 NPT / Pg13.5
Options	Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
