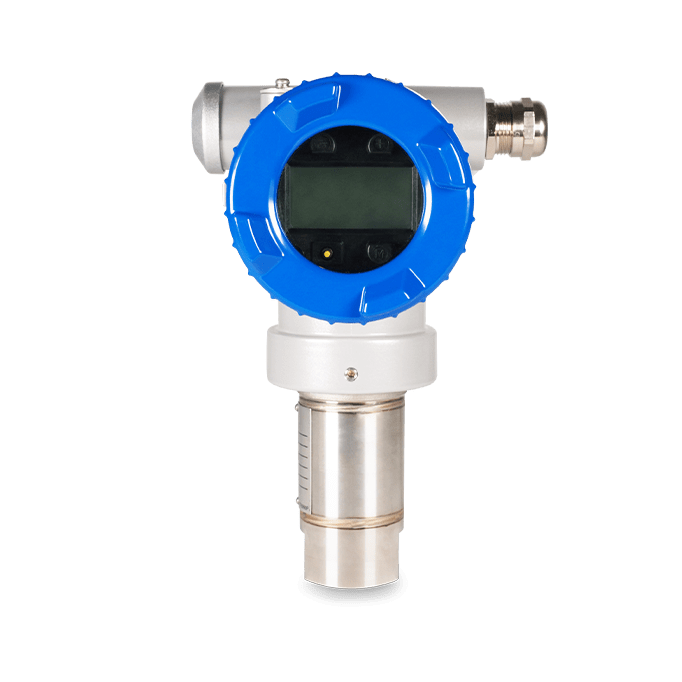

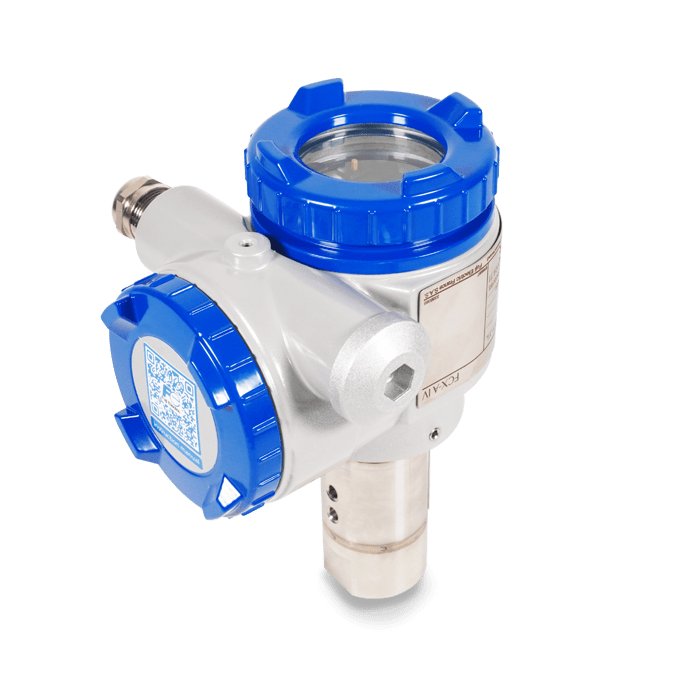

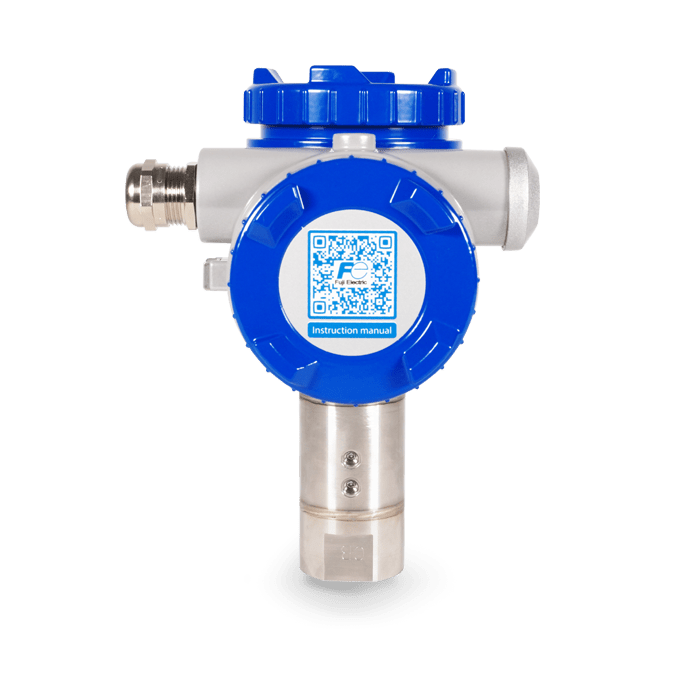

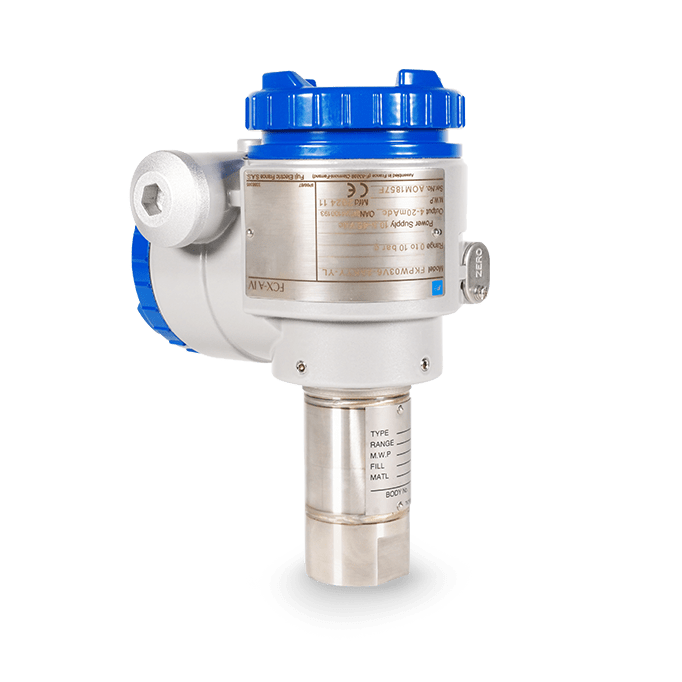

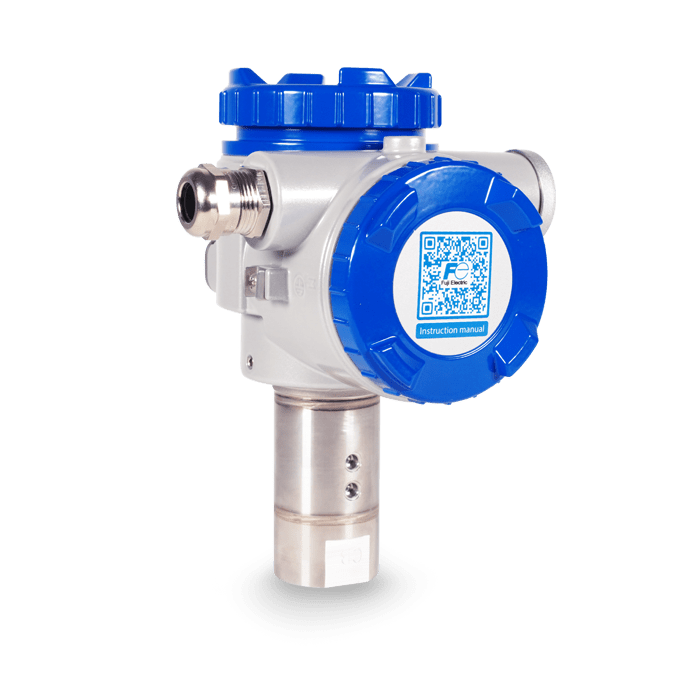

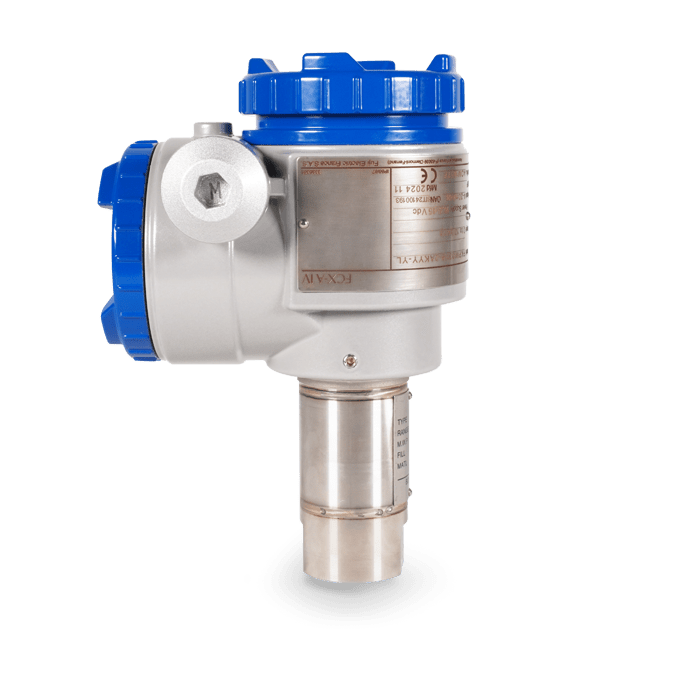

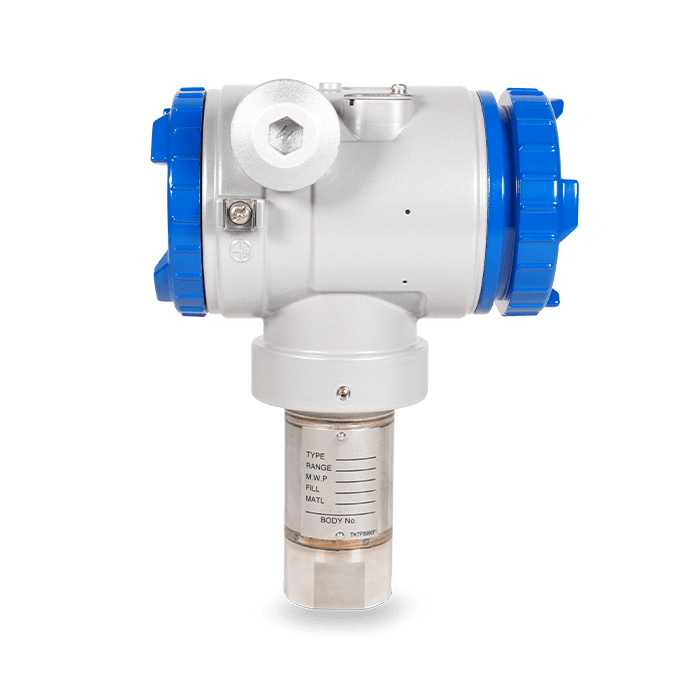

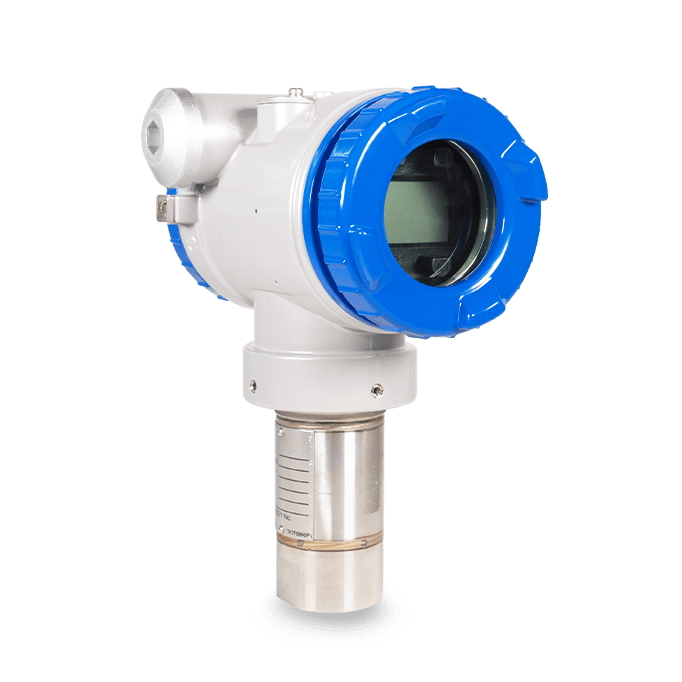

Gauge pressure transmitter - FKP

gauge pressure measurement

Fields of application

The FKP gauge pressure sensor measures the pressure of a gas or liquid relative to atmospheric pressure, and can be used in industrial processes such as the oil and gas industry, the chemical industry, power generation and water treatment.

Benefits

  • Long-term stability
  • High repeatability
  • Wide measuring ranges
  • Easy to install and use
Catalogue number: FKP
Public price 1029 €
Discounts available on request Configure my product

Configure product

Features

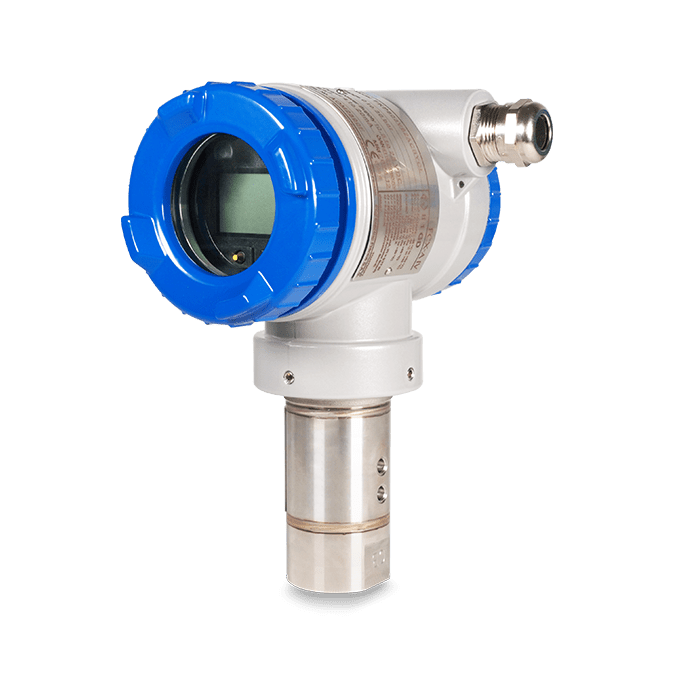

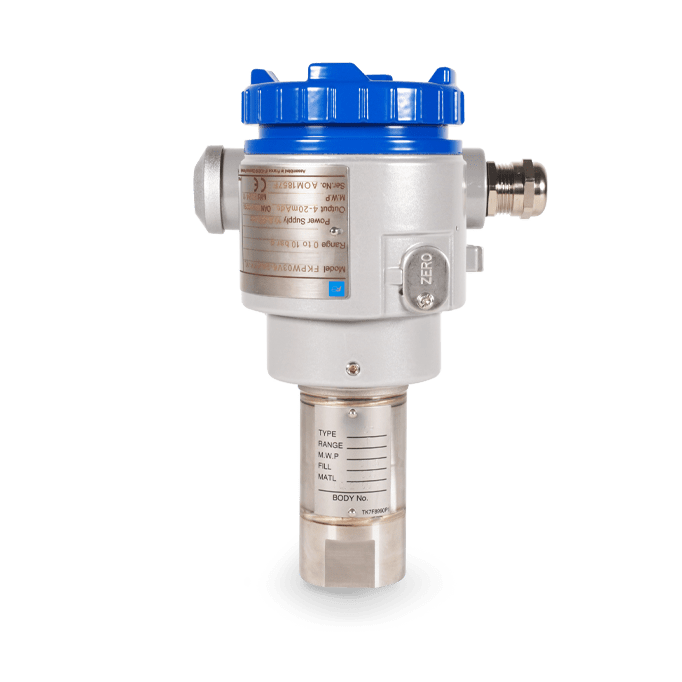

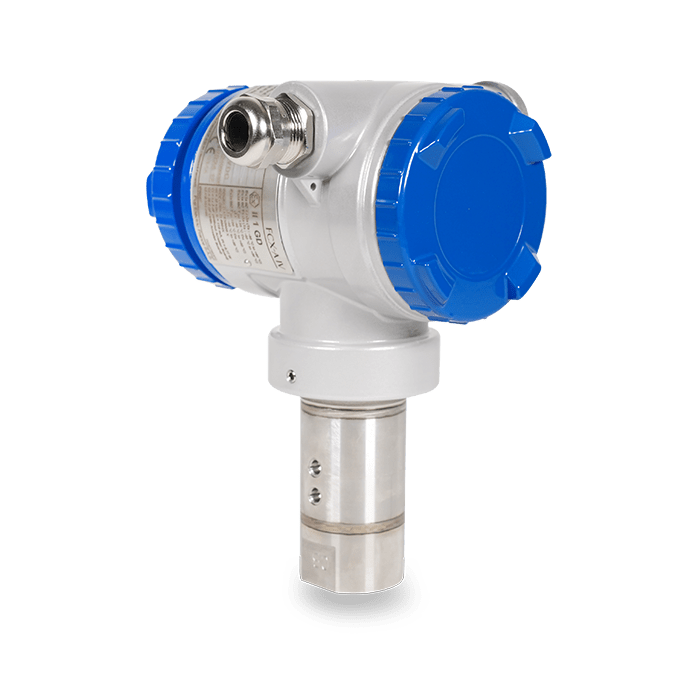

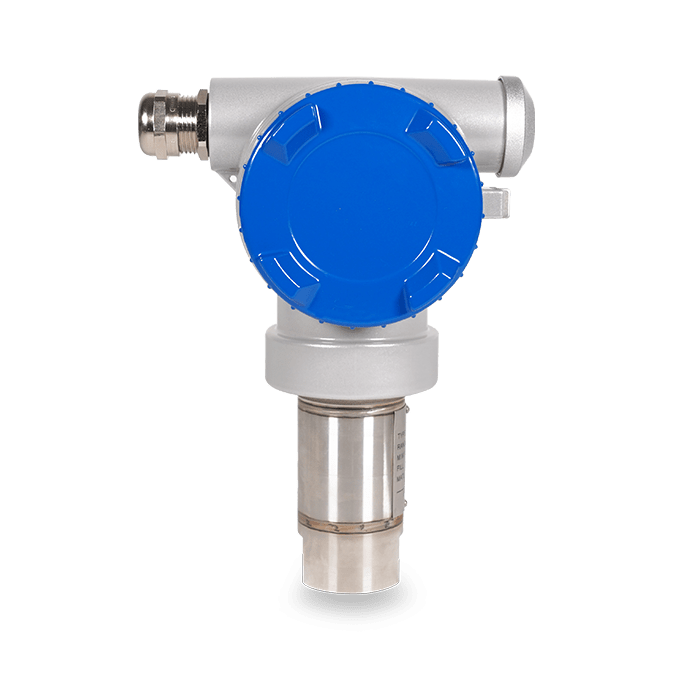

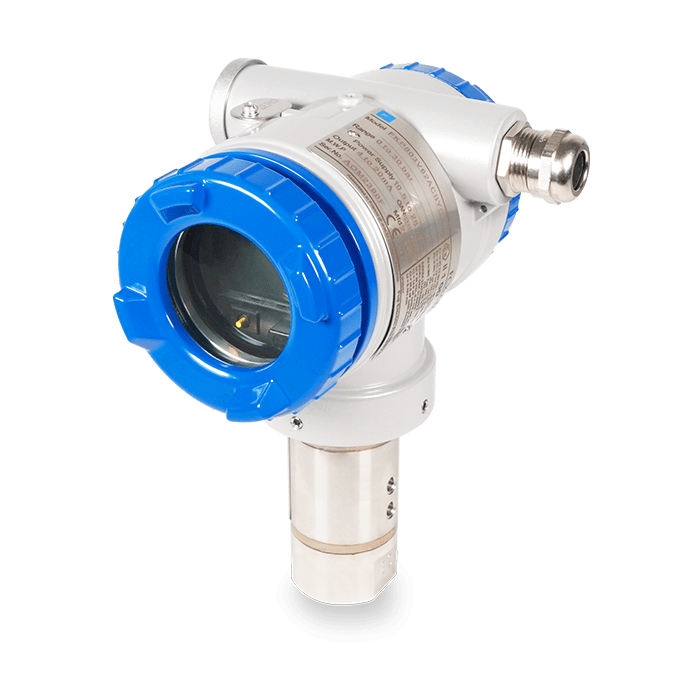

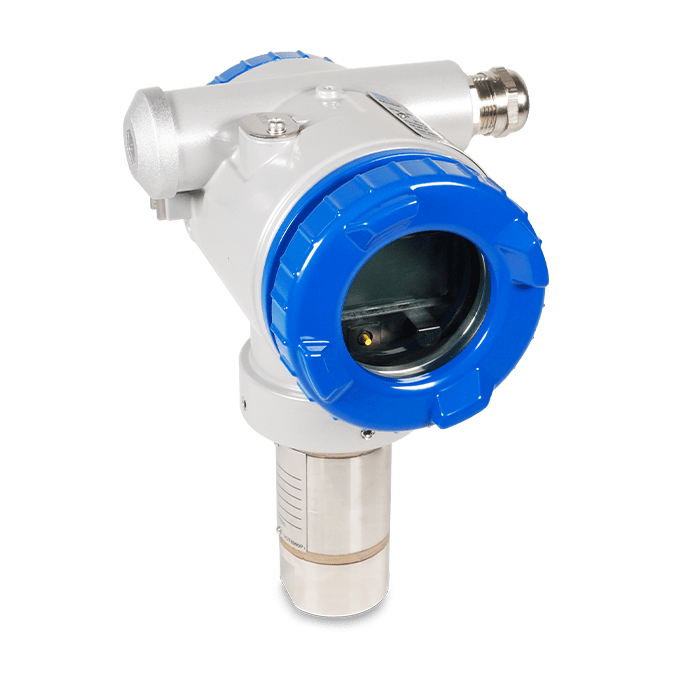

FKP direct-mount pressure transmitters in the FCX-AIV family accurately measure gauge pressure and convert it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a micro-capacitive silicon transducer that has proven its worth in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.

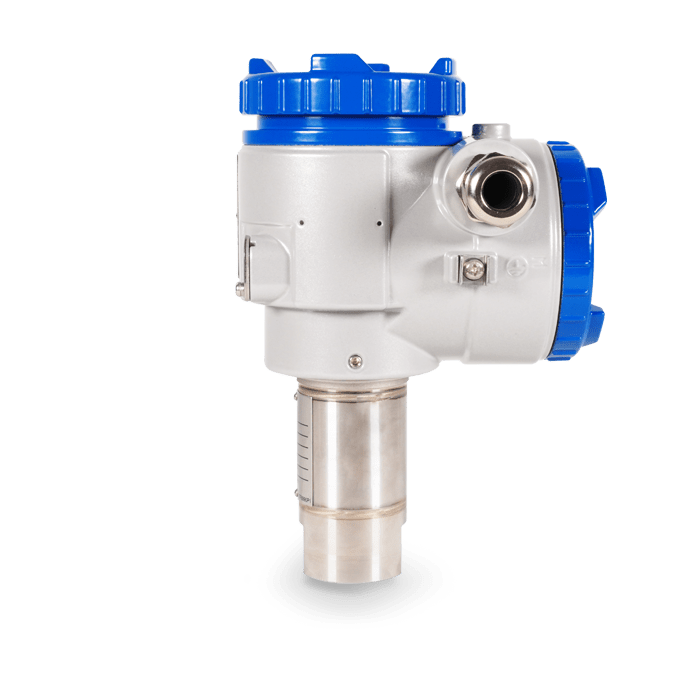

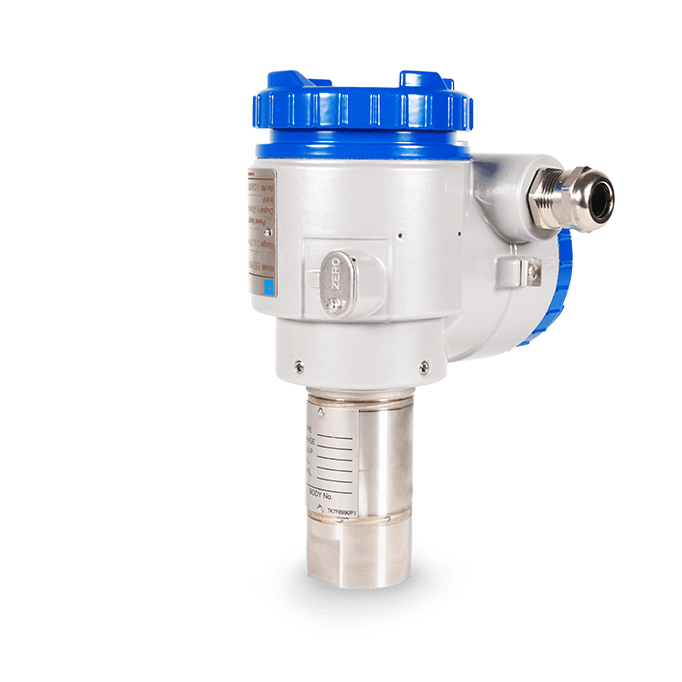

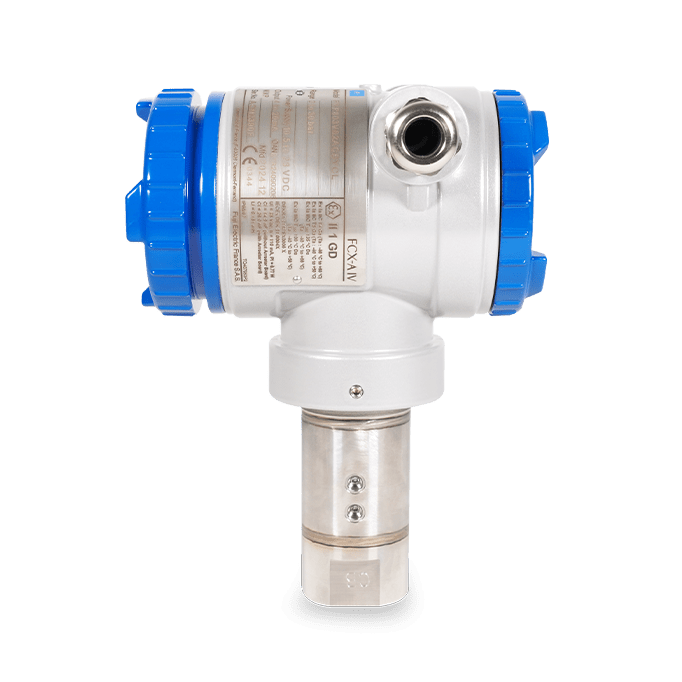

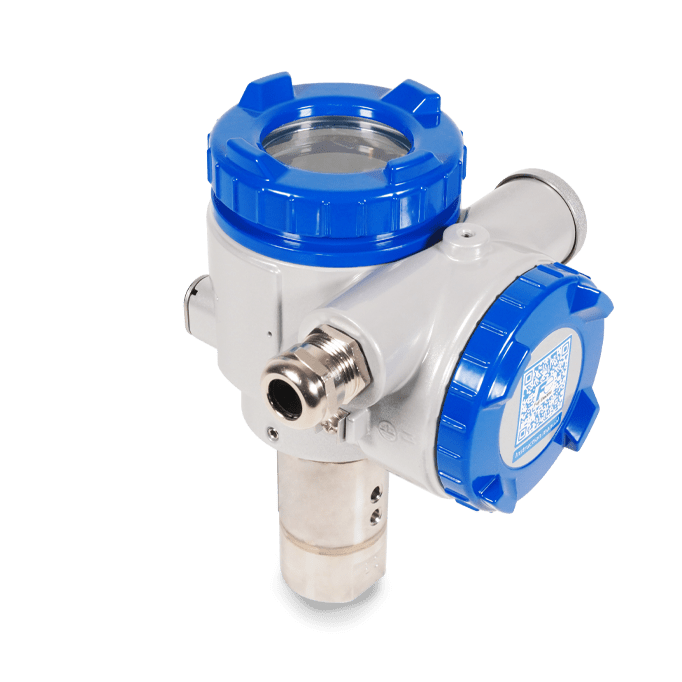

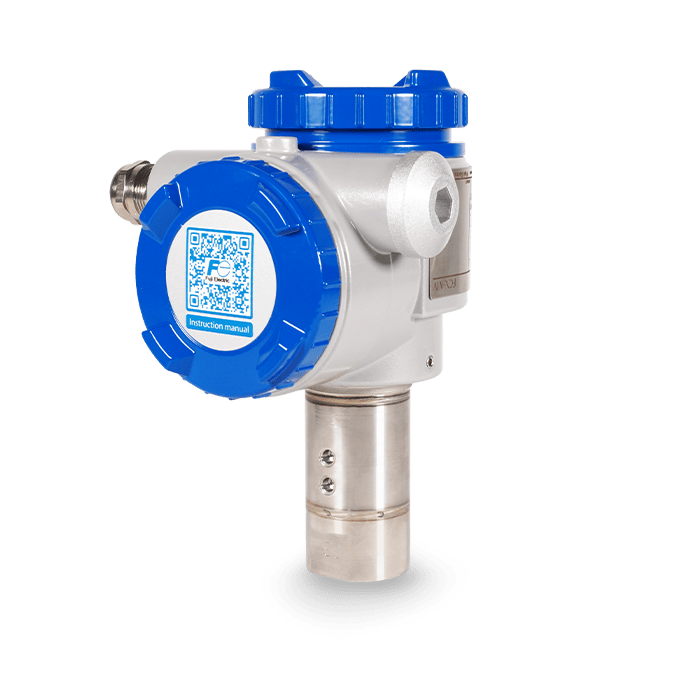

HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
10000
Weight per kg (without indicator)1.7
Accuracy± 0.1% of the measurement range set as standard.
Materials in contact with the processStainless steel 316 L, Stainless steel 316 L + Gilding
Case materialsLow-copper aluminum alloy with polyester coating or 316L stainless steel.
Membrane materialsStainless steel 316 L
Hastelloy-C
Stability±0.2% of maximum scale for 10 years
(if digit 6 codes "2", "3", "4")
Elevation / DeletionFrom -100 to +100% of maximum scale
Scale setting rangeFrom 1 to 1/16 of maximum scale
Measurement cycle40 ms
Communication protocolHART™ 7 communication protocol
Process temperatureFrom +40° to +120°C (versions for higher temperatures are available)
Ambient temperatureFrom -40° to +85°C
Supply voltage10.5 to 45V DC
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable between 0.04 and 32 secs
Zero and span adjustmentVia external sensor screw, local three-button indicator or HART™ protocol
Electrical connectionsM20x1.5" / 1/2 - 14 NPT / Pg13.5
OptionsDigital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
