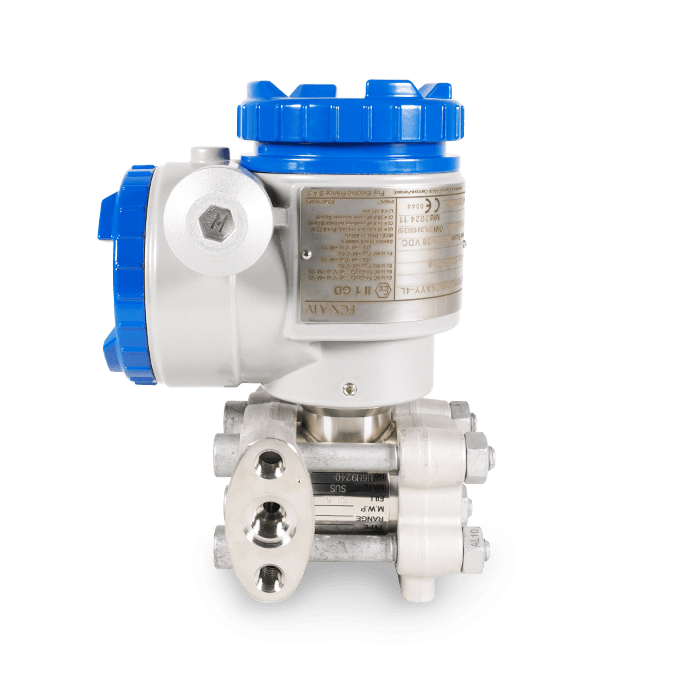

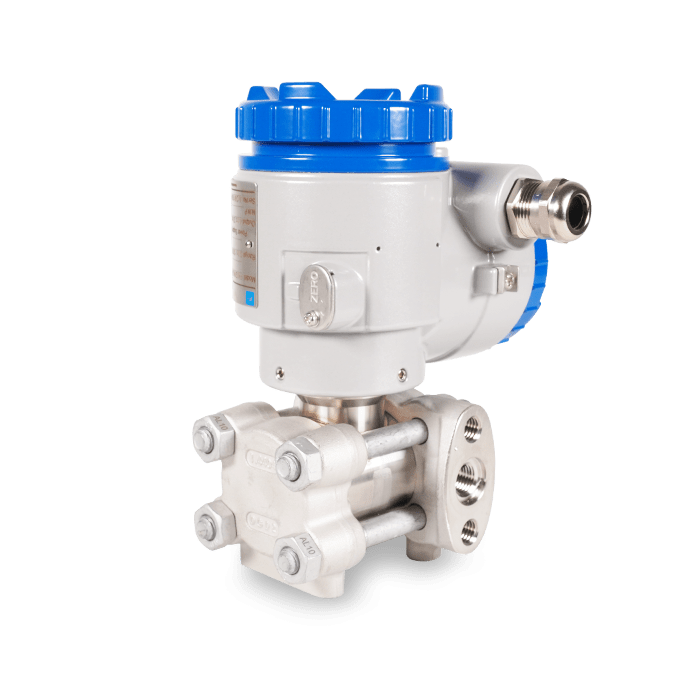

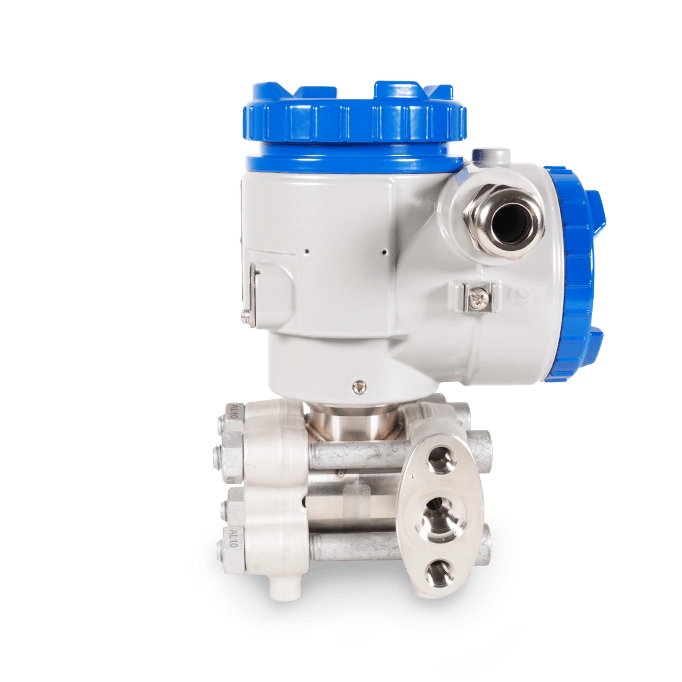

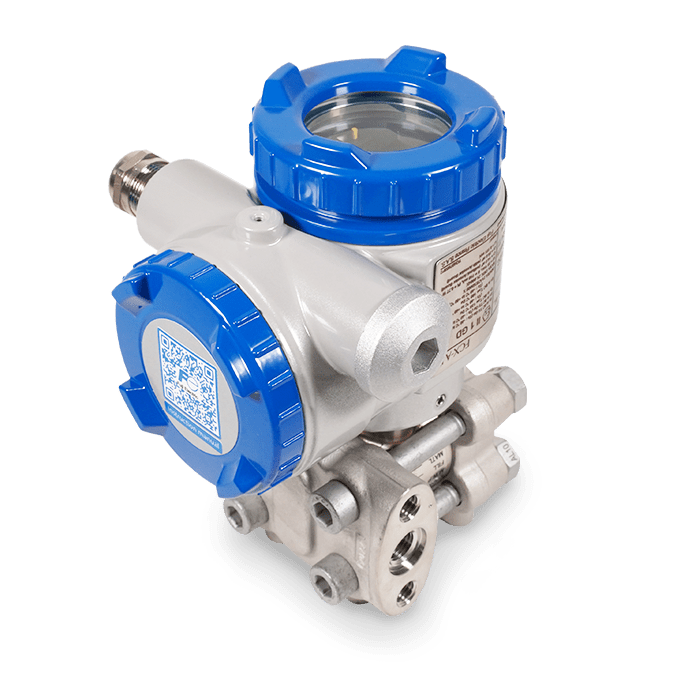

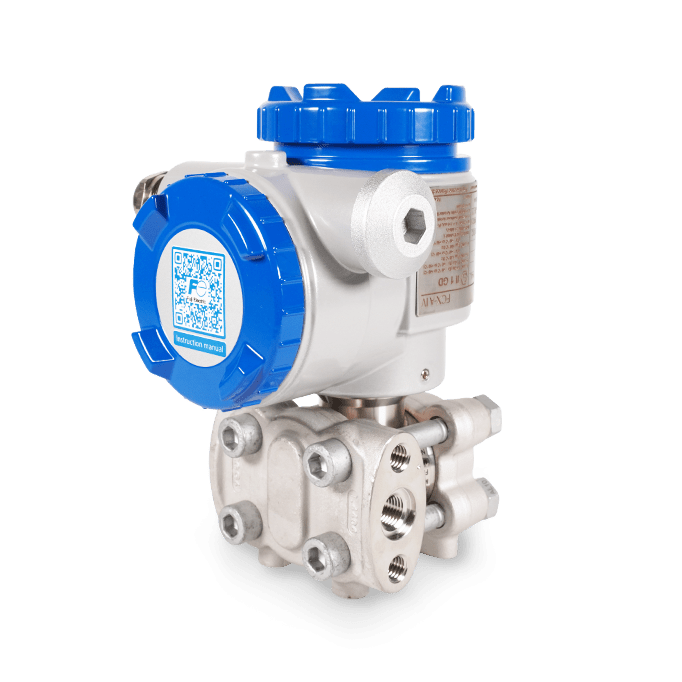

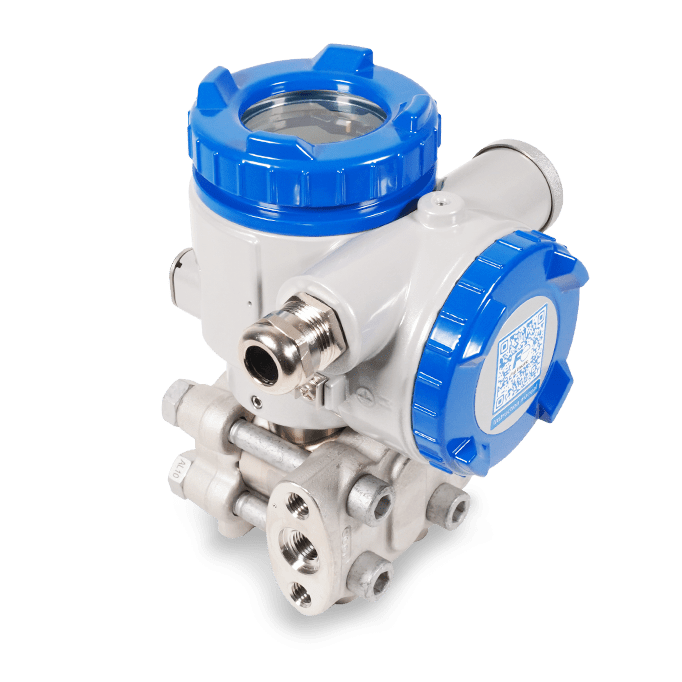

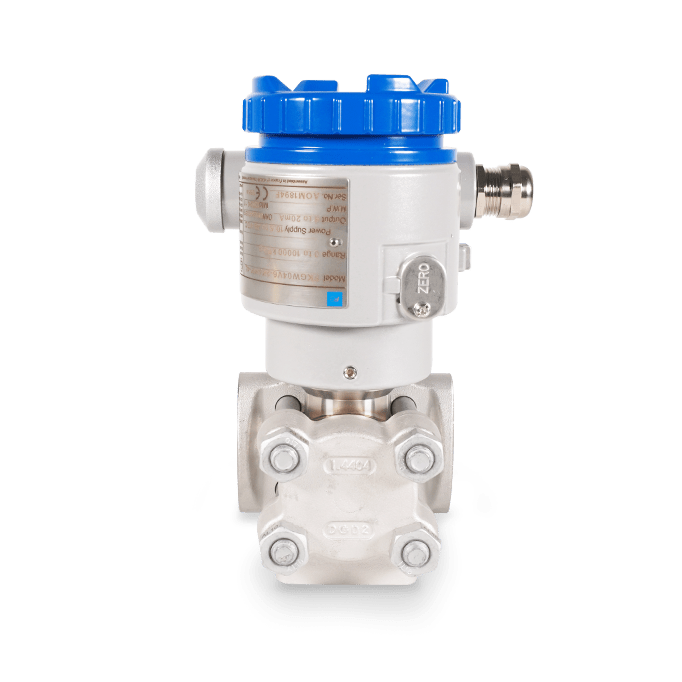

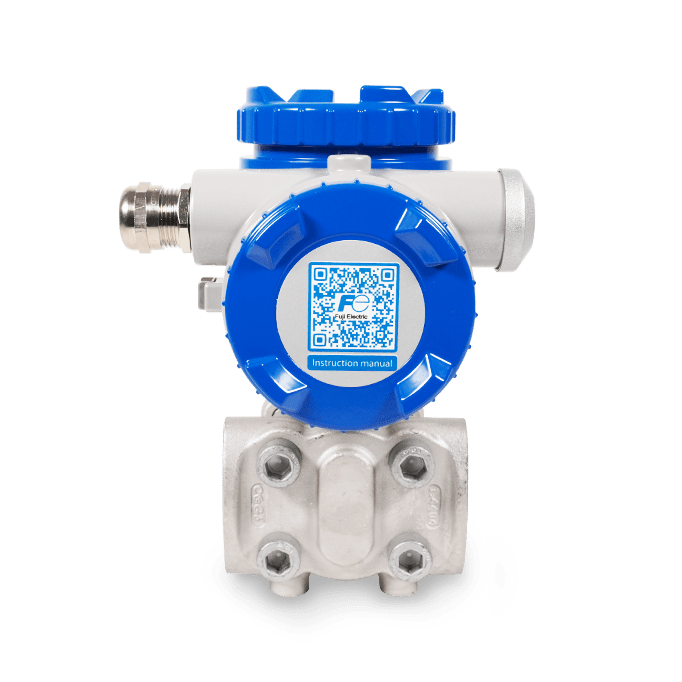

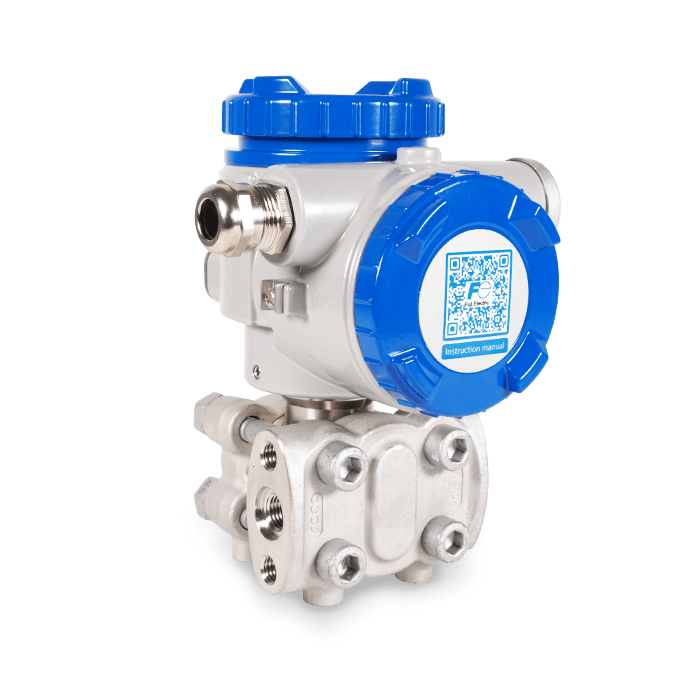

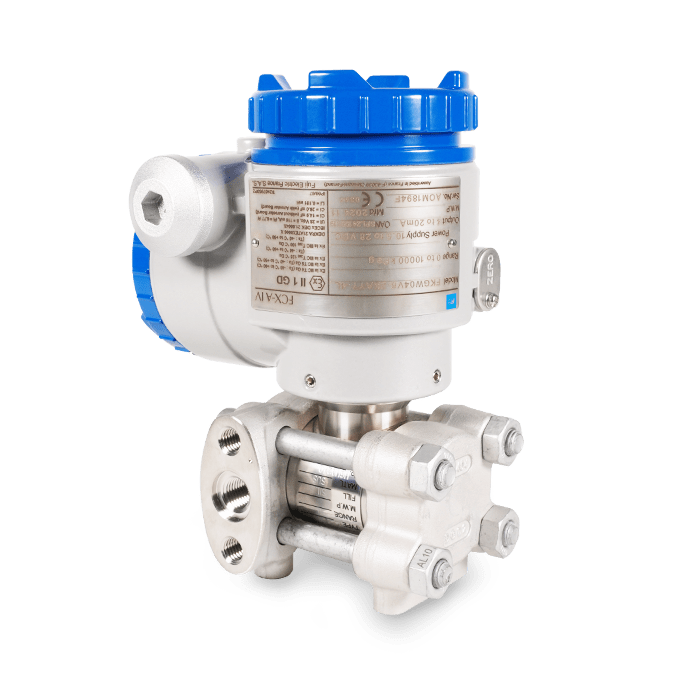

Gauge pressure transmitter - FKG

gauge pressure measurement

Fields of application

The FKG gauge pressure sensor can be used in a variety of industries to measure the pressure of any pressurized gas or fluid in pipes or vessels.

Benefits

  • High precision and reliability
  • Minimal environmental influence
  • Wide measurement ranges
  • Economical
Reference : FKG
Public price 1235 €
Discounts available on request Configure my product

Configure product

Features

The FCX-AIV family of FKG pressure transmitters precisely measures gauge pressure and converts it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer with a proven track record in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.



HousingL- or T-shaped housing
Measuring ranges (kPa) [e.max.]130
500
3000
10000
50000
Weight per kg (without indicator)2,9
Accuracy± 0.065% of the measurement range set as standard.
An accuracy of ±0.04% is also available as an option.
Materials in contact with the processStainless steel 316L, Hastelloy-C, Monel, Tantalue, Stainless steel 316L + Gilding, Monel coating, Tantalue coating
Case materialsLow-copper aluminum alloy with polyester coating or 316L stainless steel
Membrane materialsStainless steel 316L
Hastelloy-C
Monel
Tantalum
Stainless steel 316L and Gilding
Gilding and Ceramics
Stability± 0.1% of full scale for 10 years.
Elevation / DeletionFrom -100 to +100% of maximum scale
Scale setting range1 to 1/100 of maximum scale
Measurement cycle40 ms
Communication protocolHART™ 7 communication protocol
Process temperatureFrom +40° to +120°C (versions for higher temperatures are available)
Ambient temperatureFrom -40° to +85°C
Supply voltage10.5 to 45V DC
Output signal / Load resistance4-20 mA / 250 Ω typical
DampingConfigurable between 0.04 and 32 secs
Zero and span adjustmentVia external sensor screw, local three-button indicator or HART™ protocol
Electrical connectionsM20x1.5" / 1/2 - 14 NPT / Pg13.5
OptionsDigital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate
