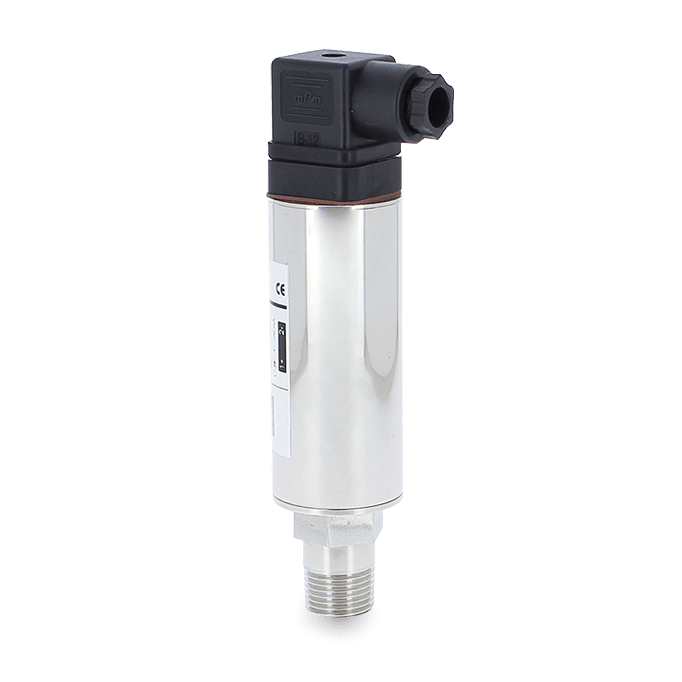

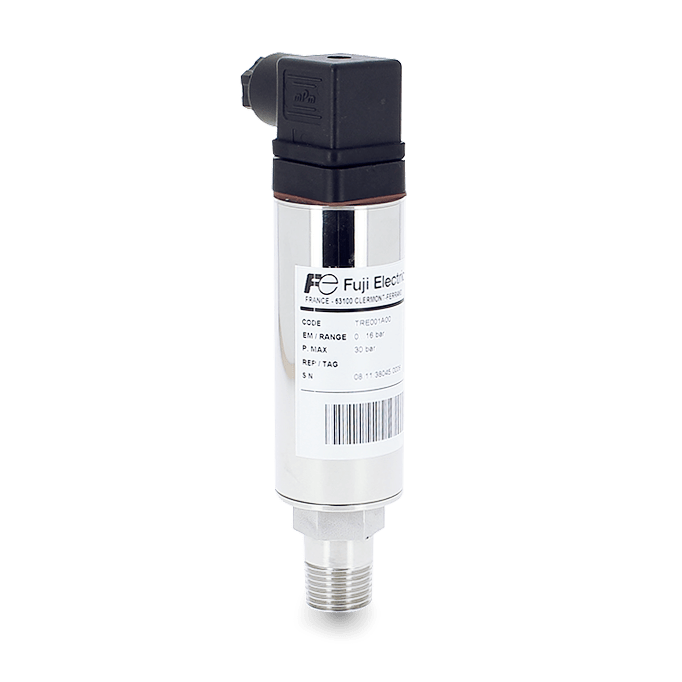

Gauge pressure transducer - TR

gauge pressure measurement

Fields of application

gauge pressure TR gauge pressure transducer for industrial applications requiring robust, repeatable, low-cost gas, liquid and vapor measurement devices.

Benefits

  • No special maintenance required
  • Compact sensor
  • Economical measuring device
  • Increased robustness and watertightness
Reference: TR 01
Public price 466 €
Discounts available on request Configure my product

Configure product

Features

4/20 ma, 2-wire gauge pressure (tr) sensor for industrial applications requiring robust devices and good repeatability.



Sensitive elementThick ceramic layer
Measurement range-1 to 400 bar
Reinforced maximum pressure1.5 to 750 bar
Output signal4-20 mA, 2 wires
Power supply12 to 28 Vdc
Fallback value≈ 3.7 mA or ≈ 25 to 27 mA (in the event of electrical failure of the cell)
Zero + slope adjustment± 3% (optional rangeability from 50 to 100% of measurement range)
LoadR(Ω)=(Ualim-12V)/0,02A
Maximum overall error≤ 0.2% EM (at 25°C)/
≤ 0.4% EM (at 25 °C)
Linearity + Hysteresis + Repeatability
Temperature drift± 0.03%/°C over measurement range
(T° compensation between 0 and 50°C)
Ambient temperature-20 to +70 °C
Fluid temperature-20 to +70 °C
Storage temperature-40 to +80 °C
ProtectionIP 65 (connector outlet)
IP 67 (cable outlet)
Process connectionsStainless steel 316 L
½" GM, 1/4" GM, 1/2" NPTM
Electrical connectionsConnector ISO4400 / DIN43650
Cable outlet 2 m
M12 connection (4 pins)
HousingStainless steel 316 L
Part in contact with the fluid316 L stainless steel + ceramic + FKM seal
(others: see datasheet)
Certifications and complianceATEX version (optional) : Intrinsic safety
Ex ia IIC T6 Ga (Ambient temperature between -30°C and +55°C)
Ex ia IIC T5 Ga (Ambient temperature between -30°C and +0°C)
Ex ia IIIC T80°C Da (Ambient temperature between -30°C and +55°C)
Ex ia IIIC T95°C Da (Ambient temperature between -30°C and +70°C)
Group - Category II - 1GD and I M1
