5-way manifold for differential pressure transmitter

Manifold for pressure transmitter differential: Isolates the pressure measurement sensor, calibrates the pressure probe and purges the liquid or gas.

Fields of application

Oil and gas, petrochemical and chemical industries, power generation, water and water treatment

Benefits

  • Long service life thanks to robust design
  • Reliability with enhanced safety even at high pressures
  • Versatility with additional fittings
  • Simplified maintenance and calibration
Reference : W7
Public price 496 €
Discounts available on request

Features

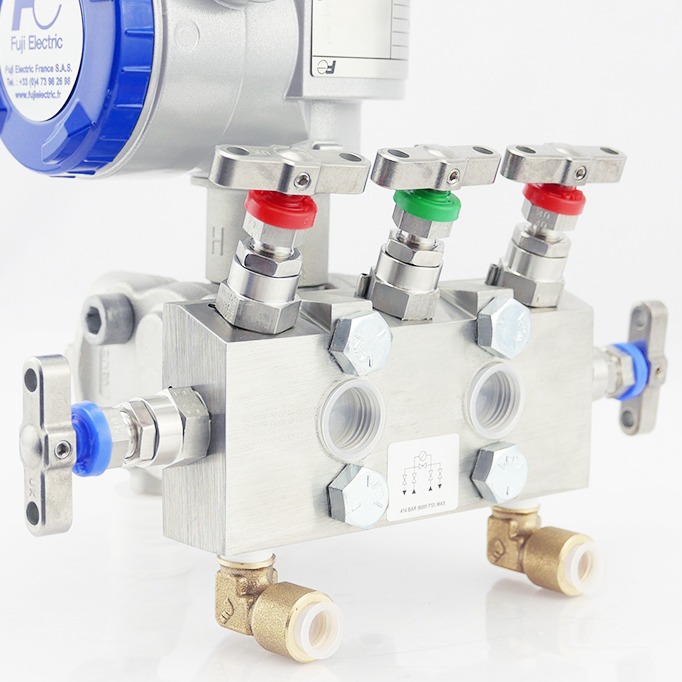

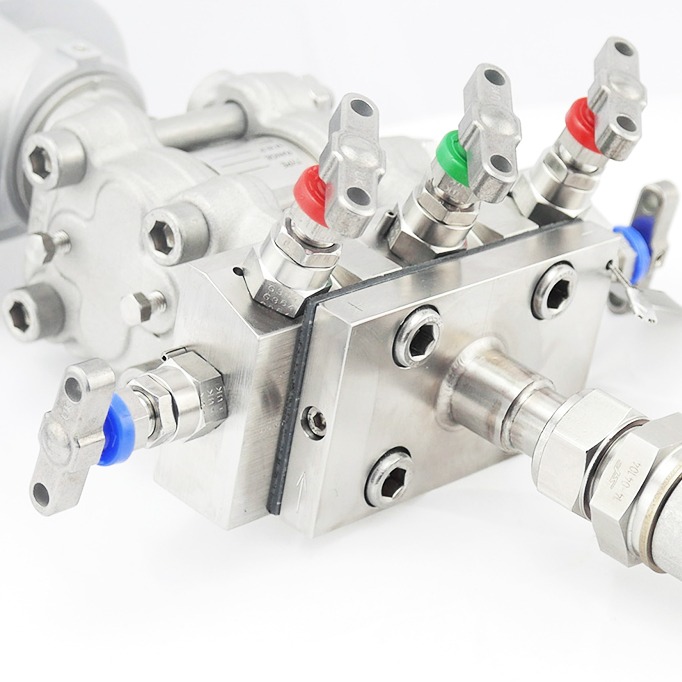

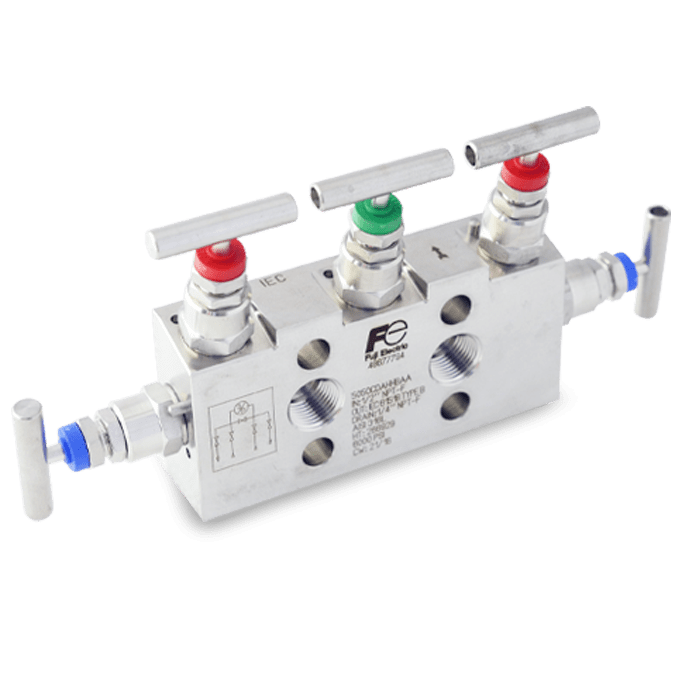

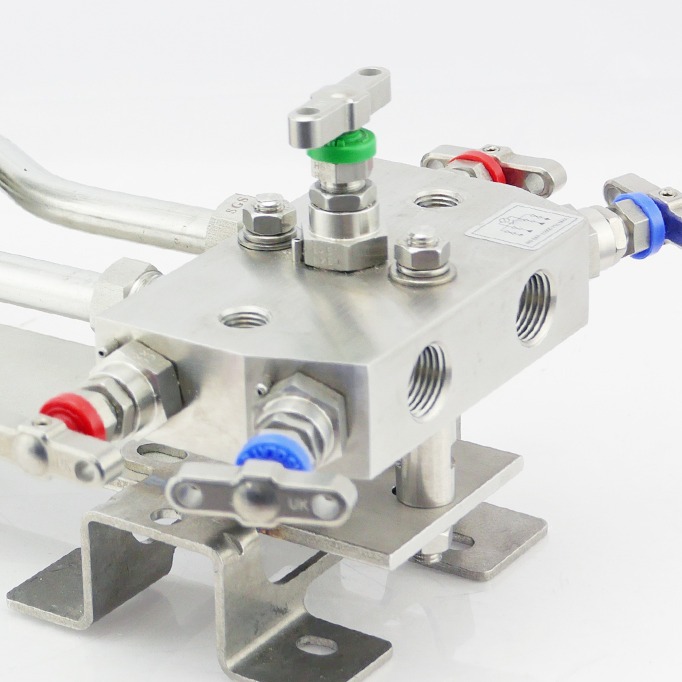

Compared to the 3-way version, the 5-way manifold incorporates two additional valves dedicated to venting. Each pressure channel has a specific valve, enabling operators to select venting of one or both pressure sides of the measuring device.

The design with a fixed stem that does not rotate reduces wear on sealing components, thus prolonging service life, particularly during repeated opening and closing. What's more, the valve's anti-ejection configuration enhances operating safety, making it particularly well-suited to high-pressure environments.

The 5-way manifold offers a complete solution for controlling the FKC differential pressure transmitter .

Designed for complex applications, it helps to secure and optimize the maintenance of measurement systems.

Its robustness and ingenious design facilitate installation and fluid management, guaranteeing safe, reliable operation even in extreme conditions.



Pressure414 bar (6000 Psi)
Material316 L STAINLESS STEEL
WaterproofingPTFE
ConnectionInput - 1/2" NPT female
ConnectionDirect mounting
MiscellaneousM10/Ø12 mounting holes
ApplicationsIsolation, pressure compensation, bleed and vent valves for differential pressure measuring instruments

For aggressive gaseous and liquid media that are not highly viscous or crystallizing, even in aggressive environments

Special featuresLow-wear design thanks to non-rotating spindle end in valve bonnet
Low torque and smooth operation of the valve handle, even at high pressure
Enhanced safety thanks to anti-ejection design of the valve bonnet
Combination of valve and hook-up on request
Standardized 54 mm center distances, suitable for
for commonly used process transmitters
