Electrical energy metering
Fields of application
It is the ideal electrical measurement device for measurement and energy management applications on single-phase and three-phase low- and medium-voltage electrical networks, transmitting data via its RS485 digital output to a supervision or energy management system.
Features
| Connection | Input voltage | Terminal block connector type (applicable wire size: ≤ 2.5 dia, 0.5 - 3.5 mm², stripped length 7 - 8 mm) |
| Current input | Screw terminal block (applicable wire size ≤ 2.4 dia, 0.5 - 3.5 mm², stripped length 13 - 15 mm) | |
| Discrete input, discrete output, analog output, Modbus®, auxiliary power supply | Terminal block connector type (applicable wire size: ≤ 2.4 dia, 0.5 - 2.5 mm², stripped length 7 - 8 mm) | |
| Configuration | Single-phase/2-wire and 3-wire, three-phase/3-wire balanced/unbalanced load, three-phase/4-wire balanced/unbalanced load | |
| Housing material | Fire-retardant resin (grey) | |
| Insulation | Voltage input, current input, discrete input, discrete output, Modbus® or configurator socket, analog output, auxiliary power supply | |
| Measured variables | Voltage | 1 - N, 2 - N, 3 - N, 1 - 2, 2 - 3, 3 - 1 |
| Current | 1, 2, 3, N | |
| Active / reactive / apparent power | 1, 2, 3, Σ | |
| Power factor | 1, 2, 3, Σ | |
| Voltage phase angle | 1 - 2, 2 - 3, 3 - 1 | |
| Active energy | Incoming / outgoing / high rate (peak) / low rate (off-peak) | |
| Reactive energy | In / out / late / early / high rate (peak) / low rate (off-peak) | |
| Harmonic content | Σ, from 2 to 31 | |
| Counting time | High rate/low rate | |
| Request history | 1 à 4 | |
Technologies
Cut costs and increase your business' eco-efficiency with electricity metering – it's easier than you think! Discover our solutions to save money now.
Are you looking for an electrical energy meter to manage your electricity consumption? The 53U is the ideal meter for efficient energy management.

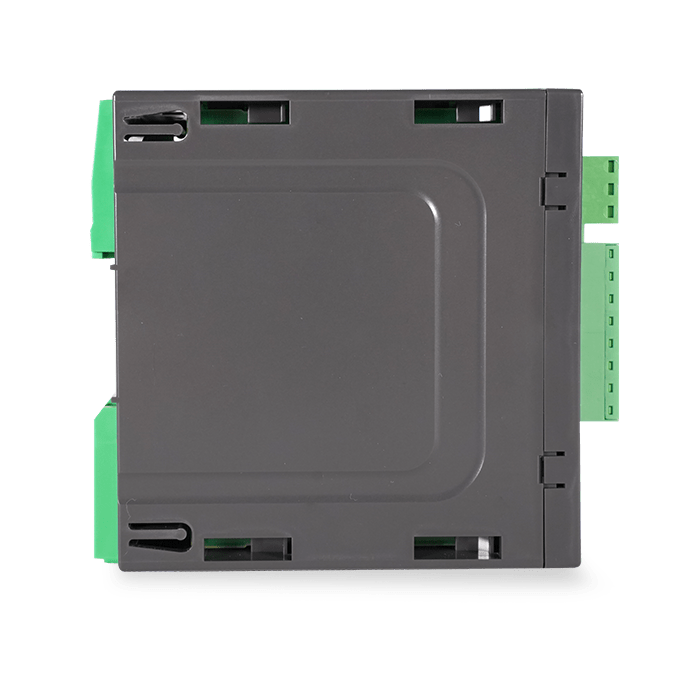

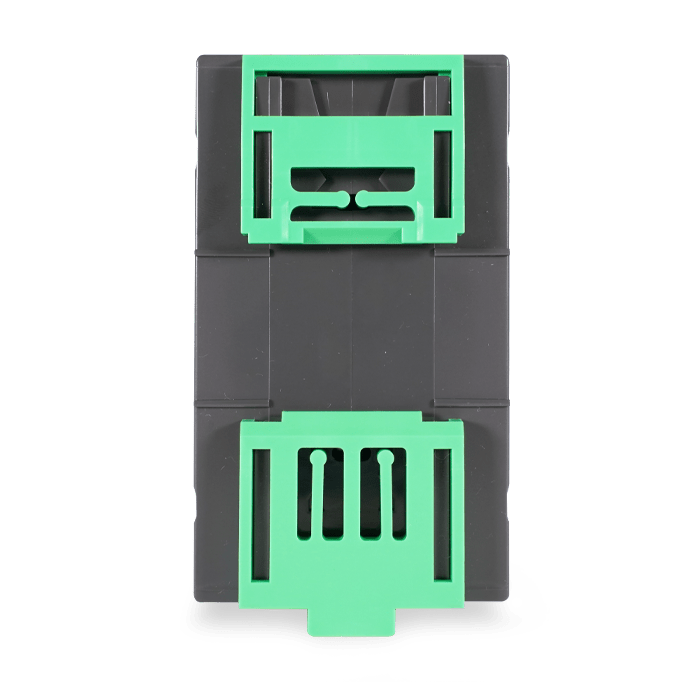

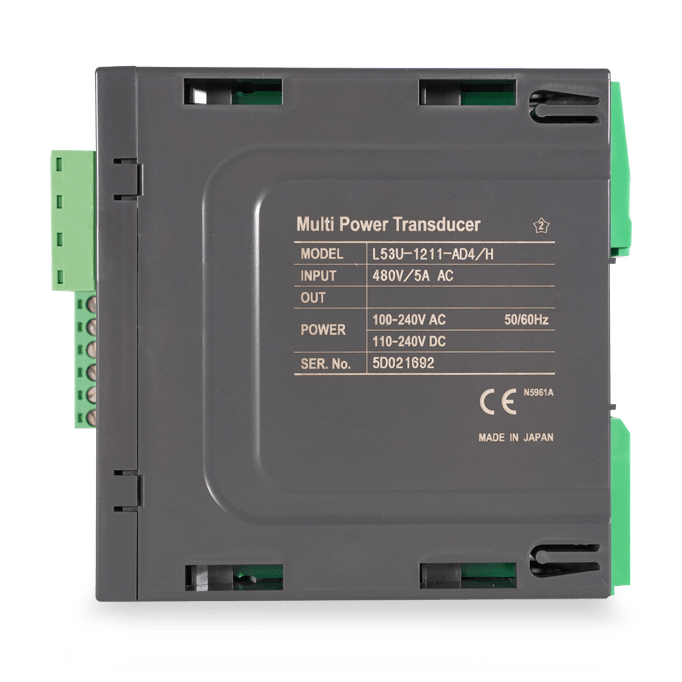

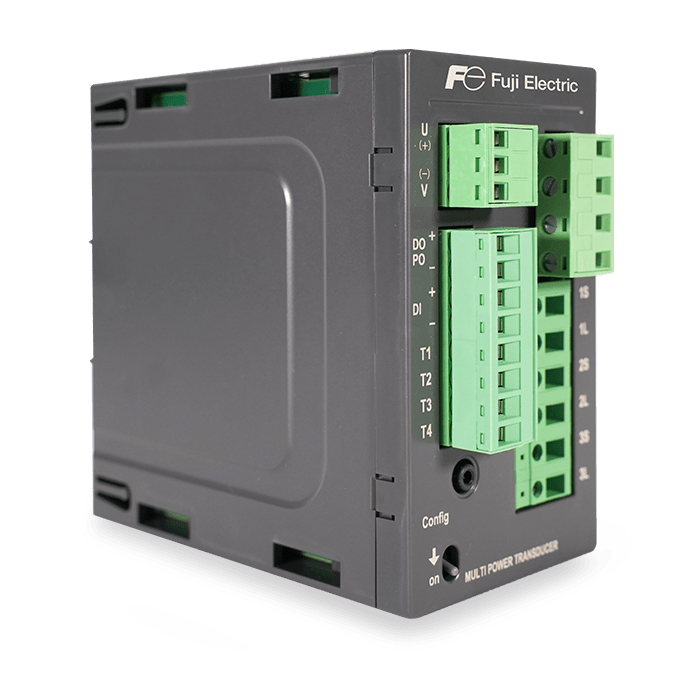

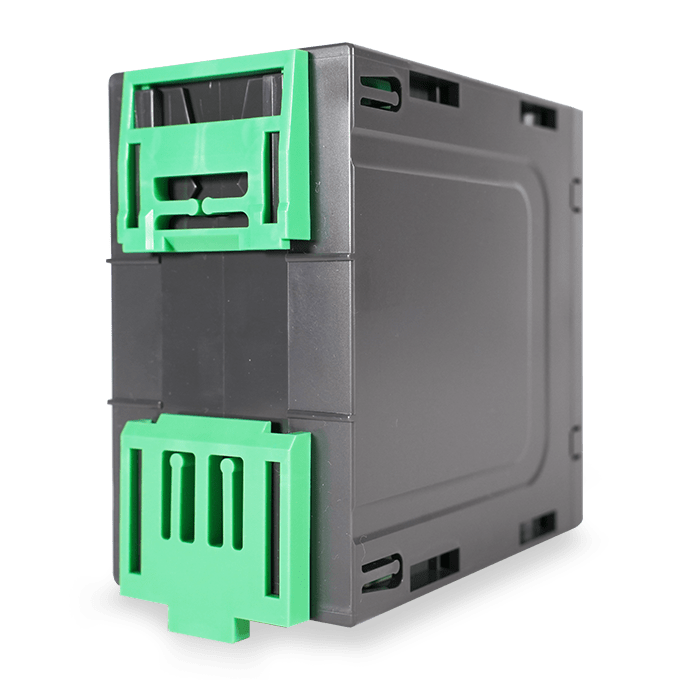

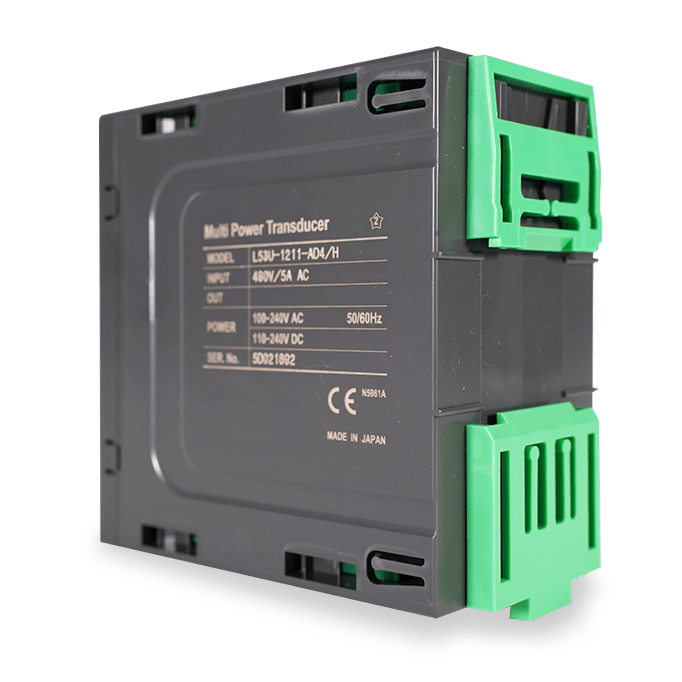

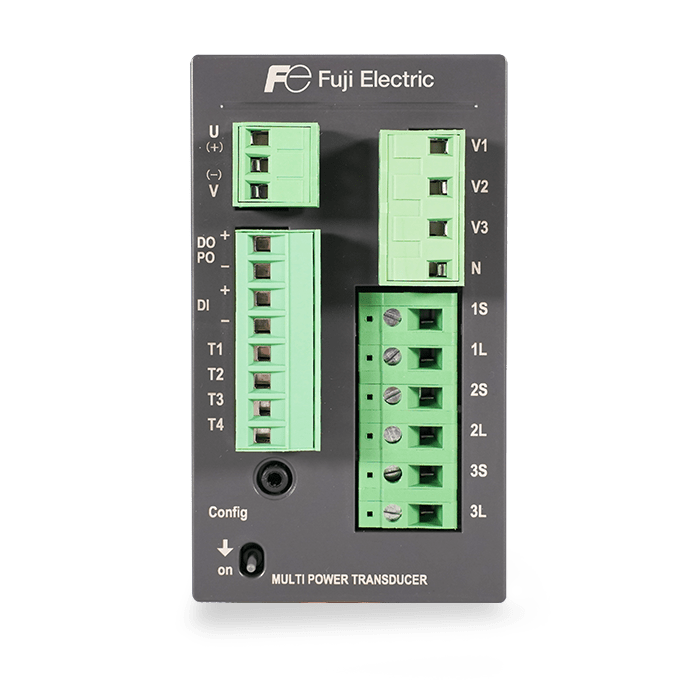

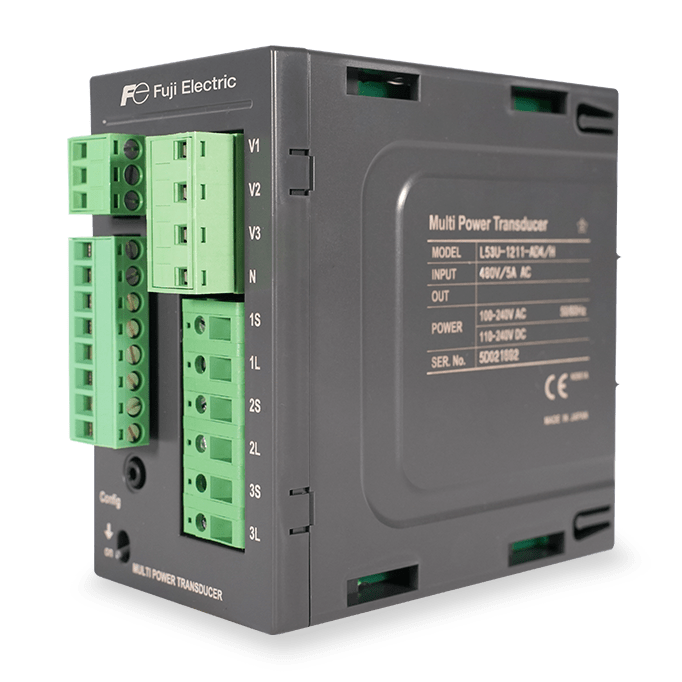

Electric energy meter - L53U - DIN rail
Reference : L53U-1211-AD4
