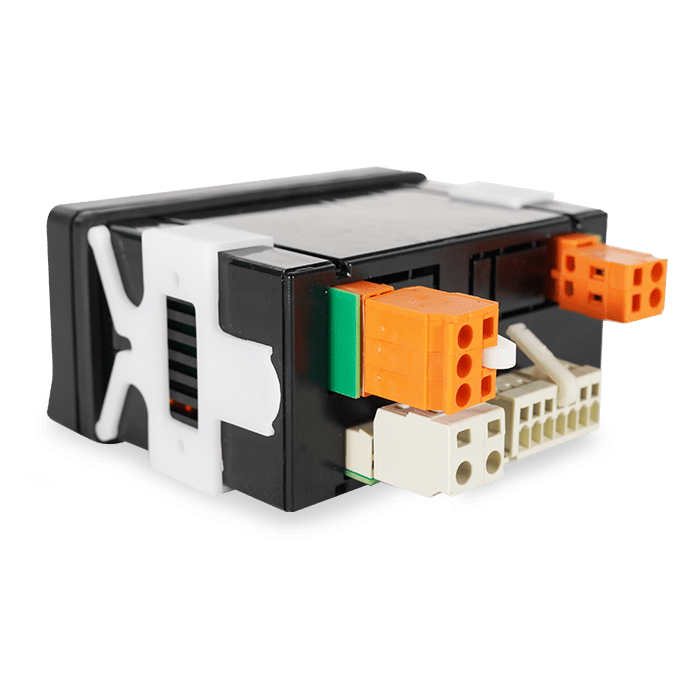

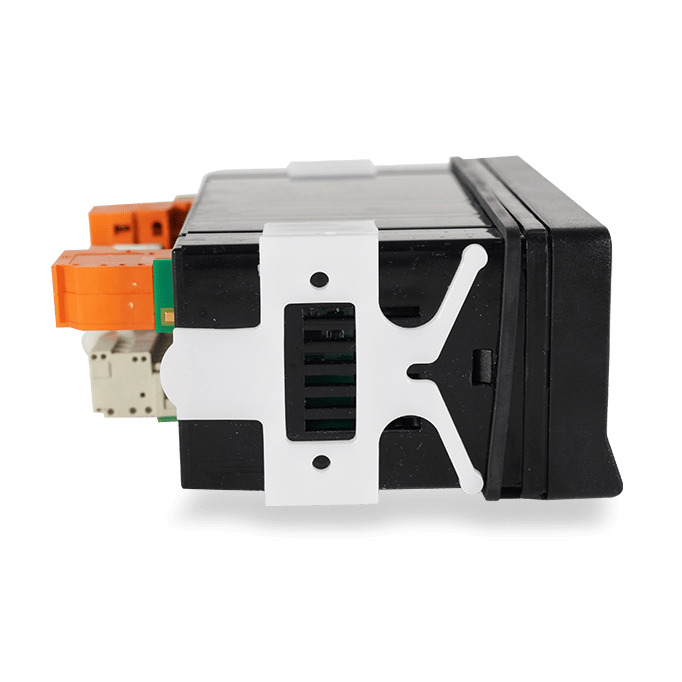

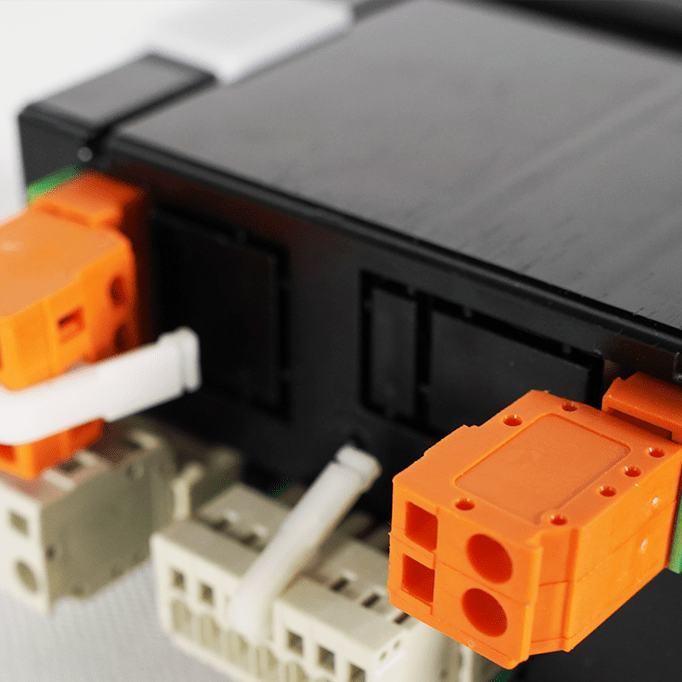

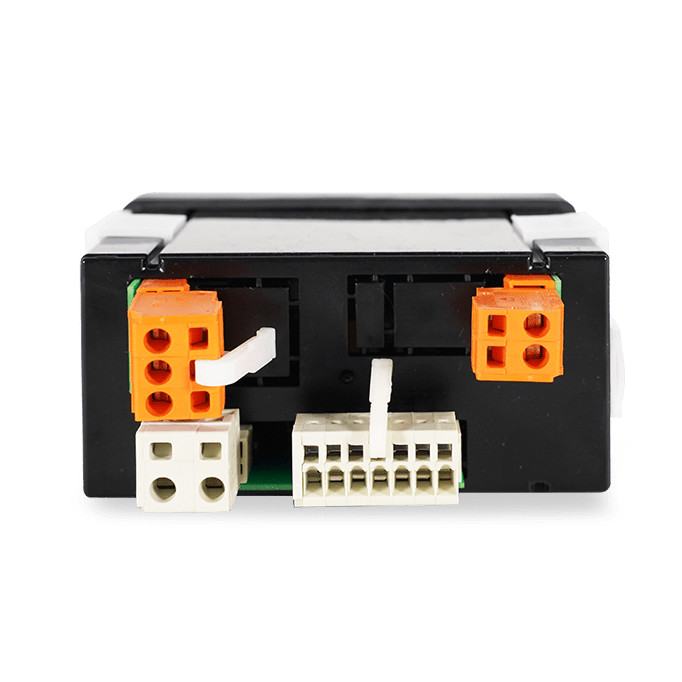

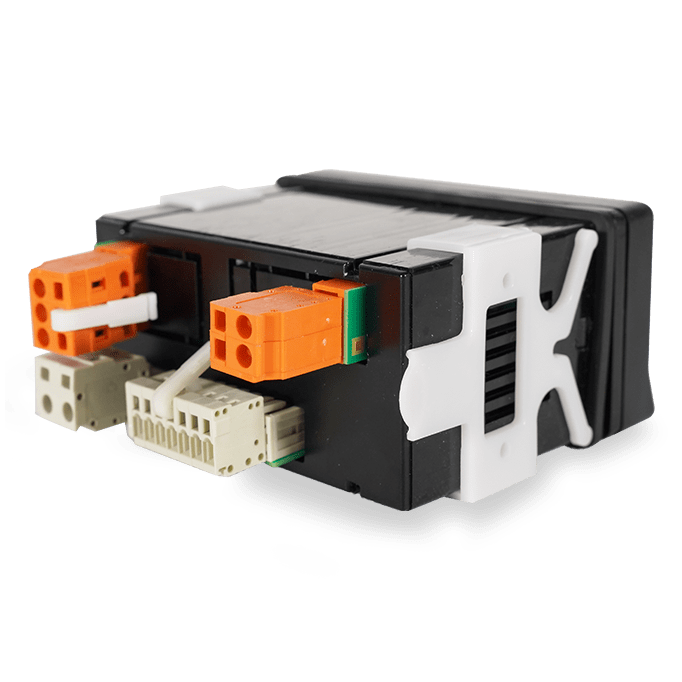

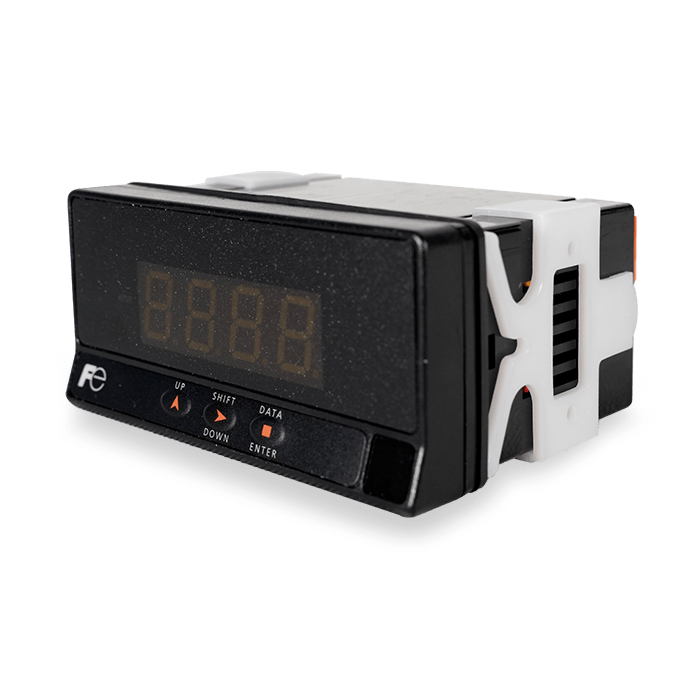

Low-cost digital panel meter
Fields of application
Industrial digital panel meters are used for applications that require a dynamic and interactive display in different industrial areas.
Features

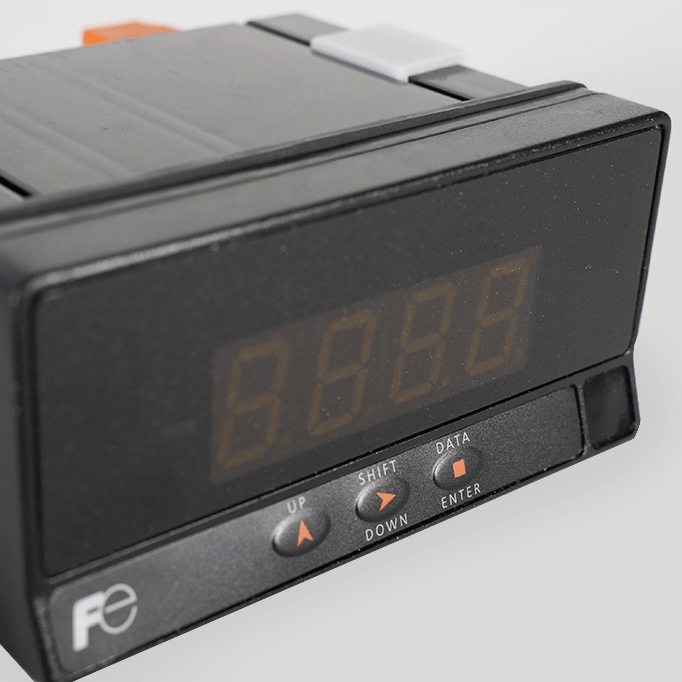

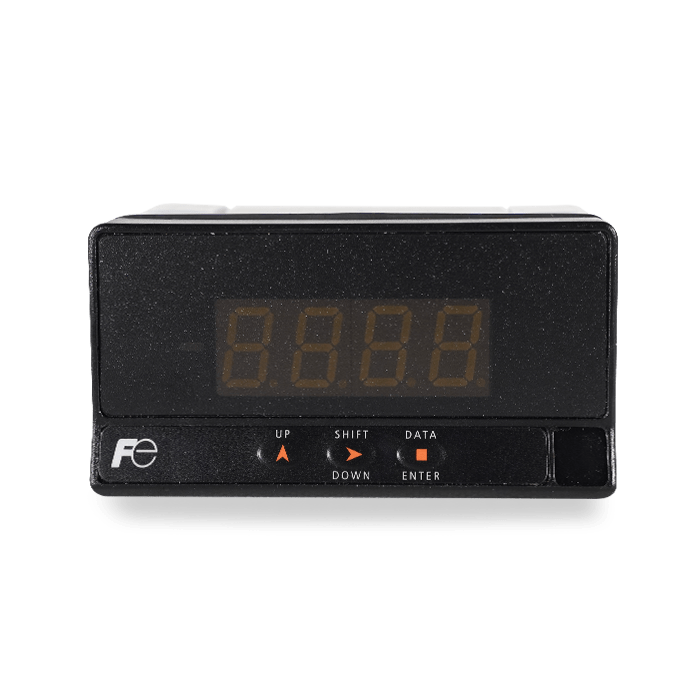

The FD2581 accepts a wide variety of measurement signals: Process (mA, V), temperature Pt100 probe, or thermocouple. It provides a 4-digit display (white LED, 14 mm high) of the measured value after conversion to the user-configured scale. Fully programmable, the input type can be selected via the front panel. The FD2581 features an external 24V DC power supply to power a sensor. It is available as standard with a relay output and a 4-20 mA analog output.
| Accuracy | Temperature coefficient | 100 pmm/°C |
| Warm-up time | 5 minutes | |
| Power supply | 20-265 VAC 50/60 Hz and 20-265 VDC | |
| Consumption | 4,5 W | |
| Excitement | 24 Vdc ±3V @ 30 mA | |
| A/D conversion | Technical | Sigma-Delta |
| Resolution | 16 bits | |
| Conversion rate | 20/s | |
| Resolution digital display | -9999/9999, 14 mm LED white | |
| Operating temperature | -10 °C to +60 °C | |
| Storage temperature | +25 °C to +85 °C | |
| Relative humidity (non-condensing) | <95 % à 40 °C | |
| Max. altitude | 2000 m | |
| Front sealing | IP65 | |
| Dimensions | 96 × 48 × 60 mm | |
| Panel cutting | 95 × 45 mm | |
| Weight | 150 g | |
| Housing material | Polycarbonate s/UL 94 V-0 | |
