portable infrared gas analyser with sampling - ZSVF

Portable multi-gas analysis

Fields of application

Suitable for flue gas monitoring, biogas analysis, waste incinerators and thermal metal treatment furnaces, for plant cultivation and chemical analysis for Research.

Benefits

  • Portable system with integrated pump, filter and flowmeter
  • CP calculation, O2 correction, corrected O2 average

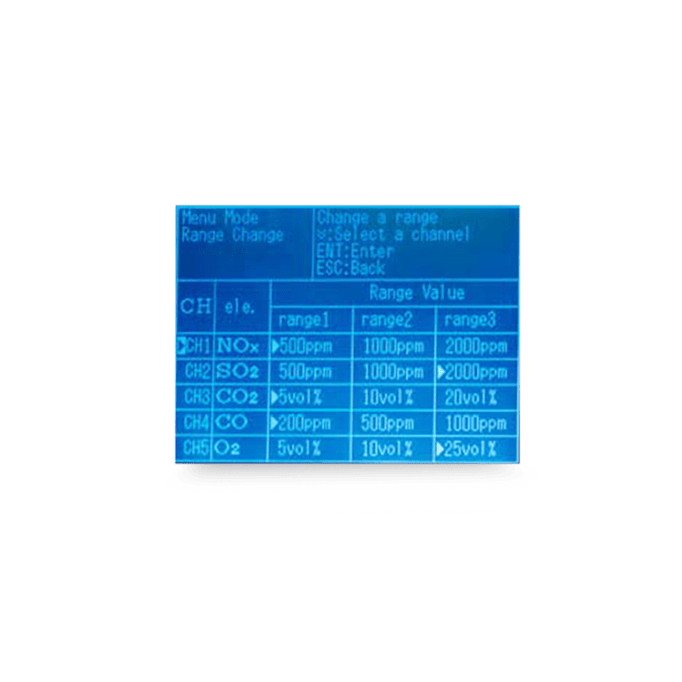

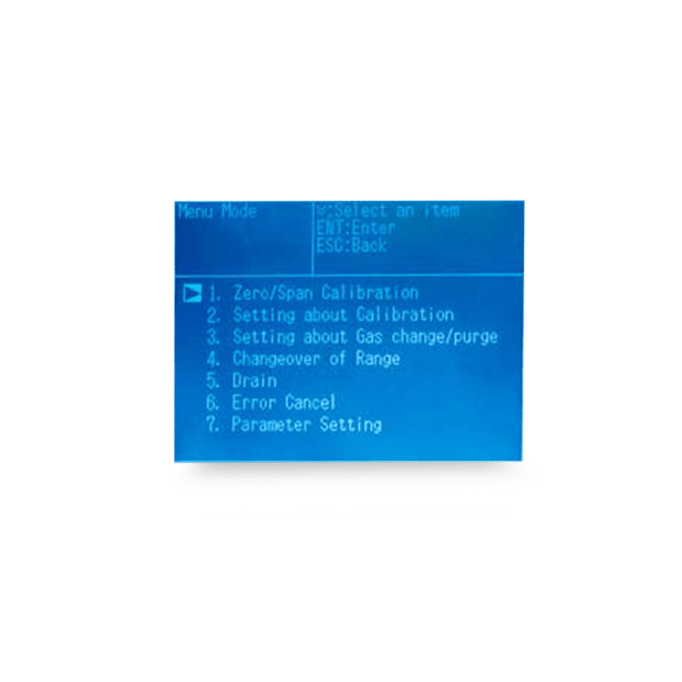

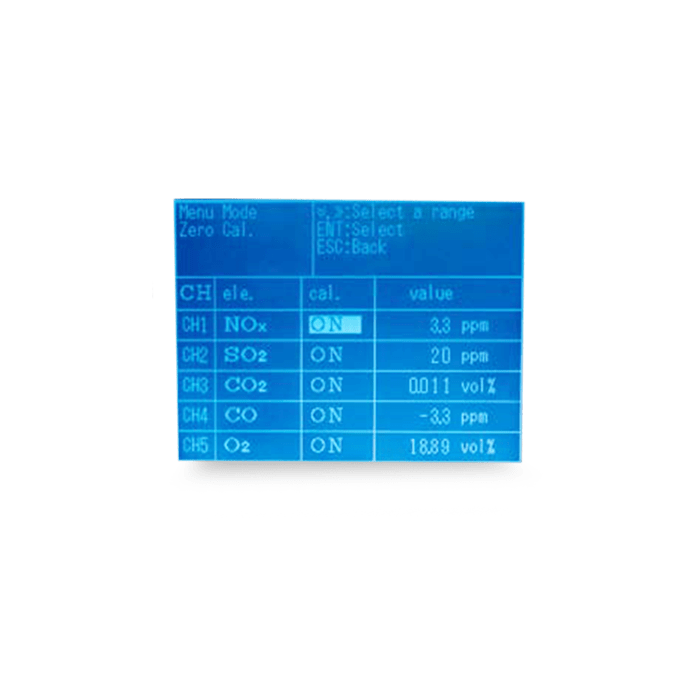

  • Large LCD display
  • Single-beam system: long-term stability and reduced maintenance
Reference : ZSVF
Please contact us

Features

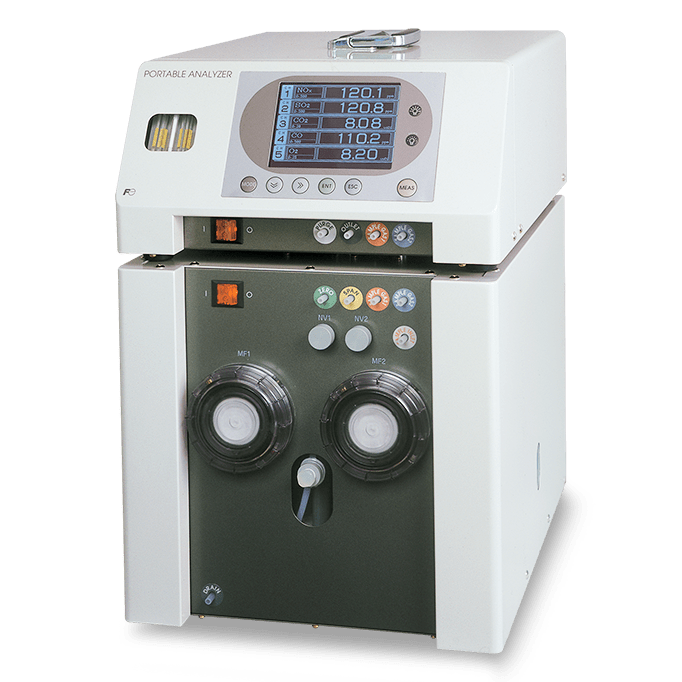

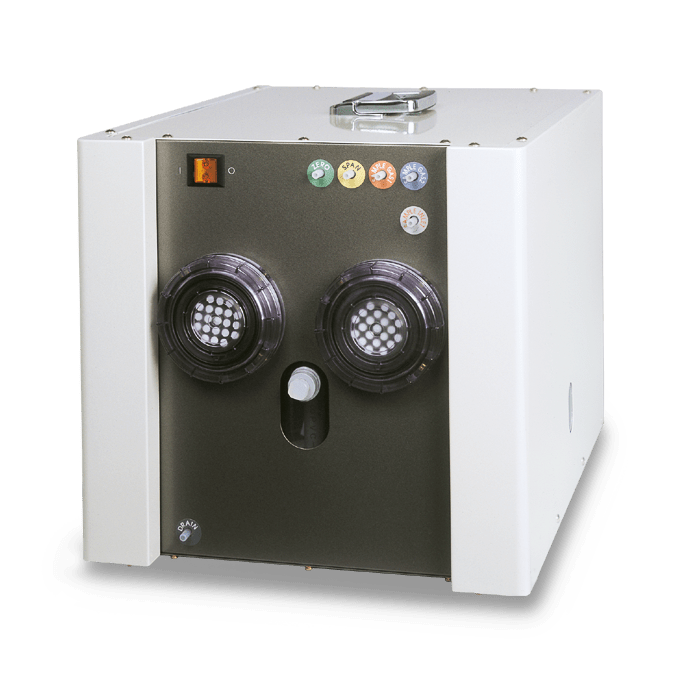

The compact gasanalyser (ZSVF) consists of an analysis block (non-dispersive infrared optical bench and oxygen sensor) and a sampling block. For gas sampling, a simplified sampling probe (portable type) or a continuous sampling probe (fixed mounting) can be selected as an option. Since infrared single-beam measurement is based on a high-sensitivity mass flow sensor, long-term stability and maintainability are excellent. This analyser is capable of simultaneously measuring up to 5 components from Nox, CO, CO2, CO, CH4 and O2. It is used for flue gases from stationary emission sources such as boilers, waste incinerators and heat treatment furnaces, as well as for plant cultivation and chemical analysis for research purposes.

NO CE



Measurable componentsNOx, SO2, CO2, CO, CH4, O2
Measuring principleNDIR single beam + cell
Electrochemical or paramagnetic O2
Measurement rangeNOX0 ... 500 ... 5 000 ppm
SO20 ... 500 ppm ... 1% of the value
CO20 ... 200 ppm ... 100%.
CO0 ... 200 ppm ... 100%.
CH40 ... 1000 ppm ... 100%.
O20 ... 5/10/25%
Repeatability≤ ± 0.5% PE
Analog outputs4-20 mAcc or 0-1 Vcc
Instantaneous value, corrected instantaneous O2 value, corrected average O2 value, CP calculation
CommunicationRS-232C Modbus®
Supply voltage100-115 Vac or 200-240 Vac, 50/60 Hz
DimensionsAnalyzer: 365 (W) × 211 (H) × 514 (D) mm
Sampler: 365 (W) × 377 (H) × 514 (D) mm
WeightAnalysis unit: approx. 12 kg
Sampling unit: approx. 18 kg
Sampling probe (option)Flange-mounted or portable type

Documentation

Manual: Installation of the ZSV portable infrared gasanalyser

Manuals Download

Manual: ZSV infrared portable gas analyser Modbus communication

Manuals Download

Manual: portable infrared gas analyser with ZSVF sampling

Manuals Download

datasheet : portable infrared gas analyser with ZSVF sampling

Specifications Download

Brochure: gas analysers , reliable solutions for analysis

Brochures Download

Brochure: Measures for energy and the environment

Brochures Download
