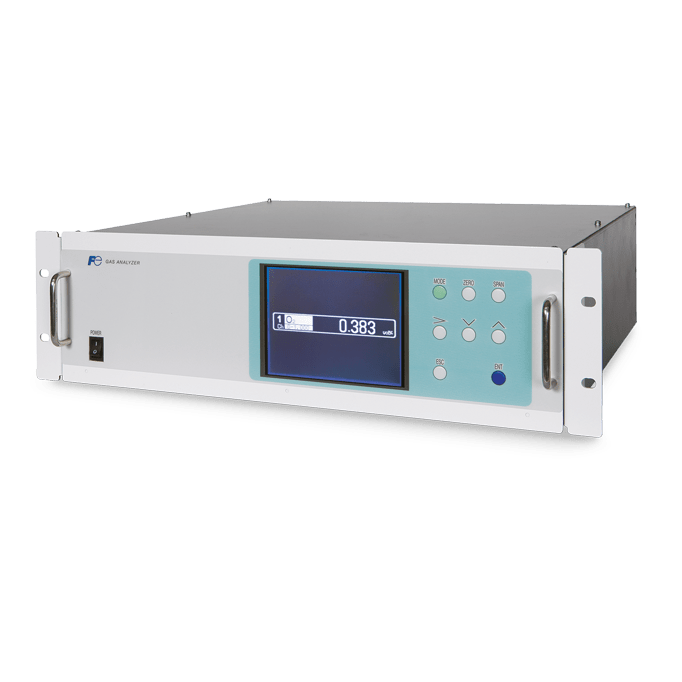

Paramagnetic oxygengas analyser - ZAJ

Measurement of oxygen concentration in flue gases

Fields of application

Reliable process control for furnaces, metallurgy, semiconductor industry and gas separation.

Benefits

  • Fast response in under 2 seconds
  • Precise, stable measurements with low sensitivity to interference
  • Very long (>12 years) sensor life, no contact with process gas
  • Robust, corrosion-resistant ZAJ paramagnetic technology with no moving parts
Catalogue number : ZAJ-6
Public price 14379 €
Discounts available on request Configure my product

Configure product

Features

This analyser enables continuous measurement of the oxygen concentration in a gas mixture using the magnetic property of oxygen. Compared with other oxygen measurement systems, the ZAJ-6 offers faster response, and minimal influence of other compounds in the gas mixture. What's more, it's easy to use, thanks to a host of features such as customizable scale settings and intuitive operation. The ZAJ-6 can be used in a variety of sectors (furnace control for heat treatment, combustion furnaces, etc.).



Measuring principleParamagnetic (pressure sensing)
Measurement scalesWith reference gas N20...0.5....100 % O2 (configurable)
With reference gas Air21...23... 100% O2 (configurable)
With reference gas 100% O2100...98... 0% O2 (configurable)
Number of scales2
Repeatability≤ ±1 %PE
Linearity≤ ±1 %PE
Response time (for 90%)≤ 2 s
Analog output4-20 mA DC
Contact outputs (option)6 SPST-NO contacts: calibration in progress, etc.
4 SPOT contacts: high/low limit alarm, etc.
Contact inputs (optional)Remote scale change,
remote measurement hold
DisplayBacklit LCD
Communication (optional)RS-485 (Modbus®)
Installation19" rack, panel or table mounting
Supply voltage85-264 VAC, 50/60 Hz

Documentation

Certificate: EU declaration of conformity paramagnetic oxygen analyser ZAJ

Certificates Download

Certificate: UKCA paramagnetic oxygen analyser ZAJ

Certificates Download

Manual: ZAJ paramagnetic oxygen analyser

Manuals Download

datasheet : paramagnetic oxygen analyser ZAJ

Specifications Download

Brochure: gas analysers , reliable solutions for analysis

Brochures Download

Flyer : Measure oxygen under harsh industrial conditions

Flyer Download

Brochure: Measures for energy and the environment

Brochures Download

Technologies

  • Paramagnetic oxygen analyser

    Paramagnetic oxygen analyser

    Fuji Electric's paramagnetic oxygenanalyser is a fast, reliable instrument for measuring oxygen concentration in combustion gases.
