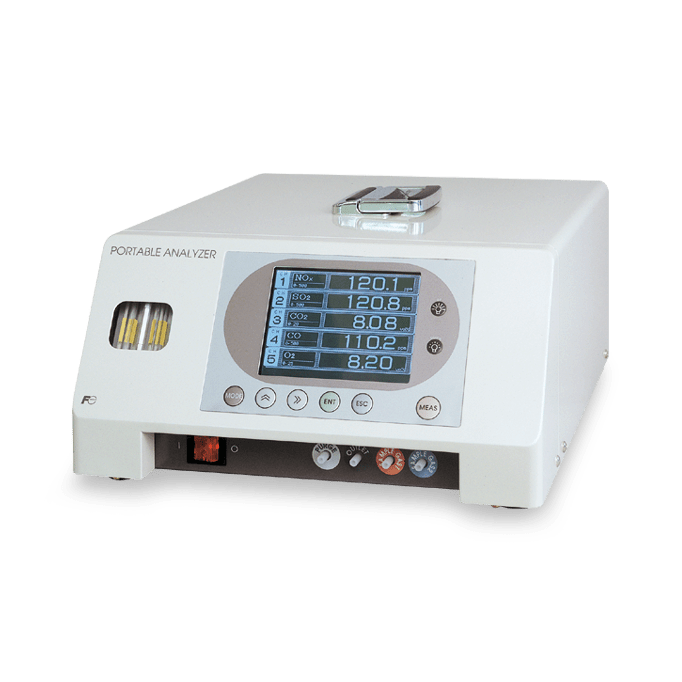

portable infrared gas analyser - ZSVS

Portable multi-gas analysis

Fields of application

Suitable for flue gas monitoring, biogas analysis, waste incinerators and thermal metal treatment furnaces, for plant cultivation and chemical analysis for Research.

Benefits

  • Portable system with integrated pump, filter and flowmeter
  • CP calculation, O2 correction, corrected O2 average

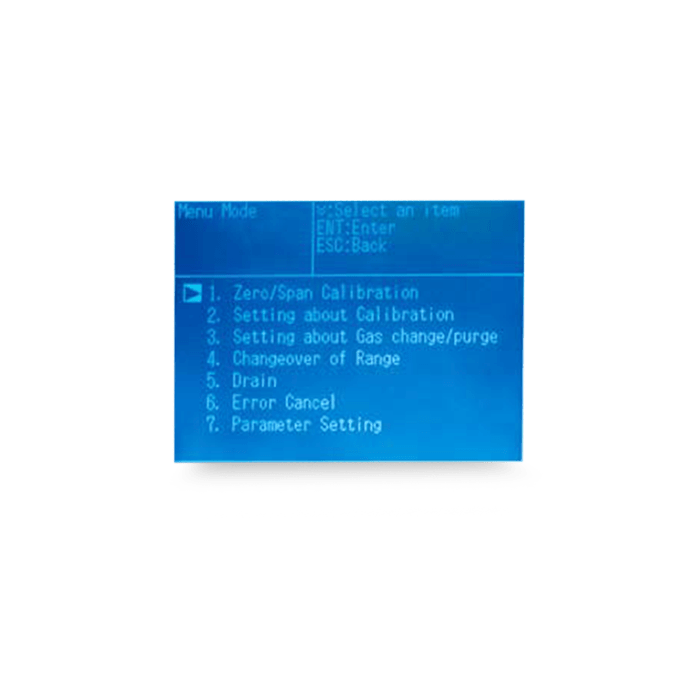

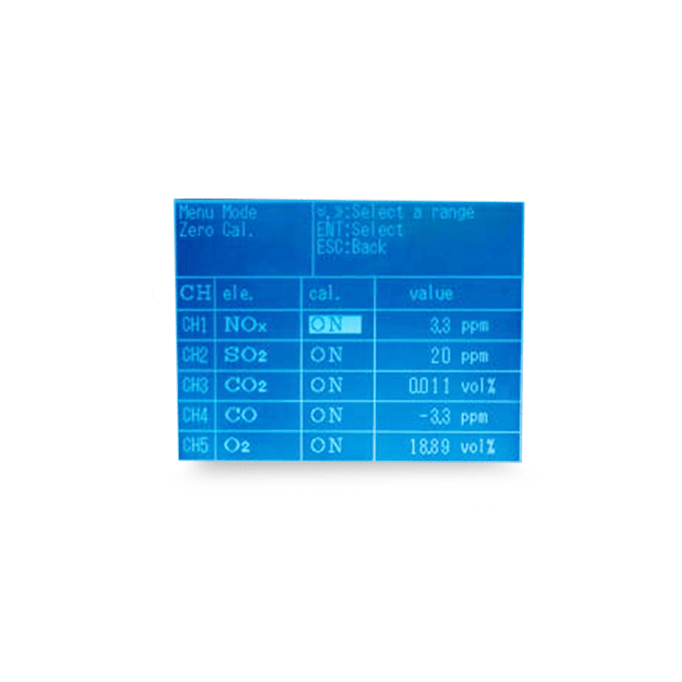

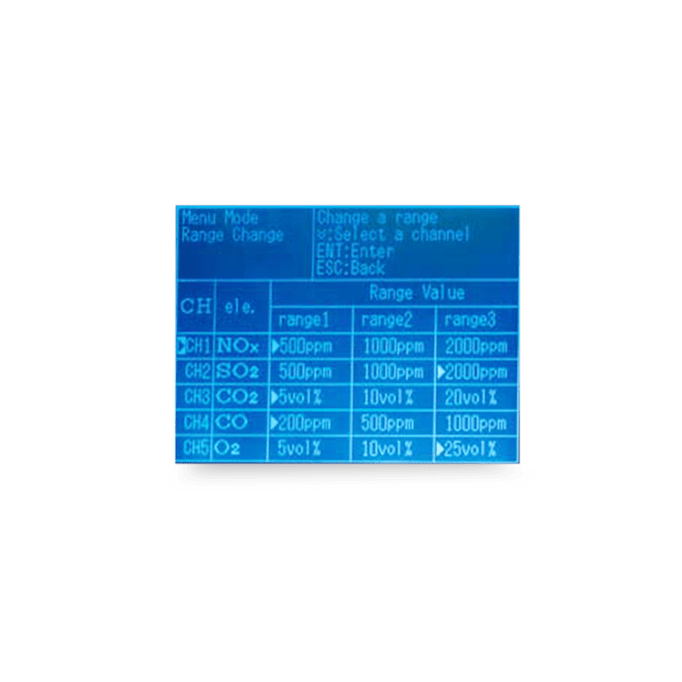

  • Large LCD display
  • Single-beam system: long-term stability and reduced maintenance
Reference : ZSVS
Please contact us

Features

The compact gasanalyser with integrated pump and filter is designed for heat treatment furnaces, plant cultivation and chemical analysis for research purposes. For gas sampling, a simplified sampling probe (portable type) or a continuous sampling probe (fixed mounting) can be selected as an option. Since infrared single-beam measurement is based on a highly sensitive mass flow sensor, long-term stability and maintainability are excellent.

NO CE



ComponentsCO2, CO, CH4, O2
PrincipleSingle-beam NDIR + electrochemical O2 sensor
Measurement scalesCO2 : 0 ... 200 ppm ... 100
CO : 0 ... 200 ppm ... 100
CH4 : 0 ... 1000 ppm ... 100
O2 : 0 ... 5/10/25%
Repeatability≤ ± 0.5% PE
Zero drift≤ ± 1% PE per day
Scale drift≤ ± 1% PE per day
Response time (for 90%)≤ 50 s
Analog outputs4-20 mAcc or 0-1 Vcc
CommunicationRS-232C Modbus®
Standard functionsCP calculation, O2 correction, corrected O2 average, automatic lighting shutdown
DisplayBacklit LCD
Supply voltage100-115 Vac or 200-240 Vac
Dimensions365 (W) × 211 (H) × 527 (D) mm
