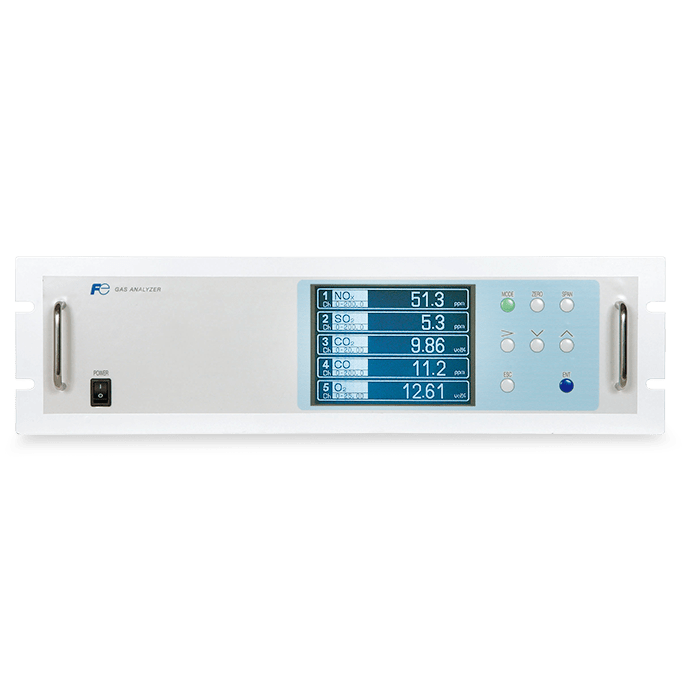

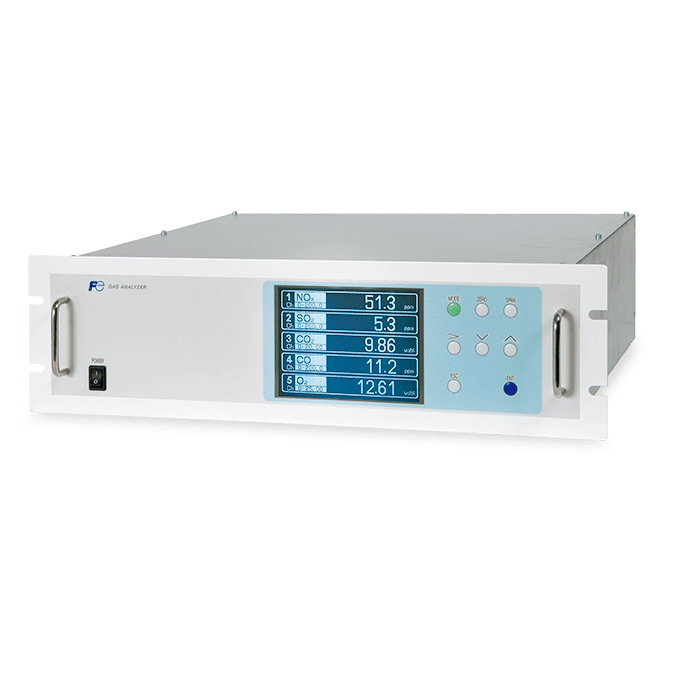

infrared gas analyser - ZPA

Simultaneous and continuous gas measurement

Fields of application

Measurement of waste combustion exhaust gases from boilers and incinerators or gases from various industrial furnaces.

Benefits

  • High sensitivity
  • Easy maintenance
  • Compact and lightweight
  • Various optimum functions available: auto-calibration control, atmospheric pressure correction, alarms for high and low concentrations, remote scale change, etc.
  • Easy to use
Reference : ZPA
Please contact us

Features

This gas analyser (ZPA) is used to measure gas concentrations of NO, SO2, CO2, CO, CH4 and O2. NO, SO2, CO2, CO and CH4 are measured by non-dispersive infrared, while O2 is measured by the electrochemical, paramagnetic or zirconia method. Optimum use as an analysis unit for measuring waste combustion exhaust gases from boilers and incinerators, or gases from various industrial furnaces.



Measurable componentsNO, SO2, CO2, CO, CH4 and O2
Measuring principleNon-dispersive infrared absorption method.
Single source and beam
NO, SO2, CO2, CO, CH4
Electrochemical or paramagnetic method (measuring element incorporated in theanalyser) or zirconia methodO2
Repeatability±0.5% of full scale
Linearity1% of full scale
Before correction for atmospheric pressure (optional)
Zero drift±2% of full scale/week
Auto zero calibration required for
scale ≤ 500 ppm.
Scale drift±2% of full scale/week
Response time (for 90% of full scale)Electrical response: 1 to 15 sec
Between 10 and 30 sec including cell purge time. This time depends on the number of gases measured and their scales.
Power supplyVoltage100 V to 240 V AC
Scale range85 V to 264 V AC
Frequency50Hz/60Hz
Operating temperature-5°C to 45°C (40°C for 2 optical benches
at 200 VA AC)
Operating humidityMax. 90% RH (non-condensing)
HousingSteel for indoor mounting
ColorFront panel; light gray (PANTON 1C-F)
Display4-digit digital display
(LED backlit LCD)
Dimensions133 × 483 x 382 mm (HxWxD) ;
(19" rack mount)
Weight11 kg
