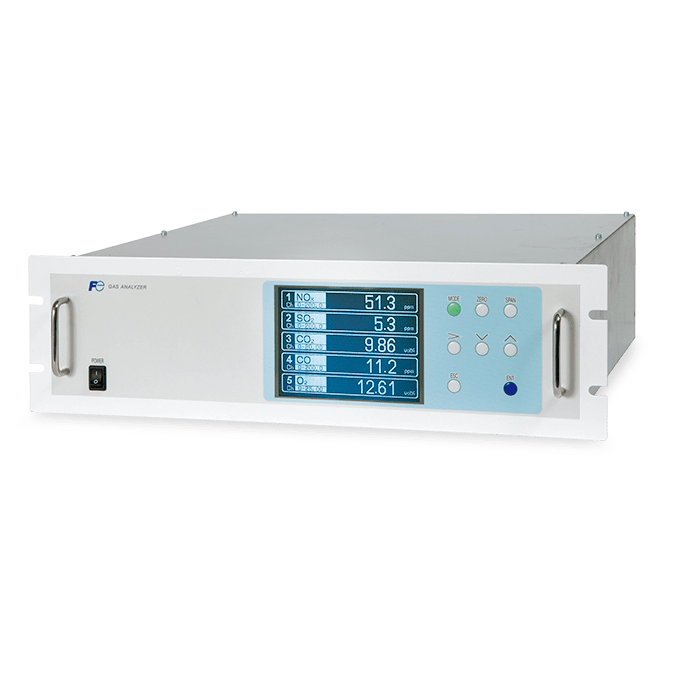

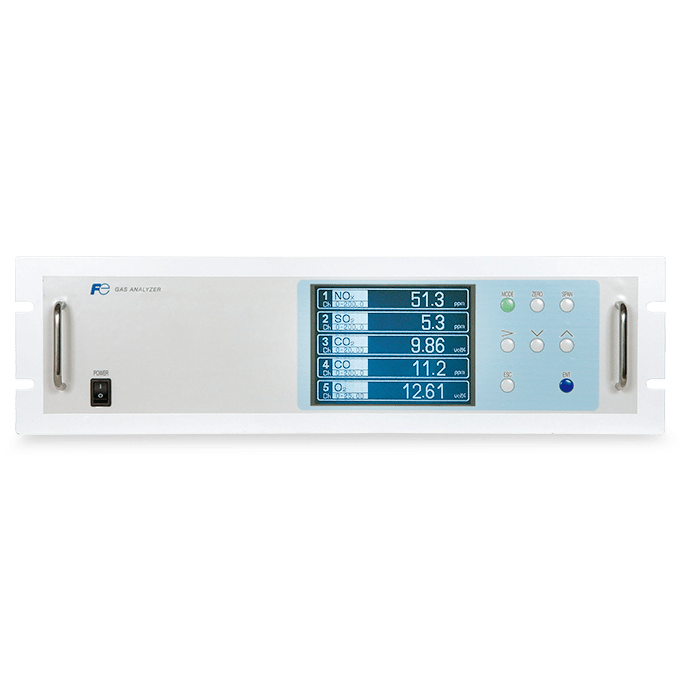

infrared gas analyser - ZPA - for marine applications

Measuring atmospheric emissions from ships

Fields of application

Monitoring ship exhaust emissions.

Benefits

  • ZPAanalyser withstands the most difficult marine environments
  • Easy on-board maintenance and calibration, even for unskilled crew members, saves time and training costs
  • A spare parts management program ensures the traceability of each component and its availability throughout the ship's journey.
  • All calibrations are automatic (Zero/Span)
Reference : ZPAMARINE
Please contact us

Features

This gas analyser for marine applications (ZPA) is used to measure the gas concentration of Nitrogen Monoxide (NO), Sulfur Dioxide (SO₂), Carbon Dioxide (CO₂), Carbon Monoxide (CO), Methane (CH₄), Oxygen (O₂). The compounds NO, SO2, CO2, CO and CH4 are measured by non-dispersive infrared, while O2 is measured by the electrochemical, paramagnetic or zirconia method.



Measurable componentsNO, SO2, CO2, CO, CH4 and O2
Measuring principleNon-dispersive infrared absorption method.
Single source and beam
NO, SO2, CO2, CO, CH4
Electrochemical or paramagnetic method (measuring element incorporated
in theanalyser) or zirconia method
O2
Repeatability±0.5% of full scale
Linearity1% of full scale
Before correction for atmospheric pressure (optional)
Zero drift±2% of full scale/week
Auto zero calibration required for
scale ≤ 500 ppm.
Scale drift±2% of full scale/week
Response time (for 90% of full scale)Electrical response: 1 to 15 sec
Between 10 and 30 sec including cell purge time. This time depends on the number of gases measured and their scales.
Power supplyVoltage100 V to 240 V AC
Scale range85 V to 264 V AC
Frequency50Hz/60Hz
Operating temperature-5°C to 45°C (40°C for 2 optical benches
at 200 VA AC)
Operating humidityMax. 90% RH (non-condensing)
HousingSteel for indoor mounting
ColorFront panel; light gray (PANTON 1C-F)
Display4-digit digital display
(LED backlit LCD)
Dimensions133 × 483 × 382 mm (HxWxD) ;
(19" rack mounting)
Weight11 kg

Documentation

Certificate: TUV QAL1 infrared gas analyser ZPA

Certificates Download

Certificate: UKCA ZPA infrared gas analyser

Certificates Download

Certificate: EU declaration of conformity ZPA infrared gas analyser

Certificates Download

Manual: ZPA infrared gas analyser

Manuals Download

Manual: ZPA infrared gas analyser Modbus communication

Manuals Download

Carrousel: Can traditional CEMS withstand marine conditions?

Carousel Download

datasheet : ZPA infrared gas analyser

Specifications Download

Brochure: gas analysers , reliable solutions for analysis

Brochures Download

Brochure: Measures for energy and the environment

Brochures Download

Technologies

  • infrared gas analyser NDIR

    infrared gas analyser NDIR

    Check out our range of infrared multi-gasanalysers for simultaneous and continuous extraction measurement of stack emissions.
