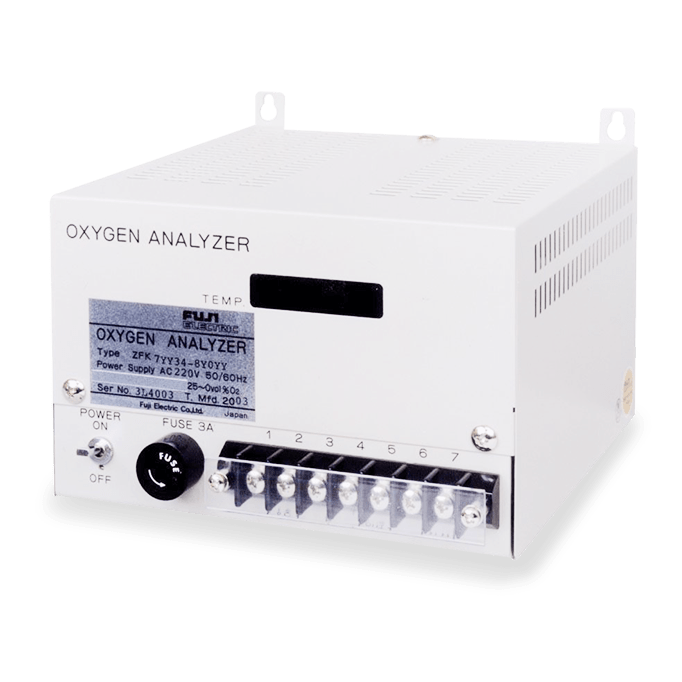

Extractive oxygen zirconia analyser - ZFK7

Zirconia oxygen measurement module for ZPA, ZRE and ZKJ analysers .

Fields of application

Ideal for controlling combustion in boilers, incinerators plants and industrial furnaces plants.

Benefits

  • Zirconia sensor for long life and excellent stability
  • Suitable for demanding conditions (shock, vibration, dust, etc.)
Catalogue number: ZFK7YYC4-8Y0YY
Public price 5709 €
Discounts available on request

Features

The ZFK7 module is an extractive oxygen analyser with zirconia technology. Connected to Fuji Electric ZPA, ZRE or ZKJ multi-gas analysers , it provides robust, long-lasting and reliable oxygen measurement on scales from 0 to 25% vol.



Repeatability≤ ± 0.5% of full scale
Linearity≤ ± 1% of full scale
Zero drift≤ ± 1% of full scale / week
Scale drift≤ ± 2% of full scale / week
Response timeApprox. 20 seconds (for 90% of response)
Sample flow0.5 ± 0.25 Limin
Input/output connectionsRc % or NPT
Power supplyVoltage100 to 115 Vac or 200 to 240 Vac
Frequency50 Hz/60 Hz
Max. rated power215 VA (at start-up)
65 VA (during normal operation)
HousingSteel housing for indoor use
DisplayTemperature indication (LED)
Temperature alarm outputContact 1 output from contact A,
Contact capacity 220 Vac, 1 A (resistive load)
Exterior dimensions141 (W) x 170 (H) x 190 (D) mm
WeightApprox. 3 kg



Zirconia oxygen sensor measuring ranges

Measurable componentO2 Oxygen
Scope0 to 25% vol



Documentation

Certificate: EU declaration of conformity ZFK7 extractive zirconia oxygen analyser

Certificates Download

Certificate: UKCA oxygen analyser zirconia extractive ZFK7

Certificates Download

Manual: Zirconia oxygen analyser ZFK7

Manuals Download

Brochure: In-situ zirconia oxygen analysis system, ideal for combustion control

Brochures Download

Brochure: gas analysers , reliable solutions for analysis

Brochures Download

Questionnaire: Application foranalyser O₂ zirconia

Questionnaire Download

Brochure: Measures for energy and the environment

Brochures Download

Technologies

  • extractive oxygen analyser ZrO2

    extractive oxygen analyser ZrO2

    Get reliable gas measurements with Fuji Electric's ZrO2 extractiveanalyser . This zirconia sensor connects to the ZRE and ZKJ external multi-gas analysers .
