Optical dust analyser - ZFDM-4

Measurement of dust concentration at emission

Fields of application

Continuous monitoring of particulate emissions, coal-fired boilers, biomass and other solid fuels, oil-fired boilers, diesel engines.

Benefits

  • Simple installation and low maintenance
  • Automatic fouling control and correction
  • Continuous, comprehensive self-diagnosis
  • Significantly longer maintenance intervals
  • Permanent measurement and compensation of fiber fouling
Catalogue number: FP-ZFDM-4-220
Public price 12184 €
Discounts available on request

Features

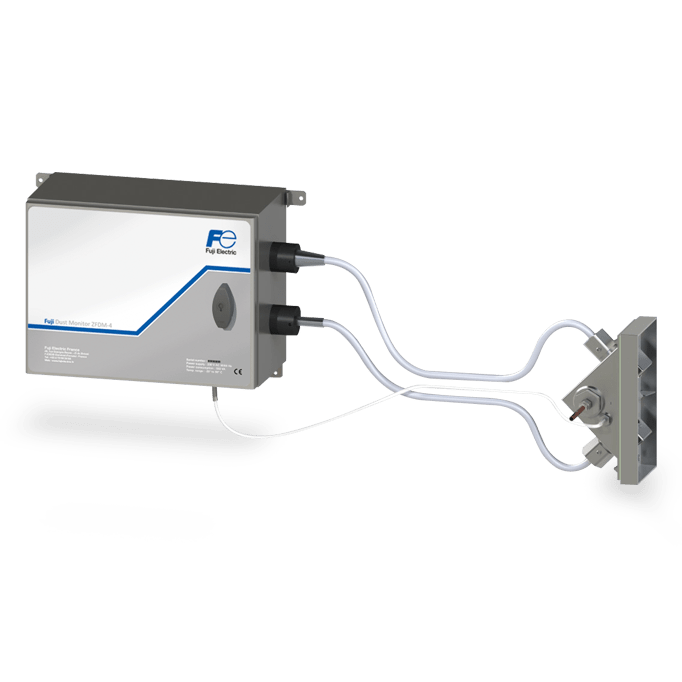

In line with regulatory developments, we now offer you our Fuji ZFDM-4 dust analyser .
This device retains its ease of installation, with its one-piece sensor suitable for a wide range of applications (coal, fuel oil, biomass, other solid fuels).
Self-monitoring for soiling and automatic continuous correction correct any measurement drifts.
The device is suitable for small to medium duct diameters, for very low to medium dust concentrations and for light to dark-colored particles. Electronic chopping of the LED beam ensures insensitivity to ambient light.



analysers
HousingEpoxy-painted steel (SS304L optional)
Power supply230 V / 115 V (+10/ -15 %) 50 Hz / 60 Hz
Power consumption50 VA
Operating temperature-20 to +50 °C
Chimney diameter400 mm to 8 m
Measurement range0 to 1000 mg/Nm3
Measurement scaleAdjustable, minimum 10 mg/Nm3
Display resolutionFrom 0.1 to 1 mg/Nm 3 depending on the scale
Dual measurement scaleAutomatic scale alternation
Analog outputs3 x 4-20 mA for 750 Ohms
Digital outputs4 programmable relays for scale, threshold, contamination level and general fault
CertificationsCE marking, QALI (EN14181:2014)
Scanner
Hull304L stainless steel
Heating elementElectric resistance 500 VA
Sweep air pressure/flow rate0.3 to 0.4 bar / 3 Nm3/h
Maximum flue gas temperature350°C (up to 700°C optional)
Automatic self-testsAir and temperature control
Weight4.8 kg
Optical fiber
End cap and sheath304L stainless steel
Standard length2,20 m
Permissible fiber temperature-20 to 220 °C

Documentation

Certificate: TUV QAL1 ZFDM optical dust analyser

Certificates Download

Manual: ZFDM-4 optical dust analyser

Manuals Download

Carrousel: Stressed as your dust analyser approaches QAL2?

Carousel Download

datasheet : ZFDM-4 optical dust analyser

Specifications Download

Brochure: gas analysers , reliable solutions for analysis

Brochures Download

Flyer: Reduce your costs while protecting the environment

Flyer Download

Brochure: Measures for energy and the environment

Brochures Download

Technologies

  • Optical dust measurement

    Optical dust measurement

    flue gas dust analyser . The ZFDM-4 is the right backscatter dustanalyser for your plant.

  • Dust measurement

    Dust measurement

    Do you need to monitor particle levels? Select the best technology for your dust measurement system.

Optical dust analyser - ZFDM-4

Public price 12184 €

Reference : FP-ZFDM-4-220
