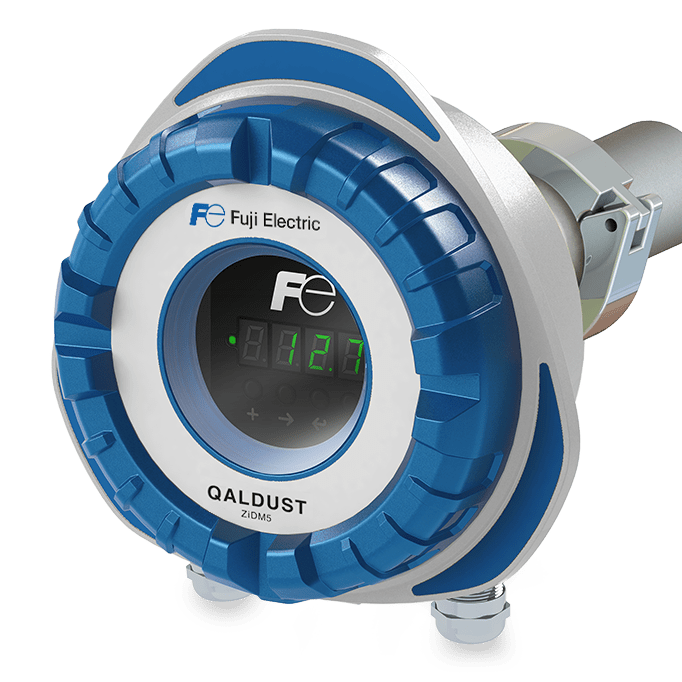

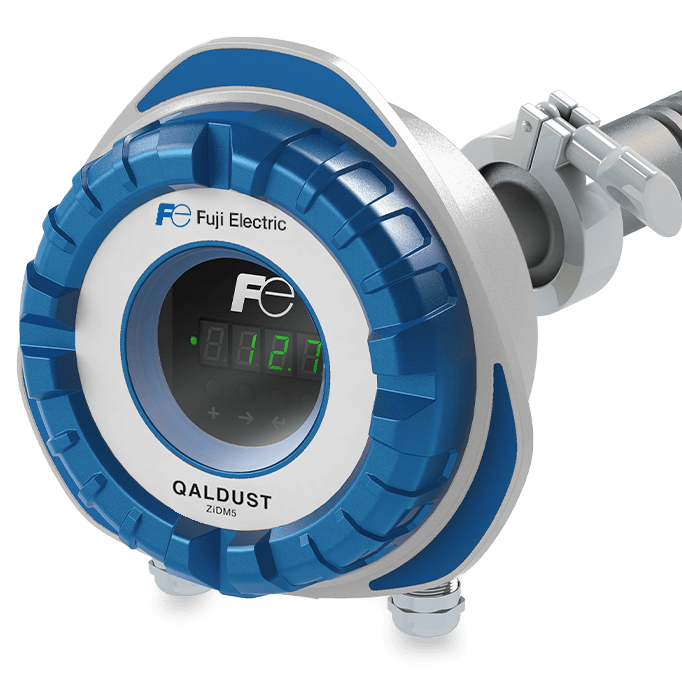

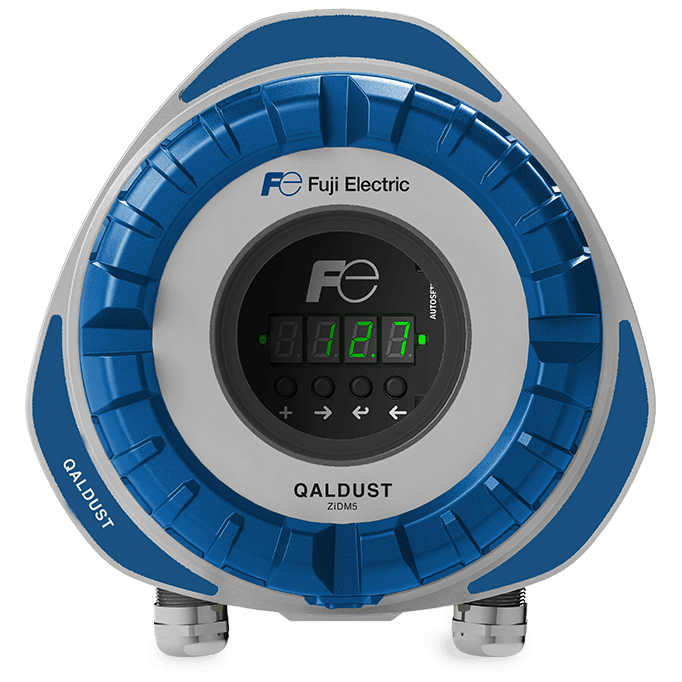

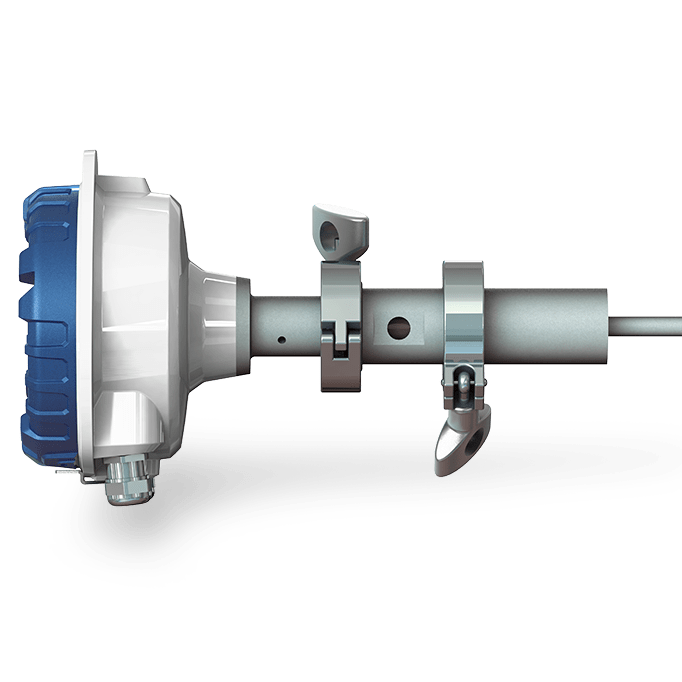

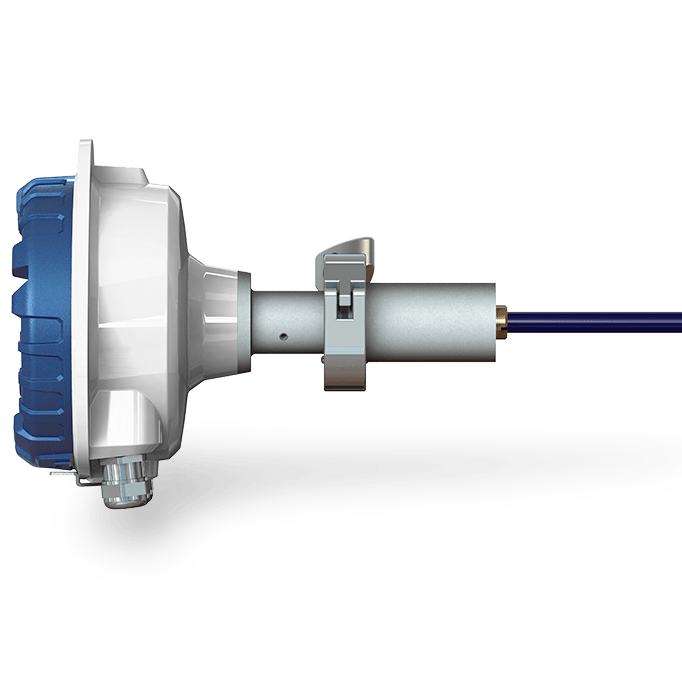

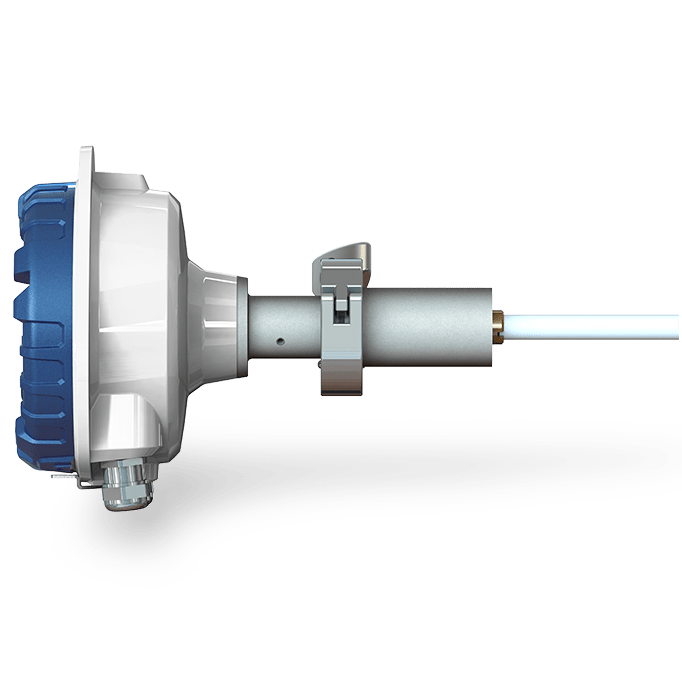

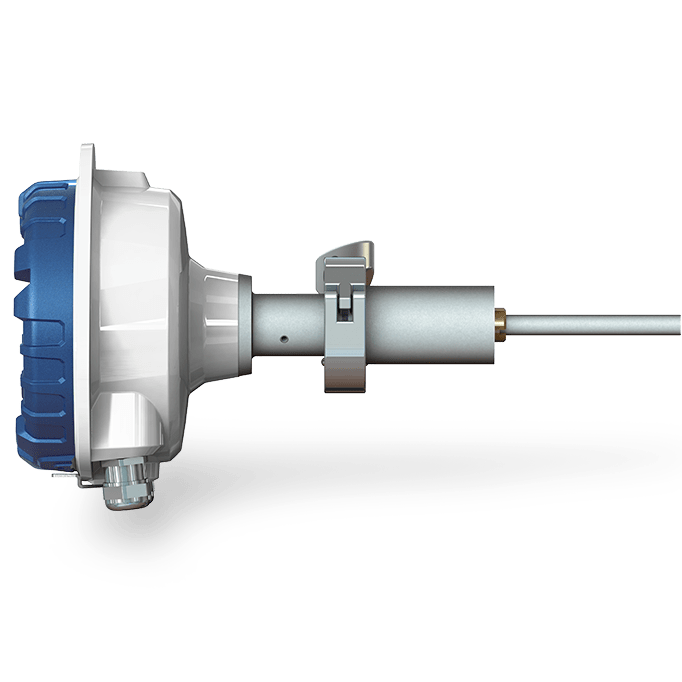

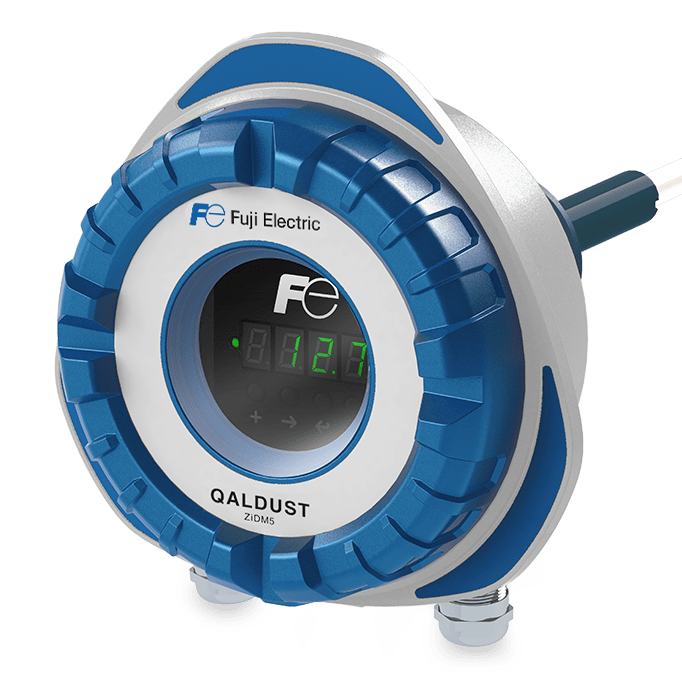

electro-inductive dust analyser - ZiDM-5 QALDUST

Electro-inductive dust analysis

Fields of application

Waste incineration, power generation, filtration processes, cement, pharmaceuticals, chemicals, wood and steel.

Benefits

  • Easy start-up and commissioning
  • Robust design for tough conditions
  • Proven technology
  • Precise measurement of dust levels
  • Extremely wide measuring range
  • Detection limit of 0.01 mg/m³.
  • Easy, multi-point calibration
  • Automatic zero and span checks
  • 4-20 mA, RS485, USB, two status relays and wireless communication (optional)
  • Local display, user interface and 3 color status LEDs
Reference : ZiDM-5
Please contact us

Features

Based on proven inductive electrification technology, the ZiDM series has a detection limit of 0.01 mg/m³ and retains its world-renowned reliability and robustness. The various functionalities available mean that the ZiDM series can be used for a wide variety of applications: emission measurement, industrial process control or filtration system monitoring.

This analyser can be installed on processes such as bag filters, cyclones, dryers or other dust recovery systems, to monitor particulate emissions and filter performance.

The ZiDM series is often used for process control in applications where dust levels must not exceed defined limits. The ZiDM series' built-in relays can be used as a dust level alarm signal. The mA output and RS485 interface make this instrument ideal for trend monitoring applications. A typical feature of Fuji Electric dust analysers is their very short response time. It enables early detection of malfunctions in the dust abatement process and prevents costly product loss.



QAL1-certified ZiDM-5 QALDUST emission dust analyser
Measurement objectsTotal suspended particulates (TSP)
Measuring principleInductive electrification
Measurement scaleDetection limit: 0.01 mg/m³.
Maximum scale up to several g/m³, depending on operating conditions
Certification range 0 ... 7.5 mg/m³, 0 ... 15 mg/m³, 0 ... 100 mg/m³
Protection classIP66
Power supply24 V DC ±10
100 ... 240 V AC ±10%, 50 / 60 Hz
Power consumptionUp to 10 W DC/AC
Output signals2 × independent SPDT dry-contact relays, max. 30 VDC / 5 A or 240 VAC / 5 A, φ = 1Active output loop 4...20 mA isolated, max. loop resistance 250 Ω
Communication interface2 x RS 485USB serial communicationRadio frequency (RF, requires optional RF antenna)
Communication protocolMRTU Modbus (with RS 485)Fuji Electric network (with USB, RF and RS 485)
HousingAluminum
Parts in contactProbe: Stainless steel (316L) Optional coated probe Insulation: Polyphenylene sulfide (Ryton R-4)
Weight1.5 kg
Ambient temperature-20 ... 50 °C
Ambient humidityRelative humidity max 95% (non-condensing)
Process temperatureMax. 300 °C, optional up to 700 °CMax. 250 °C with Teflon-coated probe
Process pressureMax. 600 kPa for temperatures up to 300 °CMax. 300 kPa for temperatures from 300 °C up to 700 °Cwhen a high-temperature process connection is used
Flow speedMin. 3 m/s, max. tested 40 m/s
Wireless* communicationUp to +23 dBm, user-adjustable
Frequency bands868 MHz, 15 channels915 MHz (license-free ISM band)
Transmission powerUp to +23 dBm, user-adjustable
Receiver sensitivity110 dBm
Communication protocolProprietary network protocol
Typical communication range (excluding optical range)868 MHz versionUp to 1,000 m in an urban environment** (in France)
