ATEX oxygen zirconia probe - ZFKX

In situ oxygen measurement

Fields of application

This analysis system is designed for demanding applications in potentially explosive atmospheres, such as refinery furnaces, petrochemical furnaces and large industrial boilers.

Benefits

  • Field-replaceable firewall
  • Compact and lightweight
  • Fast response (4-7 seconds)
  • Excellent reliability
  • Remote electronics and calibration
  • Probe certified ATEX/IECEx Zone1 IIB+H2 T3 Gb
Reference : ZFKX
Please contact us

Features

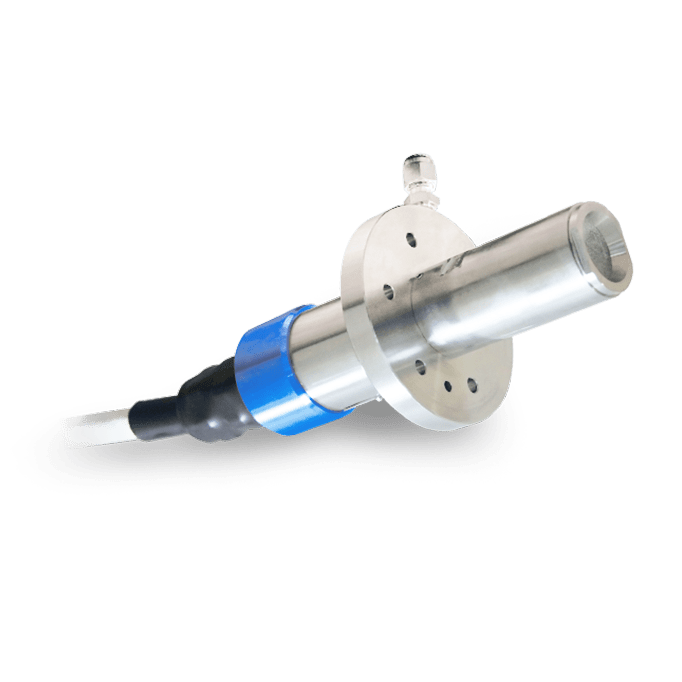

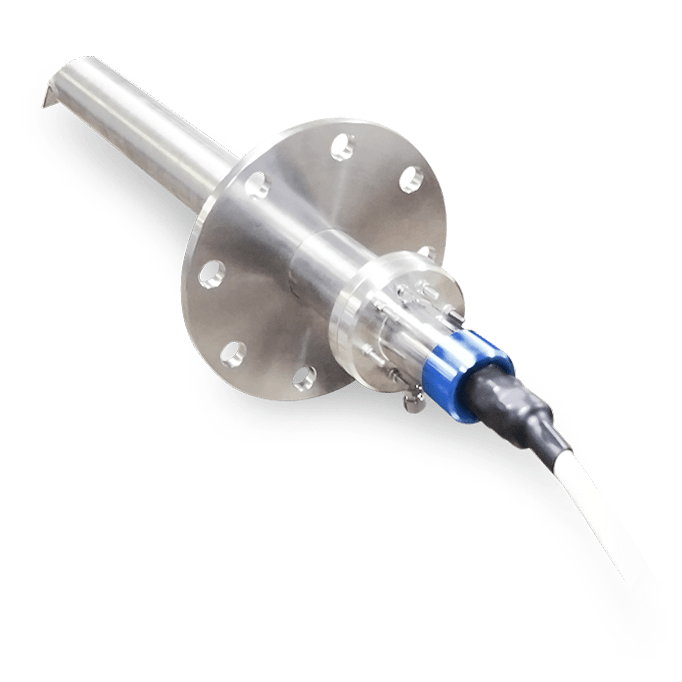

The in situ zirconia oxygenanalyser , designed for ATEX zones (refineries, petrochemical plants, boilers), enables precise combustion control.

Measuring the oxygen concentration in the effluent enables the air/fuel ratio characterizing combustion to be monitored.

This is essential for controlling efficiency and ensuring process safety. This analysis system is designed for demanding applications in potentially explosive atmospheres:

  • Refining furnaces
  • Petrochemical furnaces
  • Large industrial boilers



The ZFKX detector is ATEX and IECEx certified and can be used in environments classified as Zone 1 IIB+H2 T3 Gb.

ApplicationO2 measurement in non-combustible gas mixtures
Industrial heat production in refineries
Petrochemical reactor furnaces
Large combustion plants
Measuring principleIn situ zirconia sensor
Scale0...2...50% vol O2 (user-configurable)
Repeatability≤ ± 0.5% PE
Linearity≤ ± 2 % PE
Response time (for 90%)4 s . ... 7 s
Analog output4-20 mAcc or 0-1 Vcc
Contact outputs6 points, SPST-NO contact: High/low limit alarm, maintenance in progress, purging in progress, calibration in progress, analyser fault
Contact inputs3 dry contacts: select from 7 options
DisplayBacklit LCD
CommunicationRS-485 (Modbus®)
Optional functionsCombustion efficiency display, declogging, automatic calibration, selection valve, flow meter
Controller installationPanel mounting
Cable length between controller and detector≤ 50 m
Supply voltage100-120 VAC or 200-240 VAC, 50/60 Hz



Documentation

Manual: ZKMX zirconia oxygen controller and ZFKX ATEX zirconia oxygen probe

Manuals Download

datasheet : ZKMX controller and ZFKX zirconia oxygen probe for ATEX zones

Specifications Download

Questionnaire: Application foranalyser O₂ zirconia

Questionnaire Download

Flyer : Reliable and precise oxygen measurement in hazardous areas

Flyer Download

Brochure: Measures for energy and the environment

Brochures Download
