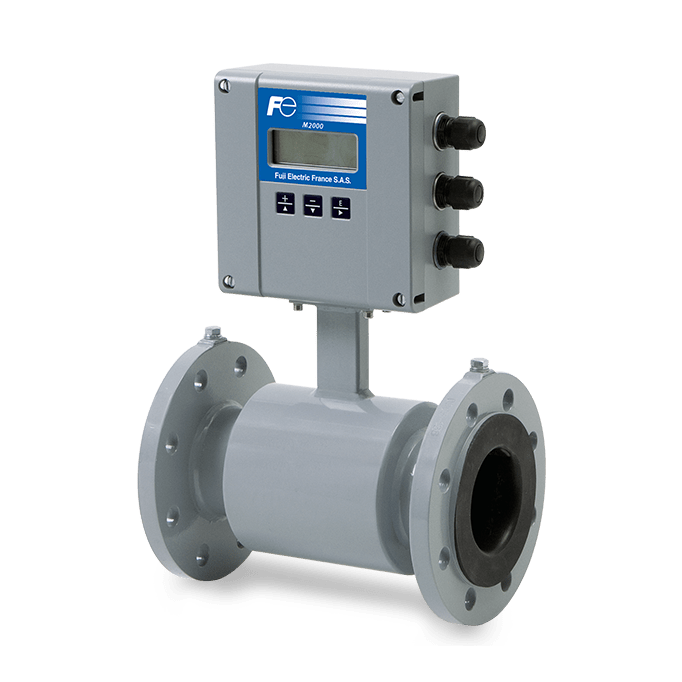

Electromagnetic flow meter M2000

Electromagnetic flow measurement

Fields of application

II is the best choice for a wide variety of industrial applications, particularly in the water and wastewater treatment sector.

Features

Can be used with all measuring tubes
Accuracy: ±0.2% of measured flow rate
Flow rate scale: 0.03 - 12 m/s
DN 6 - DN 2000 ( 1/4" - 80")
IP 67 protection
ModBus®, HART™, M-Bus, Profibus DP interfaces
ACS, OIMLR491 and MID MI-001 approvals
Integrated data-logging function (Datalogger)

Reference : M2000 Please contact us

Specifications
Documentations
Technologies

Specifications

The M2000 converter is one of the best solutions for bidirectional flow measurement of liquids with conductivities > 5 μS/cm (> 20 μS/cm for demineralized water).

Accurate, the M2000 is easy to use and can be adapted to a wide range of industrial applications. The 4-line backlit LCD display provides simultaneous indication of measured flow rate, totalization and all information, including alarm messages. The converter comes as standard with a current output, 4 programmable logic outputs, an AC or DC power supply and an RS232 Modbus ® interface.

Powerful internal self-test functions enable continuous diagnostics of the converter and associated sleeve, ensuring safe operation.

Power supply	85 - 265 VAC, 45 - 65 Hz, less than 20 VA or optional 9-36 VDC
Analog output	0/4 - 20 mA, less than or equal to 800 ohms, flow direction is indicated on a separate logic output
Logic/frequency output	2 open-collector outputs active 24Vdc/20mA or passive 30Vdc/100mA max. 10 kHz 2 SSR outputs max. 48Vac/500mA, 1 kHz or passive open collector max. 30Vdc/100mA, 10 kHz
Logic output functions	Min/max alarm, preselection, flow direction, error message
Empty tube detection	Separate electrode
Programming	3 front panel buttons
Interface	RS232 Modbus® RTU as standard RS485 Modbus® RTU, M-Bus, HART™ & Profibus-DP optional
Flow scale	0.03 - 12 m/s
Accuracy	Greater than or equal to 0.5 m/s better than ±0.2% of measured flow value Less than 0.5 m/s ±1.25 mm/s of measured flow rate
Repeatability	0,1%
Flow direction	two-way
Pulse length	Programmable up to 10 s
Outputs	Short-circuit protection and galvanic isolation
Low-flow shutdown	0-10%
Display	LCD, 4 lines / 20 characters, backlit, current flow rate, 2 totalizers, status display
Housing	Cast aluminum
Protection	IP67
Cable gland	Power supply and outputs: 3 x M20
Sensor cable	Signal to detector cables: M20
Ambient temperature	-20°C to +60°C
