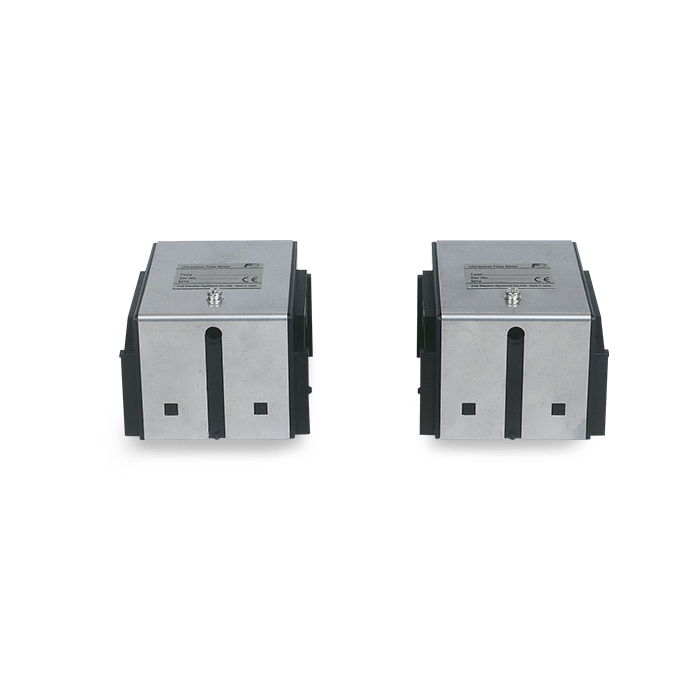

Sensor - FSSE - diameter 200 to 6000 mm for Time Delta-C ultrasonic flow meter

Ultrasonic flow measurement

Fields of application

Non-intrusive ultrasonic flowmeters are used in a wide range of industrial applications: food and beverage, water and wastewater, agriculture and irrigation, water management in buildings for energy savings, commissioning and maintenance of buildings (hotels, hospitals, etc.), water parks, swimming pools and aquariums, and the semiconductor industry.

Benefits

  • High measurement accuracy: ±1.0%.
  • Fast response time: 0.2 sec
  • Compact size: 142 x 170 mm
  • IP66 or IP67 (optional)
  • Output signals: 4-20 mA, pulse output and alarm output
  • Optional RS485 MODBUS™ communication
Reference : FSSE
Public price 2517 €
Discounts available on request Configure my product

Configure product

Features

This fixed-mount ultrasonic flowmeter applies a measurement method based on transit time difference. By taking advantage of the latest electronic advances and digital signal processing technology, we have developed a compact, lightweight device with enhanced accuracy and ease of use, while retaining excellent immunity to air bubble formation. Communication capability (MODBUS: optional) is also available.



Pipe diameter200 to 6,000 mm
Pipe materialPlastic (PVC, etc.)
Metal (steel, copper, aluminum, etc.)
PP, PVDF
Liquid temperature-40 °C to 80 °C
Mounting methodV or Z
Sensor typeFSC, FSV

Documentation

datasheet : Fixed ultrasonic flowmeter Time Delta-c FSV and FSVL series 3 extended converters FSS sensors FLY cables

Specifications Download

Manual: FSS series sensors and FLY cables for ultrasonic flowmeters

Manuals Download

Manual: Calculating FSS series sensor spacing for ultrasonic flowmeters

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSVL converter

Manuals Download

Manual: Time Delta-C fixed ultrasonic flowmeter FSV converter version 3

Manuals Download

Manual: Time Delta-C fixed ultrasonic flowmeter FSV series 3 converter FSS sensors FLY cables communication functions

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-C Extended FSV and FSVL converters FSS sensors FLY cables Advanced communication features

Manuals Download

Manual: Fixed ultrasonic flowmeter Time Delta-c Extended FSV and FSVL converters FSS sensors FLY cables

Manuals Download

Software: Calculation of FSS sensor spacing for ultrasonic flowmeters

Software Download

Brochure: Measures for energy and the environment

Brochures Download
