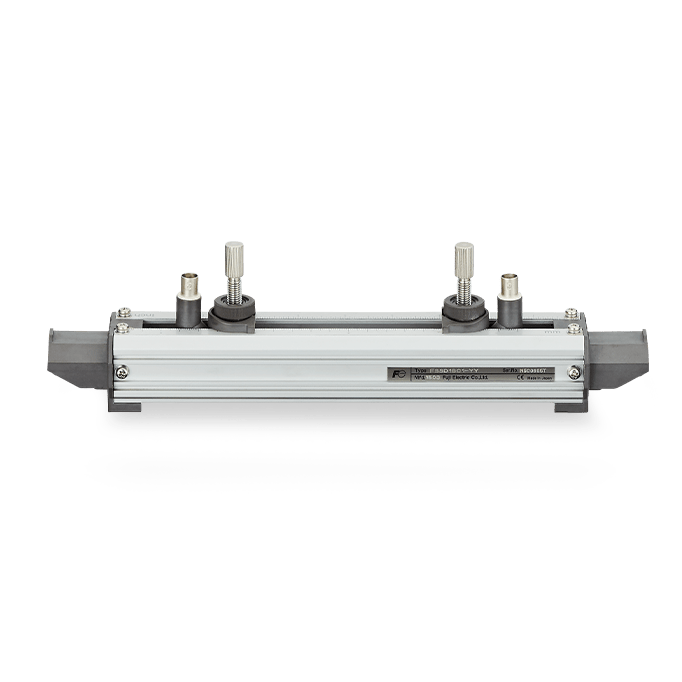

Sensor - FSSD - diameter 13 to 300 mm for Time Delta-C ultrasonic flow meter

Ultrasonic flow measurement

Fields of application

Detect leaks of any liquid in a pipeline, temporary measurement of liquid flow for maintenance purposes in pipes of any size, volumetric flow in clean liquids and those with small amounts of suspended solids or aeration such as surface water or raw sewage, non-invasive calibration of the flow rate of an existing electromagnetic flowmeter, pump flow control and measurement and balancing of district heating networks.

Benefits

  • High measurement accuracy: ±1.0%.
  • Fast response time: 0.2 sec
  • Compact size: 142 x 170 mm
  • IP66 or IP67 (optional)
  • Output signals: 4-20 mA, pulse output and alarm output
  • Optional RS485 MODBUS™ communication
Reference: FSSD
Public price 1588 €
Discounts available on request Configure my product

Configure product

Features

This fixed-mount ultrasonic flowmeter applies a measurement method based on transit time difference. By taking advantage of the latest electronic advances and digital signal processing technology, we have developed a compact, lightweight device with enhanced accuracy and ease of use, while retaining excellent immunity to air bubble formation. Communication capability (MODBUS® : optional) is also available.



Pipe diameter13 to 300 mm
Pipe materialPlastic (PVC, etc.)
Metal (steel, copper, aluminum, etc.)
PP, PVDF
Liquid temperature-40 °C to 100 °C
Mounting methodV
Sensor typeFSC, FSV
