How air flow meters help enhancing wastewater aeration system?

Air flow meters are essential for improving efficiency in wastewater treatment plants, as they directly influence both operational costs and the overall quality of treatment by ensuring optimal air flow control during aeration.


Summarize this article with :


Key points

Air flow meters are important in wastewater treatment where they measure and control airflow in aeration processes, ensuring efficiency and supporting microbial growth for the biodegradation of contaminants.

Maintaining precise air flow measurement is essential for balancing oxygen levels in aeration systems, reduce energy costs and facilitating the efficiency of bacteria in breaking down wastewater.

Advancements in sensor technology and smart monitoring systems are enhancing air flow meter reliability and precision, leading to more effective wastewater treatment and smarter facilities management.


Understanding industrial wastewater treatment system

understanding the different stages of treatment

Industrial wastewater treatment systems are designed to remove contaminants from water used in industrial processes before it is discharged into the environment or reused. These systems are essential to comply with environmental regulations, protect natural water bodies, and conserve water resources.

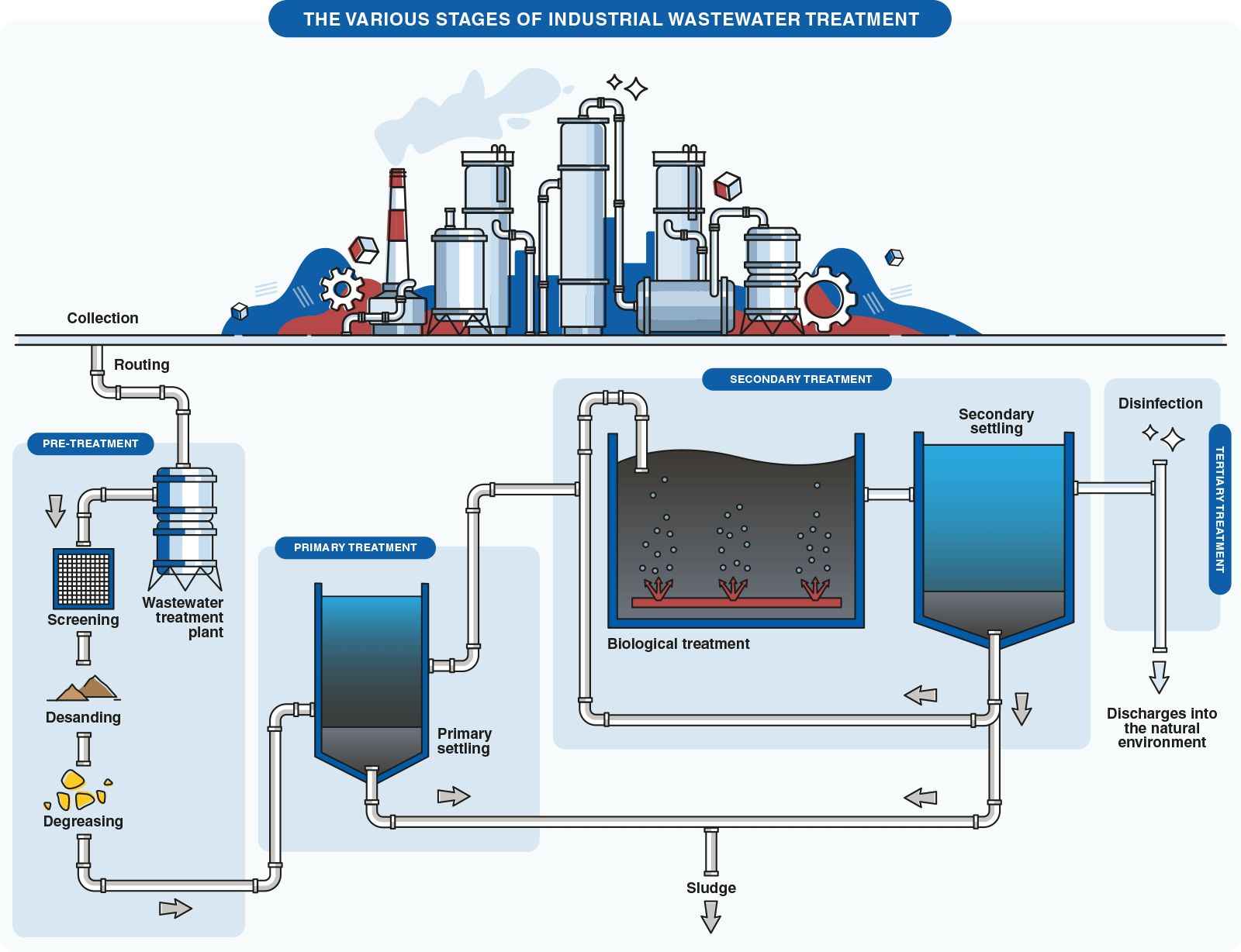

Typically, the treatment process includes several stages:

  • Pre-treatment: Removal of large solids, oils, and greases through screening or sedimentation.
  • Primary treatment: The use of separate settling tank or clarifier allows heavier solids to settle and lighter materials to float, which are then removed.
  • Secondary treatment: Biological processes, such as activated sludge or biofilm reactors, use microorganisms to decompose dissolved and suspended organic matter.
  • Tertiary treatment: Advanced filtration, chemical treatments, or membrane technologies remove remaining nutrients, pathogens, and contaminants to produce high-quality effluent.
different stages of industrial wastewater treatment diagram en
minimize impact on nature

Air flow meter functionality

The main aim of these systems is to minimize the impact on nature and ensure that the treated water meets regulatory standards for depollution, discharge into the natural environment or safe reuse.

Wastewater treatment systems are essential in a wide range of industries. These include food processing, chemical and pharmaceutical production, paper and textile manufacturing, metallurgy, petrochemical operations and the construction industry.

Water treatment plants, also known as sewage treatment plants or wastewater treatment plants, also play an essential role in urban and industrial areas managed by public and local authorities. By guaranteeing compliance and environmental sustainability, these systems adapt to the specific needs and effluents of each sector.


Importance of air flow meters in aeration process

importance of air flowmeters in the aeration basin

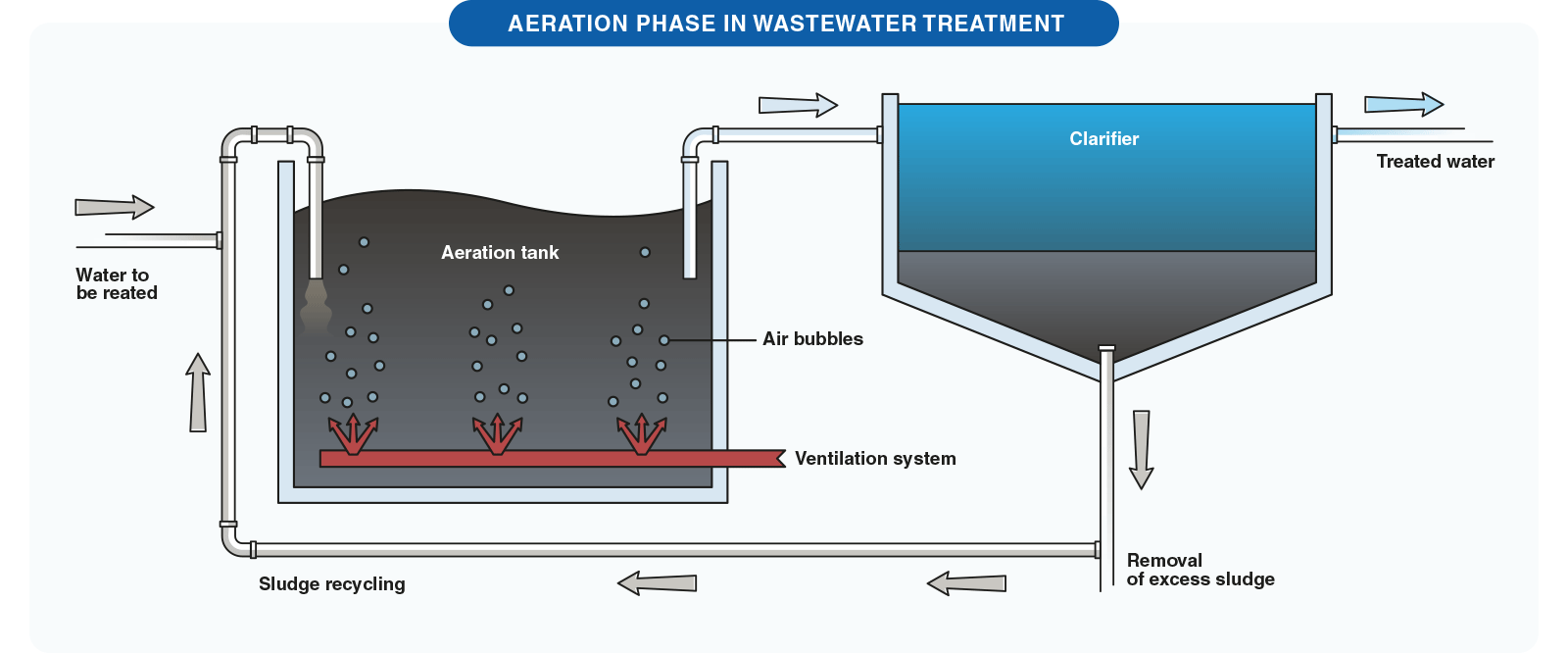

Air flow meters are essential to the aeration stage of wastewater treatment. They ensure a stable and accurate air supply in the aeration tank, also known as the aeration basin. This steady flow of oxygen is crucial for supporting the biological reactions of the activated sludge process. Aeration also helps to reduce levels of hydrogen sulfide and ammonia in wastewater.

During this process, micro-organisms thrive in oxygen-rich conditions and break down the organic pollutants present in wastewater. By maintaining optimal oxygen levels, air flow meters improve the efficiency of microbial activity, help reduce overall energy consumption and prevent odorous and incomplete pollutant conversions under septic conditions. Their role is to maintain aeration system performance and guarantee the overall efficiency of secondary treatment.


Air flowmeters for wastewater treatment

By measuring and regulating the air supplied during the aeration phase, air flow meters guarantee a constant supply of oxygen. This steady flow of oxygen is essential to support microbial activity, which is at the heart of the biological treatment process.

Without adequate and uniform oxygenation, micro-organisms cannot effectively break down organic contaminants, reducing treatment efficiency.

air flowmeter functionality

In water treatment systems, air flowmeters fulfil two essential functions.

First and foremost, they monitor the volume and velocity of air delivered to the aeration basins. These data form part of the routine control parameters, ensuring that air flow remains within optimum ranges.

Secondly, they provide precise measurement data that enable control systems (such as valves or fan speed controllers) to regulate the air supply. In this way, air flow meters contribute to stable ventilation performance and energy efficiency.

Understanding these key functions is the key to choosing the right type of air flow meter for wastewater aeration systems.

aeration basin operation wastewater treatment

Types of flow meters used in wastewater aeration

Several types of air flow meter are used in wastewater aeration to meet different needs. Each technology is based on specific measurement methods, adapted to plant constraints and performance objectives.

type of flowmeter used in aeration

Differential pressure flow meters,when combined with a primary element such as a Pitot tube or orifice plate, operate by creating a controlled restriction in the air circuit. This restriction generates a measurable pressure drop, which is directly proportional to the flow rate. These flow measurement instruments are widely used in industrial environments, thanks to their robust design and compatibility.

Although these systems are cost-effective and widely deployed, their performance can be affected by factors such as dirt build-up, corrosion and changes in fluid conditions (temperature, pressure). Correct installation, regular maintenance and appropriate selection of the primary element are essential to guarantee measurement accuracy and system longevity.

direct flow measurement capability

Thermal mass flowmeters are another common option, particularly appreciated for their ability to measure air mass flow directly without the need for pressure or temperature compensation. They work by detecting heat loss from a heated sensor as air passes over it. The amount of heat lost is directly proportional to the mass of air passing through the flowmeter. These flowmeters are particularly well suited to applications requiring high sensitivity and stable, reproducible measurements over a wide range of flow rates. However, they can be affected by contamination or condensation in harsh environments, requiring periodic cleaning and calibration.

ultrasonic flowmeter type

Ultrasonic air flow meters are a modern alternative offering high accuracy without intrusive mechanical parts. They operate by sending ultrasonic signals between two sensors; the time taken for the signal to travel upstream and downstream determines the flow rate. These flowmeters are particularly effective in environments where flow conditions vary and minimum pressure loss is required. What's more, they are easy to install, require little maintenance or servicing, and are equally suited to new and upgraded wastewater aeration systems. Their precision makes them a reliable solution for optimizing energy efficiency and aeration control.


Optimized aeration with precise air flow measurement

Precise air flow measurement furnishes accurate and consistent measurements of air flow, enabling enhanced control of the aeration process. This not only leads to increased efficiency but also results in significant energy conservation.

However, to maintain this precision, special attention must be paid to two essential aspects:

choosing the right flowmeter for air
oxygen level balancing

Balancing oxygen levels

In wastewater treatment, it is essential to maintain a balanced oxygen level as it offers valuable information on water quality, and enhances the efficiency of bacteria in breaking down the wastewater. Without sufficient oxygen, bacteria cannot biodegrade organic matter effectively, leading to slow and odorous degradation.

Air flow meters are used to quantify the volume of air in wastewater treatment to help maintain the correct oxygen balance during the aeration phase.

reduce energy costs

Reduce energy costs

In wastewater treatment, the main objective is energy efficiency, and air flowmeters play an important role in achieving this goal.

They help reduce energy costs by :

  • Precise measurement and monitoring of air flow to aeration basins
  • Facilitates control and optimization of the aeration process
  • This results in significant energy savings

Given that aeration typically accounts for 40-60% of total energy consumption in wastewater treatment plants, optimizing air flow is a major lever for savings. By enabling precise monitoring and better control, the use of air flow meters can help reduce energy consumption by up to 25%, while guaranteeing the efficiency and stability of biological treatment.


Integrating ultrasonic air flow meters into existing water treatment systems

integration of ultrasonic flowmeters

The overall performance and efficiency of the secondary treatment process can be further enhanced by integrating air flow meters.

Ultrasonic air flow meters, such as Fuji Electric's FWD-A series, are designed to integrate accurately and robustly into existing wastewater treatment systems. This ultrasonic flowmeter is easy to install and adapts to the various pipe configurations found in wastewater treatment plants.

Older aeration systems often lack accurate instrumentation for monitoring air flow. Installing FWD-A ultrasonic air flow meters enables operators to gain real-time insights into flow rates, even at low velocities. Their design allows for efficient upgrades of legacy infrastructure.

Discover Fuji Electric ultrasonic air flow meters


Case studies: air flow meters in action

Case studies demonstrating the successful implementation of Fuji Electric ultrasonic air flow meters are invaluable in illustrating their benefits in both small-scale and large-scale wastewater treatment applications.

small-scale success story

Small-scale success stories

A small wastewater treatment plant in a rural community was having difficulty maintaining constant aeration due to fluctuating low air flows. By integrating FWD-A ultrasonic flowmeters, the plant was able to obtain precise measurements, even at low speeds.

This has enabled us toimprove control of the aeration stages and better support microbial activity.

As a result, processing performance has stabilized, operational supervision has become easier and maintenance requirements have been considerably reduced.

large-scale industrial applications

Large-scale industrial applications

A large industrial wastewater treatment plant operating at high flow rates has adopted advanced ultrasonic flowmeters - FWD-A toimprove its energy efficiency.

Ultrasonic flowmeters enabled precise, real-time monitoring of the vast aeration basins. Thanks to this data, operators were able to optimize the oxygen supply, ensuring adequate support for the sludge and wastewater treatment process.

Over time, the plant has achieved energy savings of up to 18%, while maintaining high processing standards within the plant's operational constraints.

Summary

Understanding the operation and importance of ultrasonic flowmeters gives you a clearer picture of the role they play in improving wastewater treatment efficiency. Whether you operate a small plant or manage large-scale industrial applications, a flowmeter is a flow measurement instrument that enables you to optimize the aeration process, balance oxygen levels, reduce energy costs and improve overall system performance.

optimizing the aeration process

Frequently asked questions - Air flowmeters

What is the purpose of an air flow meter?

An air flow meter measures the key characteristics of air movement in a tube, including flow rate, pressure and temperature. It provides both volumetric and mass flow rates of air per unit time, providing accurate data for monitoring and control.

What's the best instrument for measuring airflow?

The best way to accurately measure air flow is to use an ultrasonic flowmeter. This technology measures air speed and velocity using two sensors placed on either side of the flow.

In addition, ultrasonic flowmeters offer many advantages that make them the preferred solution for air flow measurement:

  • Precise measurement even of very low flow rates
  • Automatic compensation of pressure and temperature variations
  • Wide measuring range for various applications
  • Low maintenance thanks to robust sensor technology
  • Elimination of pressure losses, promoting energy-efficient ventilation systems

Why is aeration used in wastewater treatment?

Aeration is used in wastewater treatment to supply oxygen to bacteria, which is necessary for the biodegradation of organic contaminants present in wastewater. This process promotes the natural decomposition of organic matter through the use of oxygen by the bacteria.

How can air flowmeters help reduce energy costs in wastewater treatment?

Air flow meters help reduce energy costs in wastewater treatment by accurately measuring and monitoring the air flow to aeration tanks, enabling better control and optimization of the aeration process, and therefore energy savings.


Optimized wastewater treatment thanks to an adapted air flow meter

optimizing wastewater treatment

Air flow meters play an essential role in the implementation of reliable, cost-effective wastewater treatment. Whether monitoring the oxygen supply to aeration tanks or supporting the sludge and wastewater treatment process, they make a significant contribution to energy efficiency and treatment accuracy.

Choosing advanced technologies such as ultrasonic air flow meters ensures reliable, high-precision monitoring for both small and large-scale installations. To help you identify the ultrasonic air flow meter best suited to your wastewater treatment system, you can rely on the experts at Fuji Electric to provide personalized assistance and technical advice tailored to your company's specific needs.
